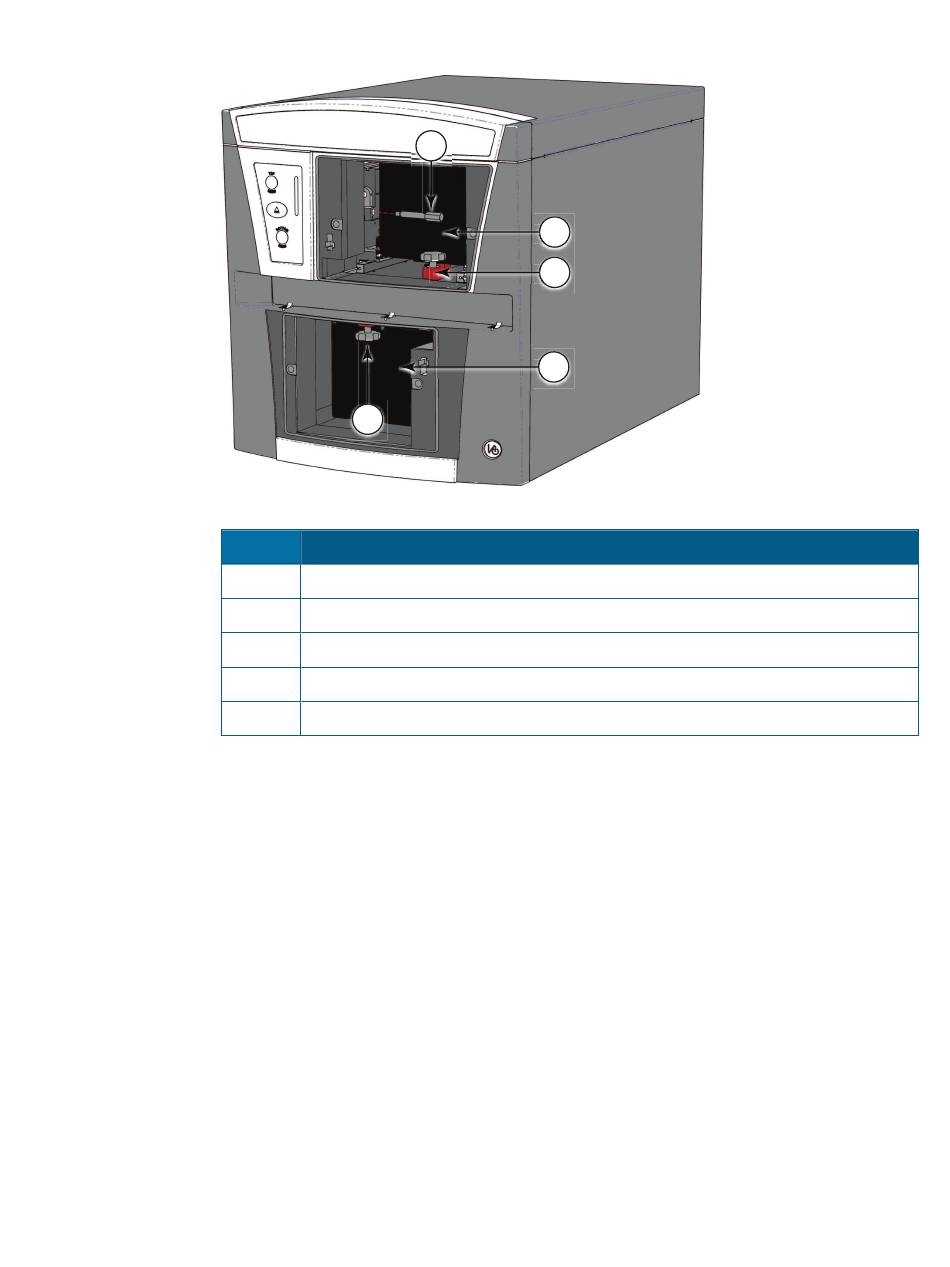

Figure 3-5: PMT Shutter and Detection Cartridge Drawer Transport Locks
Item
1
2
3
4
5
4. Turn the top detection cartridge drawer transport lock counter-clockwise until it is free of
the threaded hole in the floor of the drawer compartment.
5. Gently slide the top detection cartridge drawer forward until it is outside of the main
instrument.
5014038 E
1
5
Description
PMT shutter transport lock
Top detection cartridge drawer
Top detection cartridge drawer transport lock
Bottom detection cartridge drawer
Bottom detection cartridge drawer transport lock
Chapter 3: Unpacking and Setting Up the Instrument
2
3
4
