3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS
AND WIRING

[1] WIRING

Tractor Manuals Scotland - Please Do Not Copy
Tractor Manuals Scotland
To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in handling
electrical parts and wiring.
IMPORTANT
• Check electrical
connection every year. To this end, educate the customer to
do his or her own check and at the same time recommend
the dealer to perform periodic check for a fee.
• Do not attempt to modify or remodel any electrical parts and
wiring.

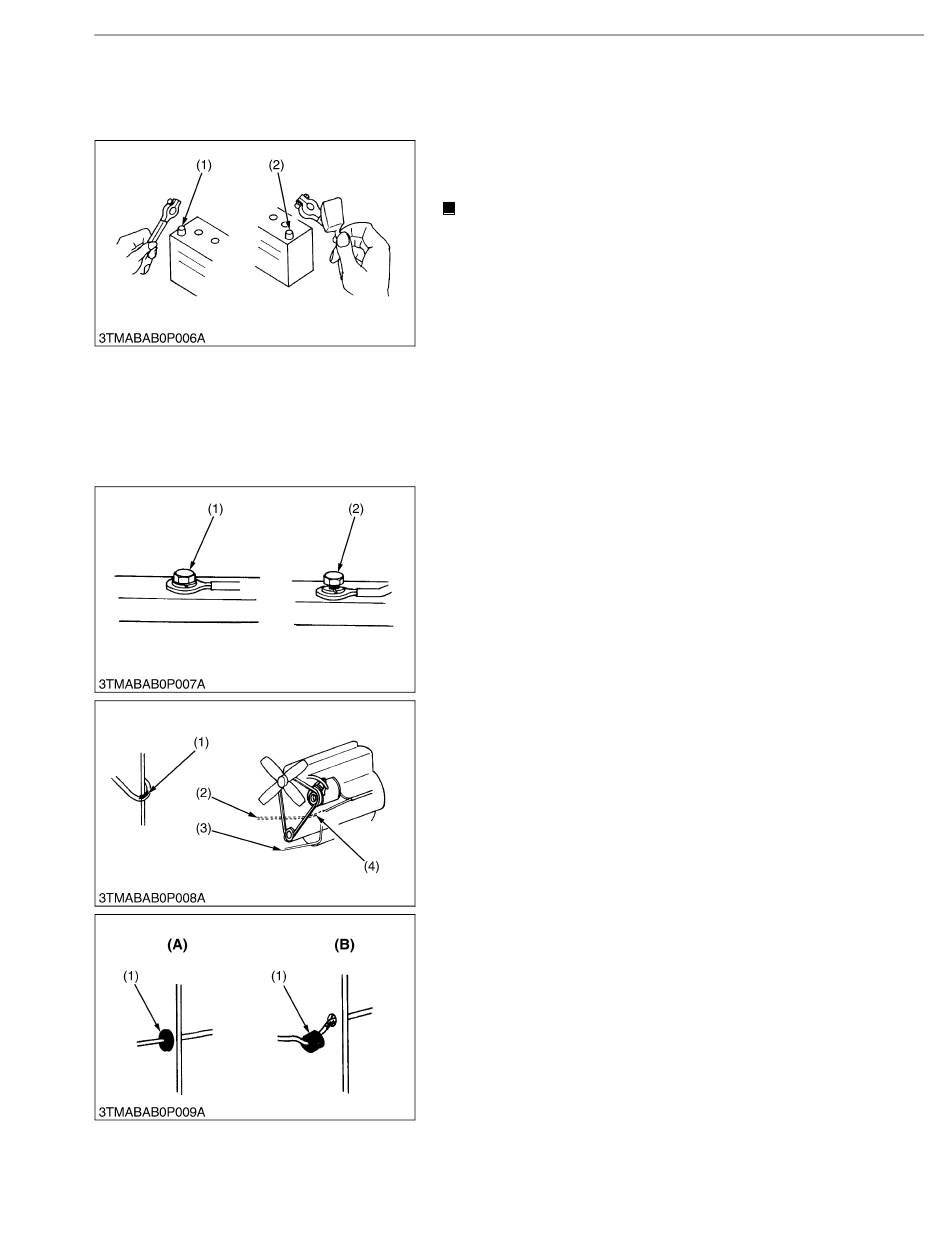

• When removing the battery cables, disconnect the negative
cable first. When installing the battery cables, connect the
positive cable first.
(1) Negative Terminal
• Securely tighten wiring terminals.
(1) Correct
(Securely Tighten)
• Do not let wiring contact dangerous part.
(1) Dangerous Part
(2) Wiring (Incorrect)
• Securely insert grommet.
(1) Grommet
G-3
wiring for damage
(2) Positive Terminal
(2) Incorrect
(Loosening Leads to Faulty Contact)
(3) Wiring (Incorrect)
(4) Dangerous Part
(A) Correct
(B) Incorrect
KiSC issued 08, 2007 A
G GENERAL
and loosened
W1011114
W1011216
W1011313
W1011388
