3 Using the Source Functions
Specify if the Arb should repeat, either continuously or only for a specified repeat count. A repeat
count of 1 runs the Arb once.
Step 3 – Exporting or importing User-defined Arb data

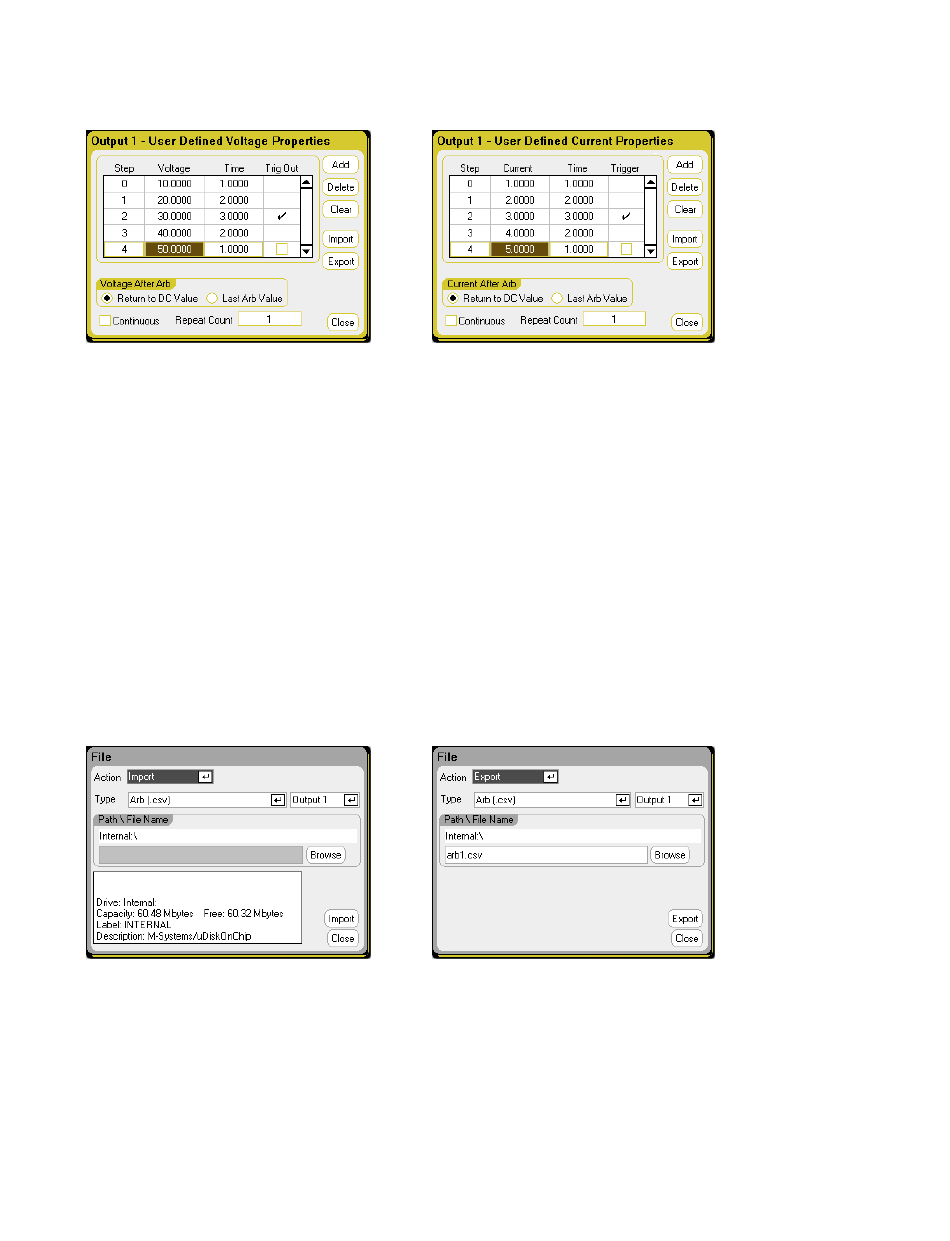

After you have configured the User-defined Arb, you can use the Export button to save the Arb list to a
file. Conversely, if you have previously created or saved a User-defined data file, you can use the
Import button to import the Arb list.
Refer to Importing and Exporting Arb Data later in this section for information on how to create .csv
current or voltage data files.
Select the Arb.csv file type format. When importing, specify the output on which the User-defined Arb
will run. When exporting, specify the output from which you want to export the Arb.
Under Path/Filename, click Browse and specify the location where the import file is located or where
the export file will be placed. Internal:\ specifies the instrument's internal memory. External:\ specifies
the Memory port on the front panel.
Select Import to import the file. Select Export to export the file.
Step 4 – Select the trigger source:
Press the Arb key, then select the Trigger Source field. The same trigger source will be used to trigger
all of the arbitrary waveforms.
Arb Run/Stop selects the front panel Arb Run/Stop key as the trigger source. This means that the Arb
will be triggered as soon as you run it. BNC Trigger In selects the rear trigger input BNC connector as
the trigger source. Remote command selects a remote interface command as the trigger source.
