3 Using the Source Functions
Step 3 – Select the Trigger Source:

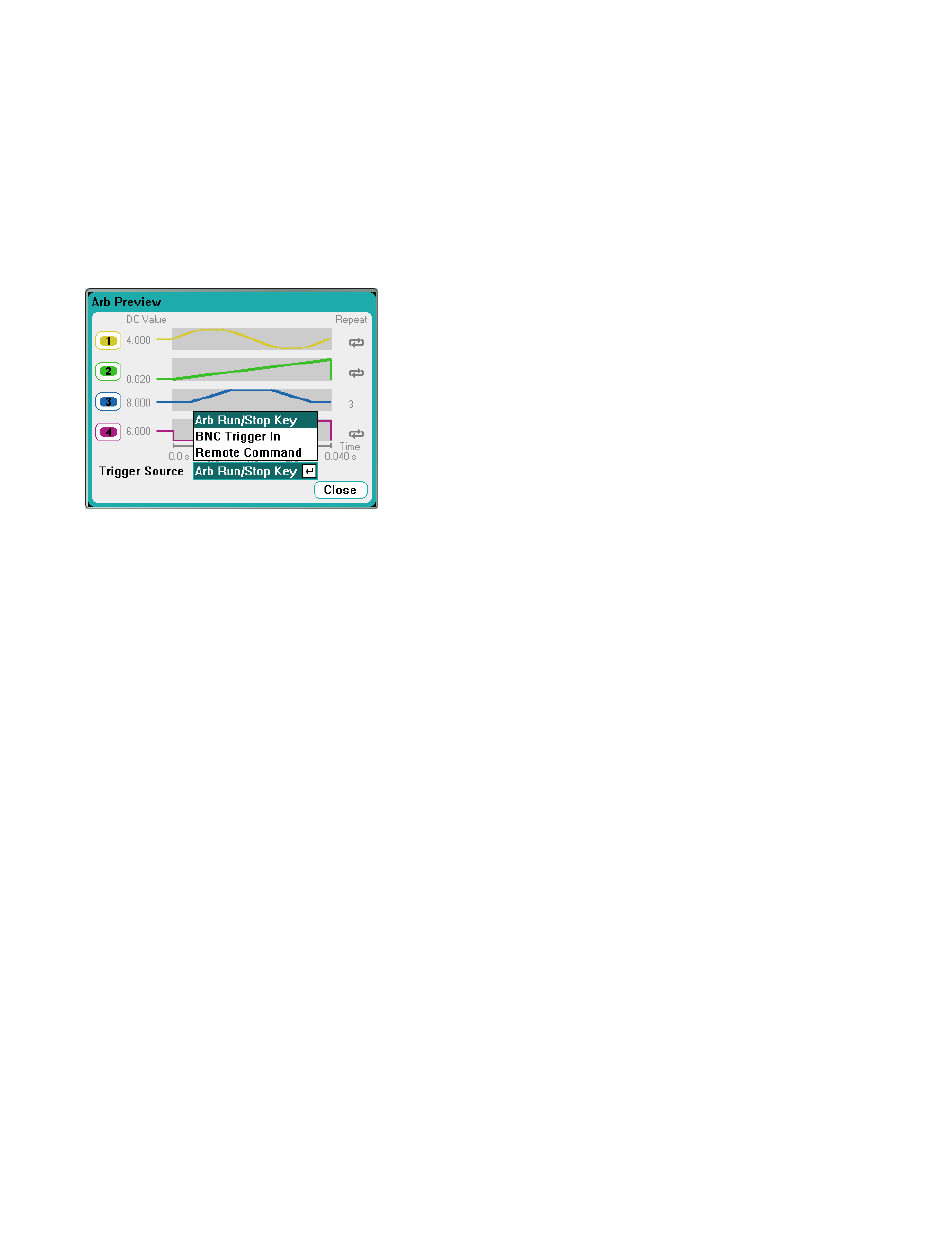

Press the Arb key, then select the Trigger Source field. The same trigger source will be used to trigger
all of the arbitrary waveforms.
The Arb Run/Stop key selects the front panel Arb Run/Stop key as the trigger source. This means that
the Arb will be triggered as soon as you run it. BNC Trigger In selects the rear trigger input BNC
connector as the trigger source. Remote command selects a remote interface command as the trigger
source.
Step 4 – Preview and Run the Arb:
The Arb Preview dialog shown above provides a preview of the Pulse waveform that will be run on
output 1.
Select Meter View or Scope View to display the Arb. Press the Output 1 On key to enable the output.
Press the Arb Run/Stop key to run the Arb.
From the remote interface:
The following commands select, program, and trigger a voltage Pulse on output 1:
ARB:FUNC:TYPE VOLT,(@1)
ARB:FUNC:SHAP PULS,(@1)
ARB:VOLT:PULS:STAR 0, (@1)
ARB:VOLT:PULS:TOP 10, (@1)
ARB:VOLT:PULS:STAR:TIM .25,(@1
ARB:VOLT:PULS:TOP:TIM .5,(@1)
ARB:VOLT:PULS:END:TIM .25,(@1)
ARB:TERM:LAST OFF,(@1)
To set up the transient trigger system and trigger the Arb:
VOLT:MODE ARB,(@1)
TRIG:ARB:SOUR BUS
OUTP ON,(@1)
INIT:TRAN (@1)
*TRG
