6 Advanced Source, Measurement, and Control
From the front panel:

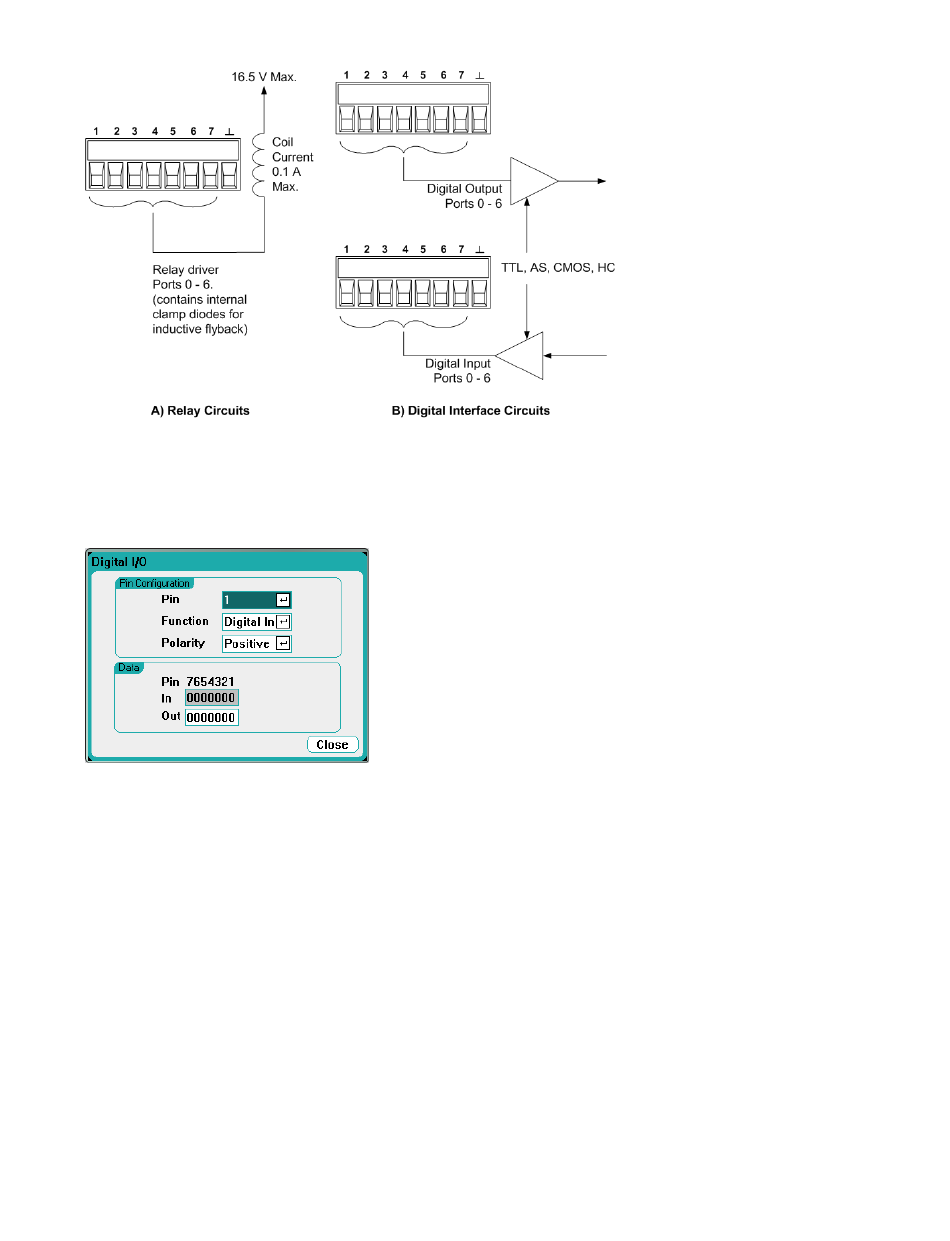

To configure the bi-directional digital I/O, press the Menu key, scroll down and select the Utilities item,
then select Digital I/O. Then press Enter.
Select the pin you wish to configure from the Pin dropdown list.
Select the Digital I/O function from the Function dropdown list. Select and program the remaining pins
in the same manner.
Configure the polarity for each pin by selecting the Polarity dropdown menu. Select either Positive or
Negative. Select and program the remaining pins in the same manner.
The Data fields only apply to the Digital I/O and Digital In functions. Enter the binary word into the Out
field of the Digital I/O window. The In field reflects the condition of the external signal that is applied to
the pins.
From the remote interface:
To configure the digital I/O function for pins 1 through 4:
DIG:PIN1:FUNC POS
DIG:PIN2:FUNC POS
