Step 5 – Turn on the outputs and measure the voltage:
Press the Scope View key to return the display the scope view:
Press the Run/Stop key to run the scope. When this key is lit, it indicates that the scope is running.
l
Press the All Outputs On key to start the output sequence and trigger the scope.
l

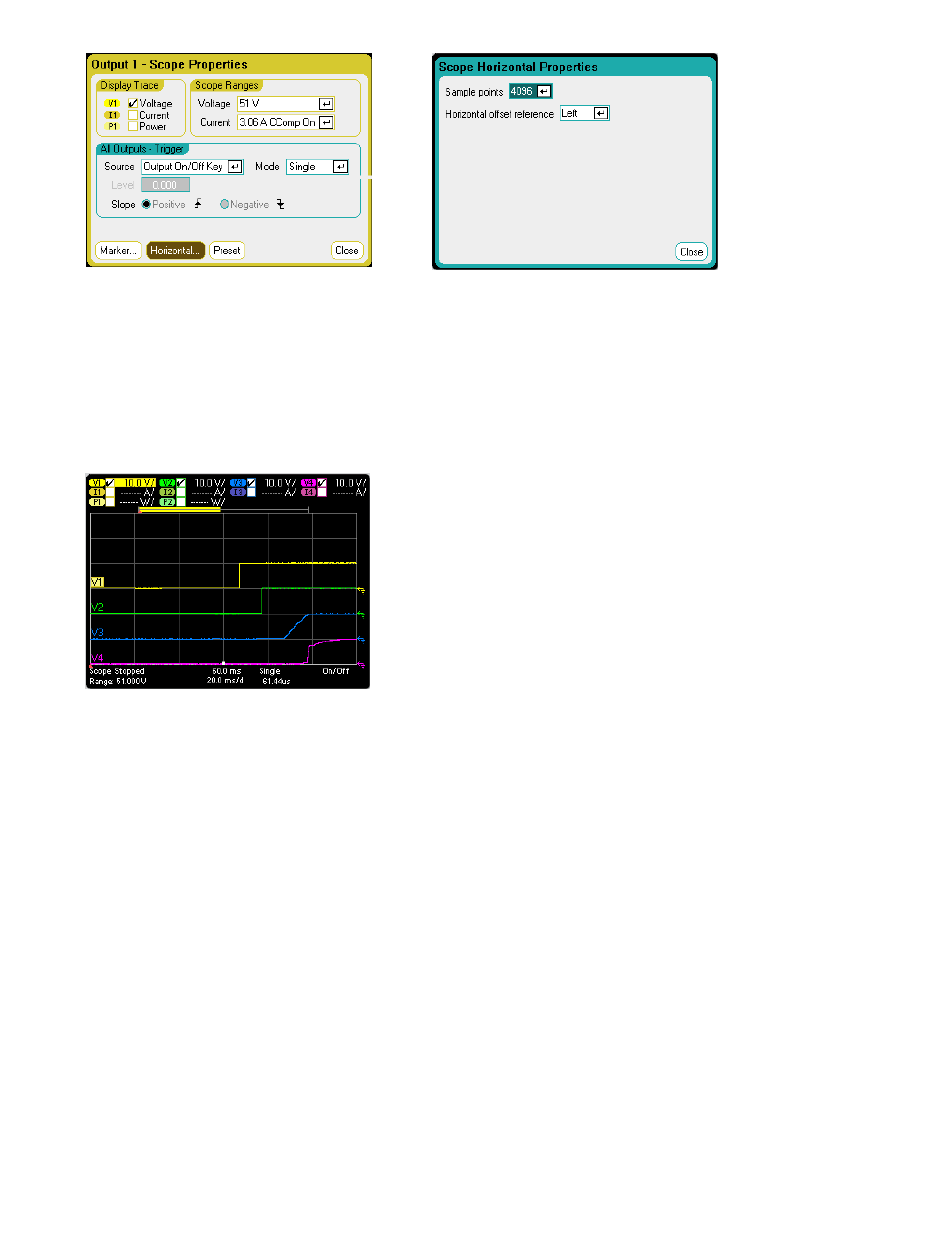

You should see the output waveforms displayed as follows:
Note that the delay for output 1 does not start until 57 milliseconds have elapsed. This is because the
internal delay for the mainframe used in this example is 57 milliseconds. This built in delay precedes
any user-defined delays that have been programmed.
Also note that outputs 3 and 4 start at the specified delay time but do not ramp up as fast as outputs 1
and 2. This is because Outputs 1 and 2 are "Precision" and "High Performance" modules, while
outputs 3 and 4 are "DC Power" modules, which have a slower turn-on ramp. Refer to
Differences.
From the remote interface:
You cannot program the scope from the remote interface.

Scope View

Press the Scope View key to view the scope. This key toggles between the Standard view shown
below, and Marker view, which enables markers and marker calculations.
Keysight N6705C Operating and Service Guide
4 Using the Measurement Functions
