Keysight Technologies
EXA X-Series Signal Analyzer
N9010A
Configuration Guide

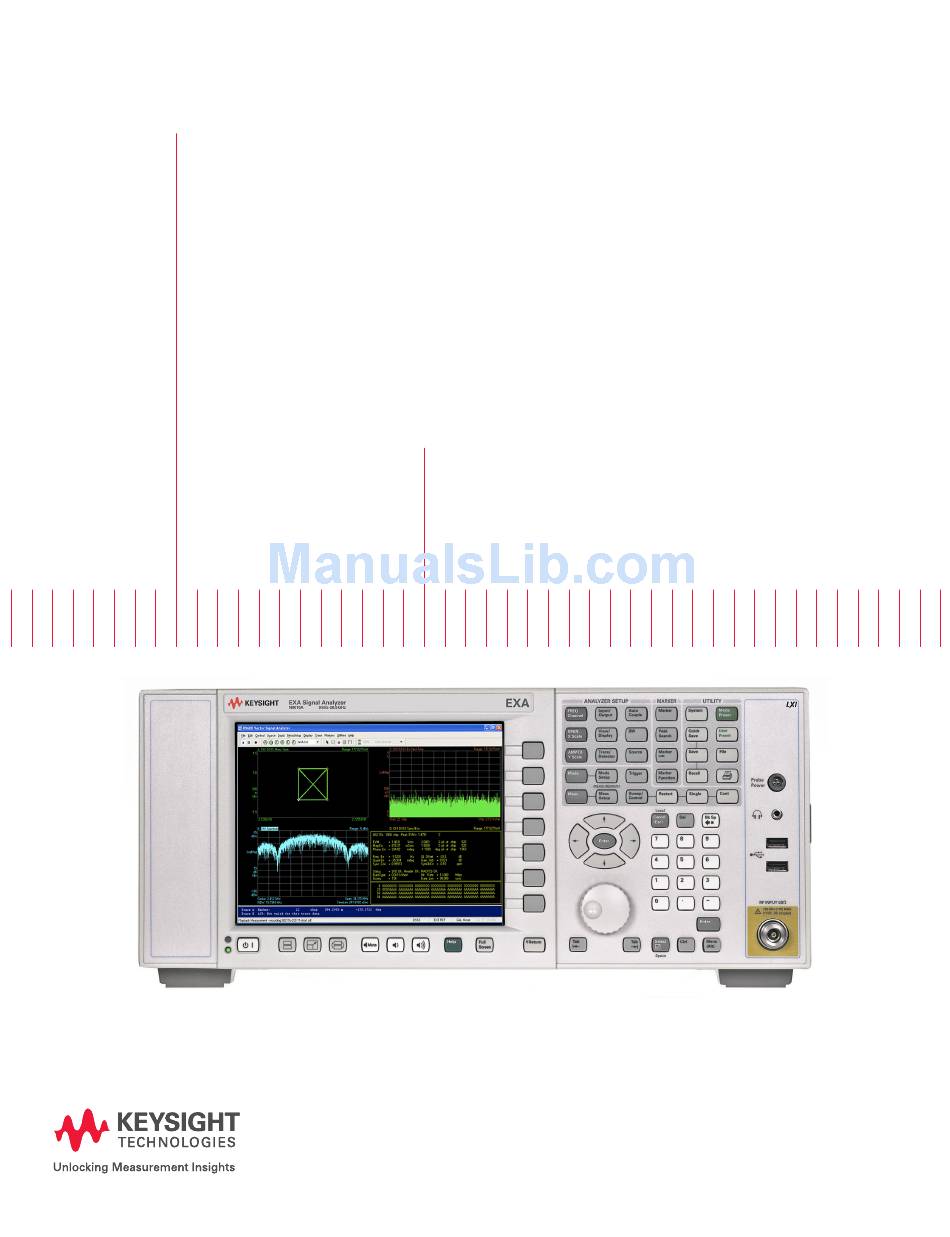

This EXA configuration guide will help you
determine which performance options,
measurement applications, accessories,
and services to include with your new EXA
or to add as upgrades to an existing EXA.
