4 Using the Measurement Functions

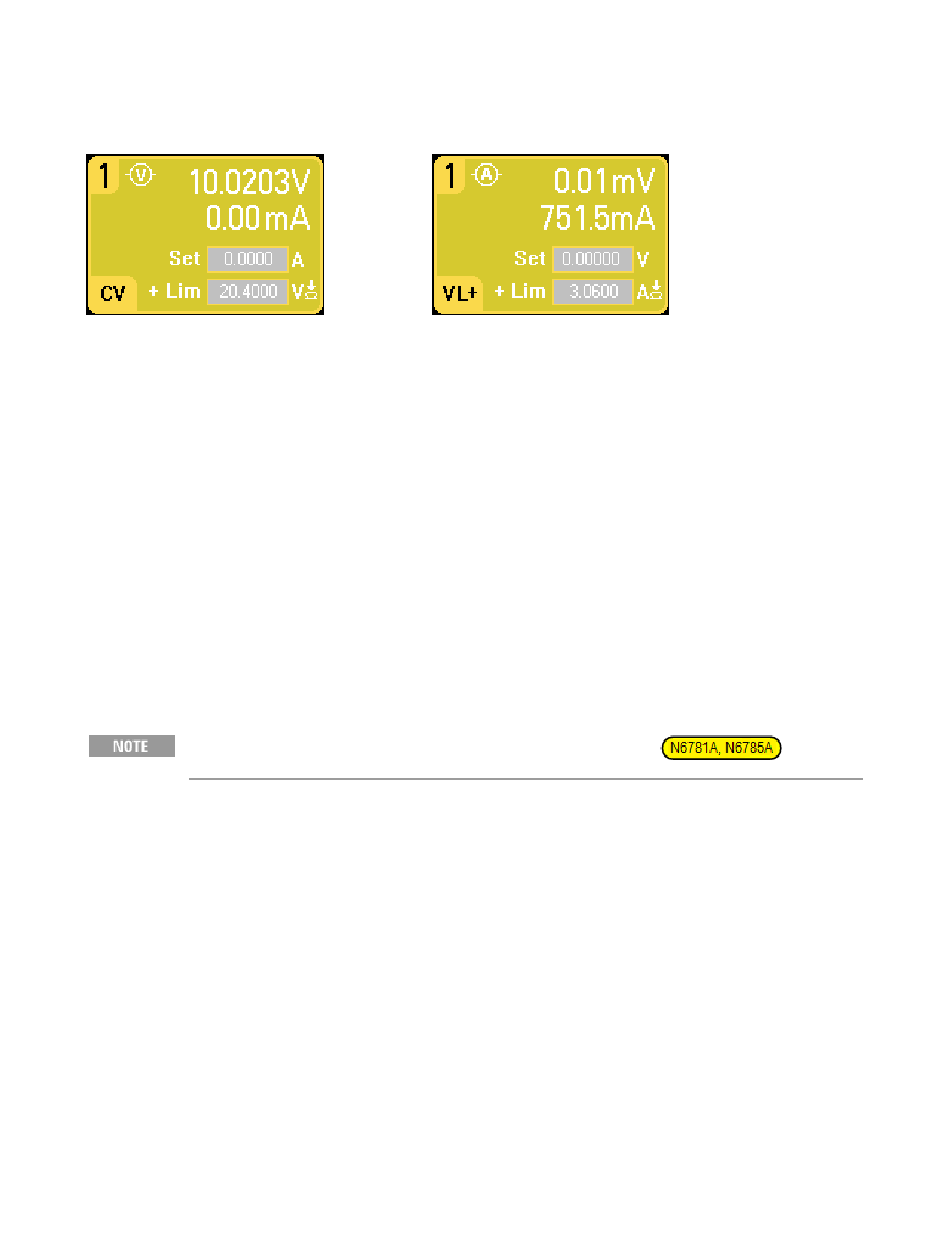

When the Measure Only modes are selected, the output is enabled and the voltage or current
measurement is continuously displayed on the Meter View. Both voltage and current meters are
active in either mode.
When the Measure Only modes are selected, the output is enabled and the voltage or current
measurement is continuously displayed on the Meter View. Both voltage and current meters are
active in either mode.
From the remote interface:
To specify current measure and measure the current:
EMUL AMET,(@1)
MEAS:CURR?(@1)
To specify voltage measure and measure the voltage:
EMUL VMET,(@1)
MEAS:VOLT?(@1)

Auxiliary Voltage Measurements

This information only applies to Models N6781A and N6785A.
Models N6781A and N6785A have an auxiliary voltage measurement input, whose primary use is for
battery voltage rundown measurements. It may also be suitable for other applications including
general purpose DC voltage measurements between +/-20 VDC.
Auxiliary voltage measurements cannot be made along with output voltage measurements. When the
auxiliary voltage measurement input is selected, all voltage measurement functions receive their
input from this source instead of the normal + and − sense terminals. These functions include the front
panel, SCPI measurements, Scope View, Data Logger View, Elog, and histogram measurements.
From the front panel:
To enable auxiliary voltage measurements, select Meter View, then Properties, then select Aux
Voltage.
