The current or voltage value of ten steps:
ARB:CURR:CDW 0.5,1,1.5,2,2.5,3,3.5,4,4.5,5,(@1)
ARB:VOLT:CDW 1,2,3,4,5,6,7,8,9,10,(@1)

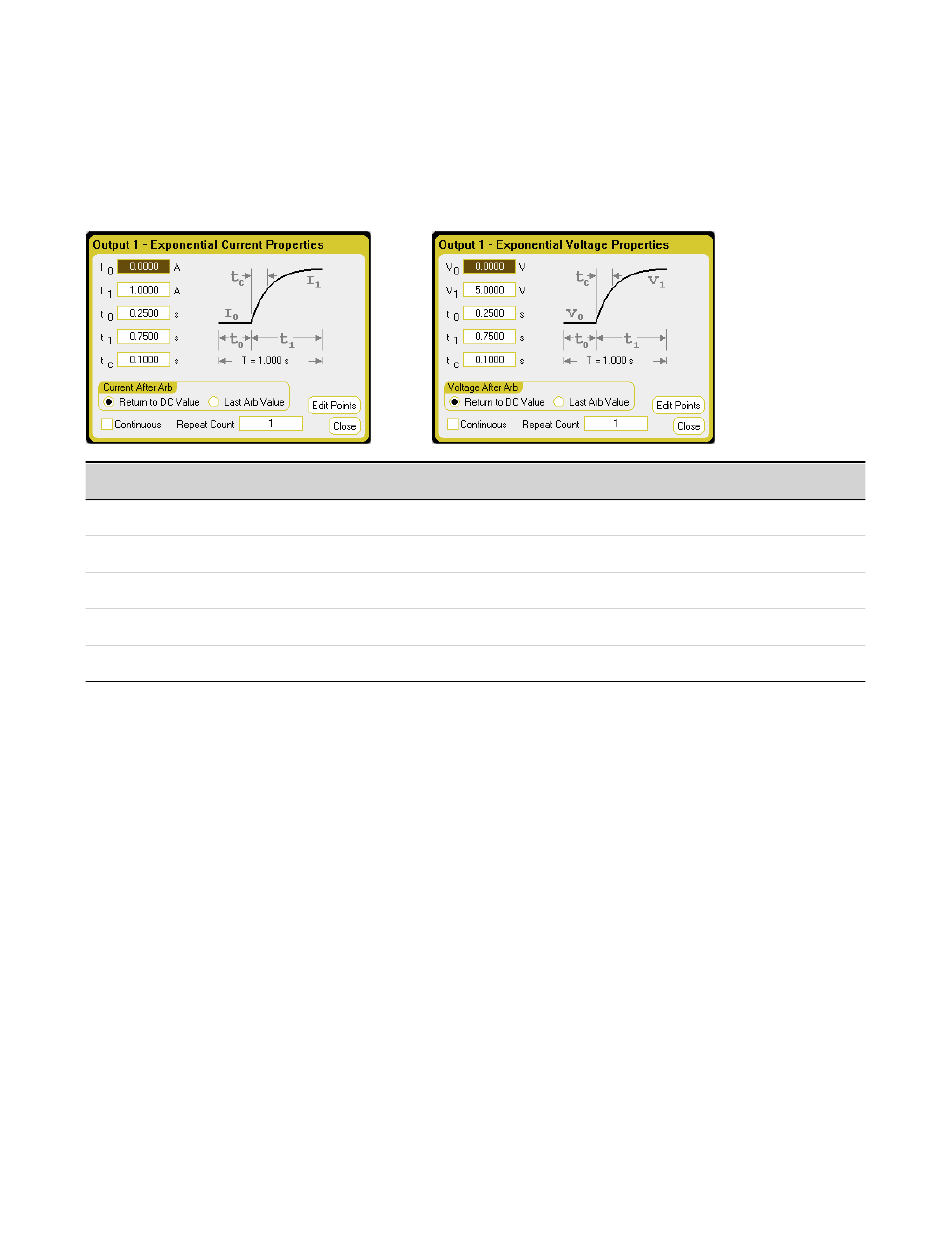

Exponential Parameters

Parameter
Start Setting (I 0 or V 0 )
End Setting (I 1 or V 1 )
Delay (T 0 )
Time (T 1 )
Time Constant (T c )
From the remote interface:
The setting before the waveform:
ARB:CURR:EXP:STAR 0,(@1)
ARB:VOLT:EXP:STAR 0,(@1)
The end setting of the waveform:
ARB:CURR:EXP:END 1,(@1)
ARB:VOLT:EXP:END 5,(@1)
The delay after the trigger is received but before the waveform starts:
ARB:CURR:EXP:STAR:TIM 0.25,(@1)
ARB:VOLT:EXP:STAR:TIM 0.25,(@1)
Time for the amplitude to go from the start setting to the end setting:
ARB:CURR:EXP:TIM 0.75,(@1)
ARB:VOLT:EXP:TIM 0.75,(@1)
The time constant of the curve:
Keysight N6705C Operating and Service Guide
Description
The setting before the waveform.
The end setting of the waveform.
The delay after the trigger is received but before the waveform starts.
Time for the amplitude to go from the start setting to the end setting.
The time constant of the curve.
