1 parameter (voltage or current)
3 parameters (voltage+min+max)
6 parameters (voltage+min+max X 2 outputs)
12 parameters (voltage+min+max X 4 outputs)
24 parameters (voltage+min+max X 4 outputs
& current+min+max X 4 outputs)
When the Power trace is selected, it counts as 2 parameters, since voltage and current
must be measured to calculate power. If voltage and current traces have already been
selected, the Power trace is not counted as a parameter

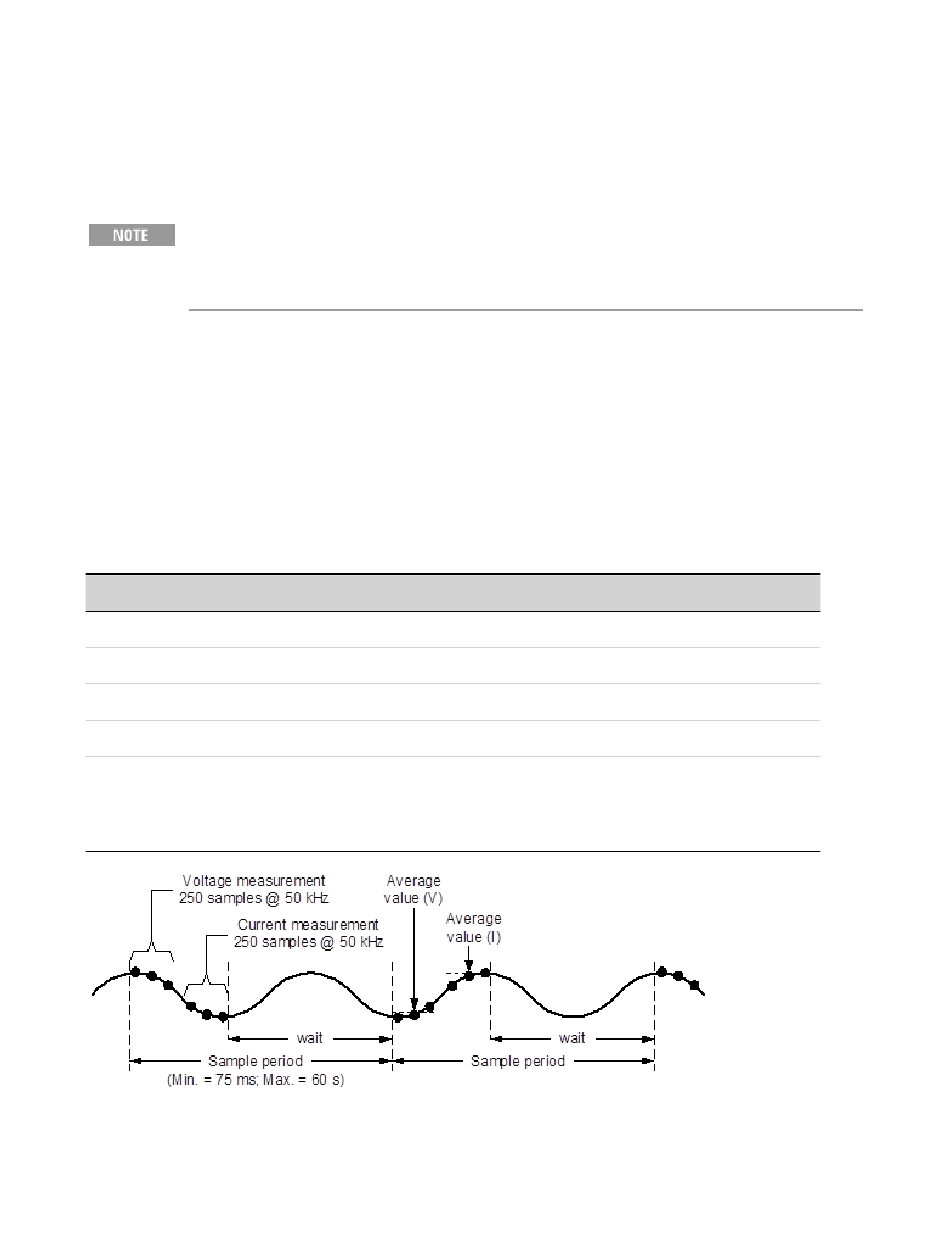

Standard mode (interleaved)
Standard (interleaved) mode only applies when both voltage and current measurement traces are
selected on power modules other than Models N676xA and N678xA SMU. These other power modules
cannot measure voltage and current simultaneously; hence, the voltage and current measurements
must be interleaved for all power modules in the mainframe. Each measurement is sampled for about
5 milliseconds at the beginning of every sample period. Power is calculated from the interleaved
measurements.
Standard data sampling is used with the following Power Module and Display Trace selections:
Power Module
N673xB, N674xB
N675xA, N677xA
N6783A-BAT/MFG
Available capabilities for ALL outputs
• Sample period: 20.48 microseconds to 60 seconds
• Trigger source: all trigger sources available
• Trigger offset: 0 to 100%
• Values logged: average, minimum, maximum (minimum/maximum values must be selected)
Keysight N6705C Operating and Service Guide
Display Trace selection
Voltage, Current, and Power
Voltage, Current, and Power
Voltage, Current, and Power
4 Using the Measurement Functions
20 microseconds (rounded)
60 microseconds (rounded)
120 microseconds (rounded)
240 microseconds (rounded)
480 microseconds (rounded)
