Keysight N6705C Operating And Service Manual page 447

9 Service and Maintenance

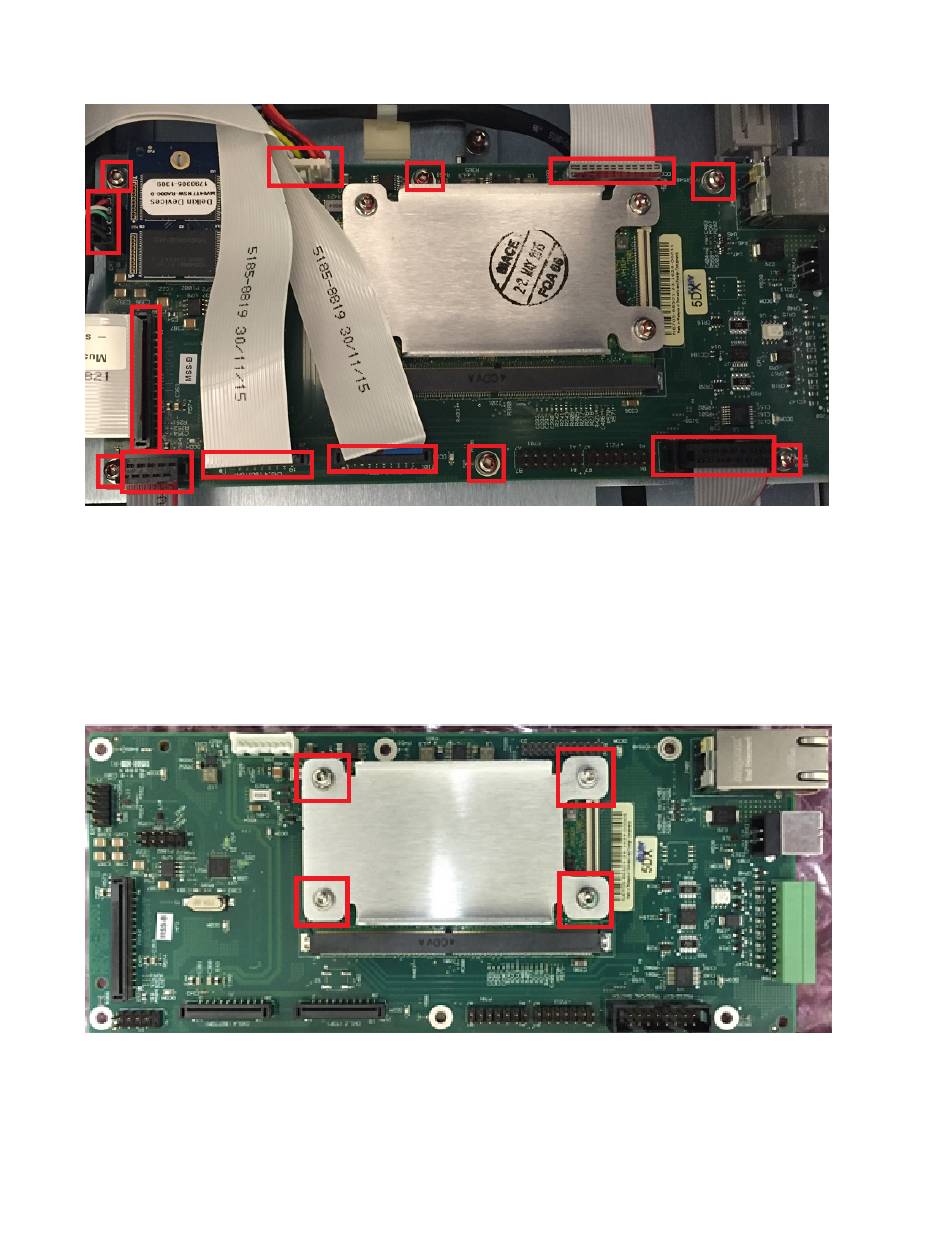

Step 2. Disconnect the eight cables and remove six screws using a T10 driver.
Step 3. Remove the Processor Carrier by sliding forward and lifting.
Step 4. To install the Processor Carrier board, perform the above steps in reverse order.
Removing/Installing the P600 Processor (P0600-63002)
Step 1. Remove the top chassis as previously described.
Step 2. Remove the four screws that attach the heat spreader to the board using a T10 driver.
Step 3. Slide the board out of the connector.
Keysight N6705C Operating and Service Guide 447
