SmartNode 100 Series ATA User Manual 6 • VoIP Settings

Configuring SN102/1JS1JO/E (1 FXS/1 FXO) ATA SIP settings

Do the following to display SIP and QoS settings:

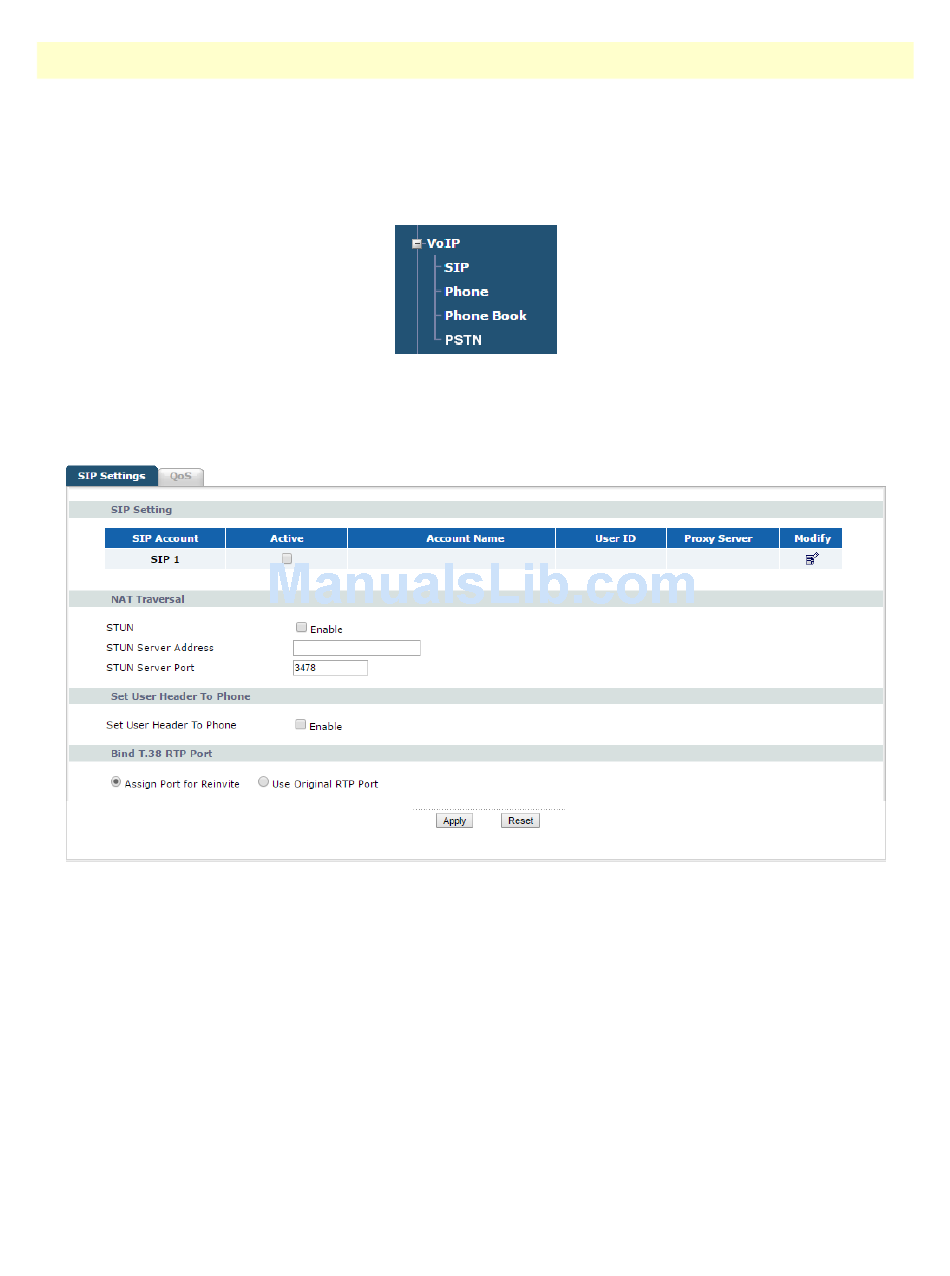

1. Click on the plus button next to VoIP to display the sub-categories (see figure 55).
Figure 55. SN102/1JS1JO/E VoIP sub-categories
2. Click SIP. The SIP Settings window displays (see figure 56).
Figure 56. SN102/1JS1JO/E SIP Settings window
3. Click the QoS tab to display the QoS window (see figure 57 on page 88).
SIP 87
