SmartNode 100 Series ATA User Manual
7. Click the Finish button. The Congratulations! window displays (see
Status table (see figure
If the ATA is having a problem registering a phone or fax machine, do the
Note
following:
8. Click the Finish button. The SmartNode ATA home window (see
VoIP set up
18) should display Reg Success (registration successful).

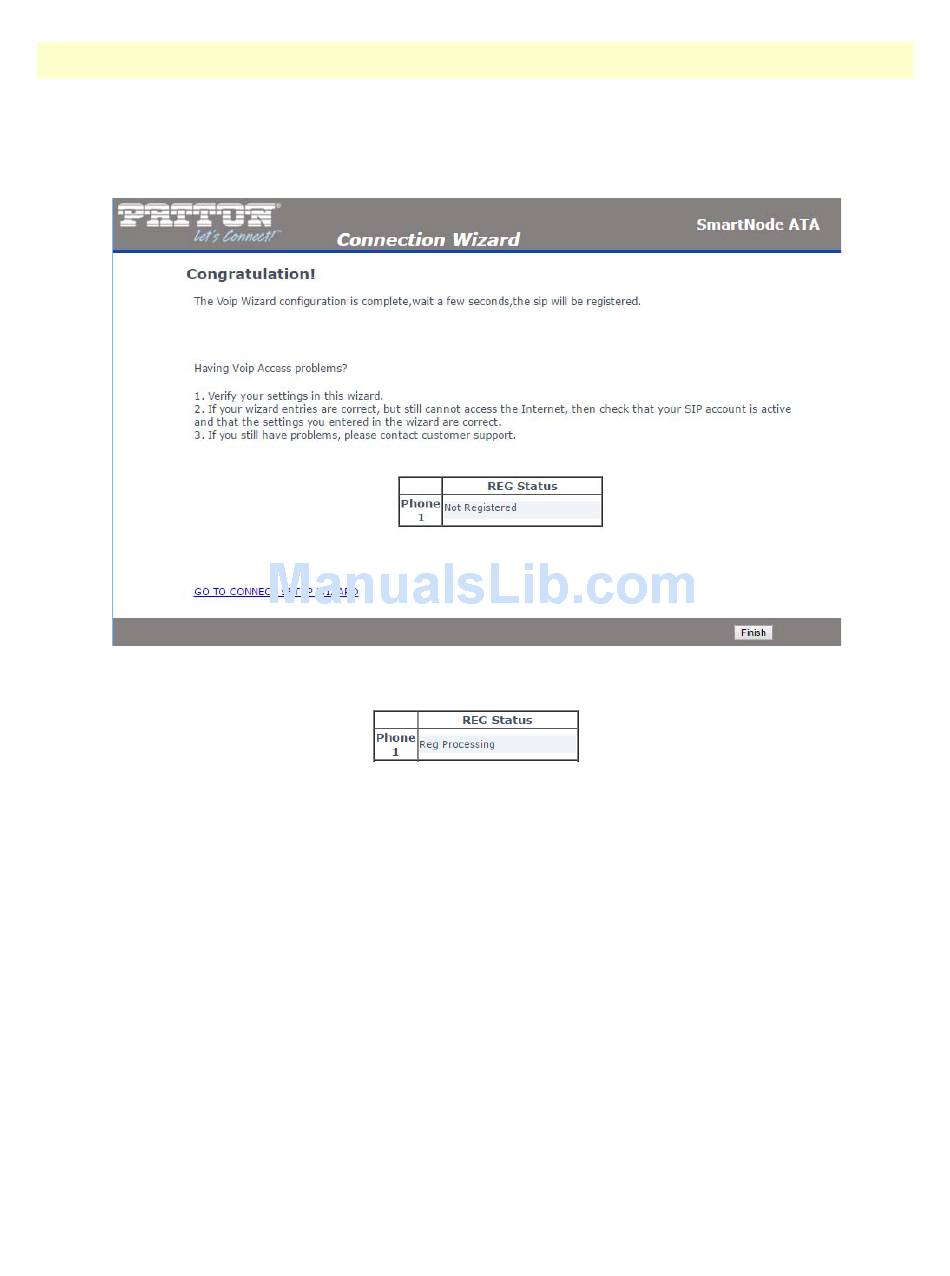

Figure 17. Congratulations! window
Figure 18. REG Status table
Verify that the VoIP settings were entered correctly.
•
If the VoIP entries are correct, but the ATA still cannot access the
•
Internet, verify that your SIP account is active.
If ATA is still having problems, please contact technical support
•
(see Chapter 9, "Contacting Patton for assistance"
details).
figure 17). After a short delay, the REG
on page 133 for
figure 19 on page 38) displays.
3 • Quick Start
37
