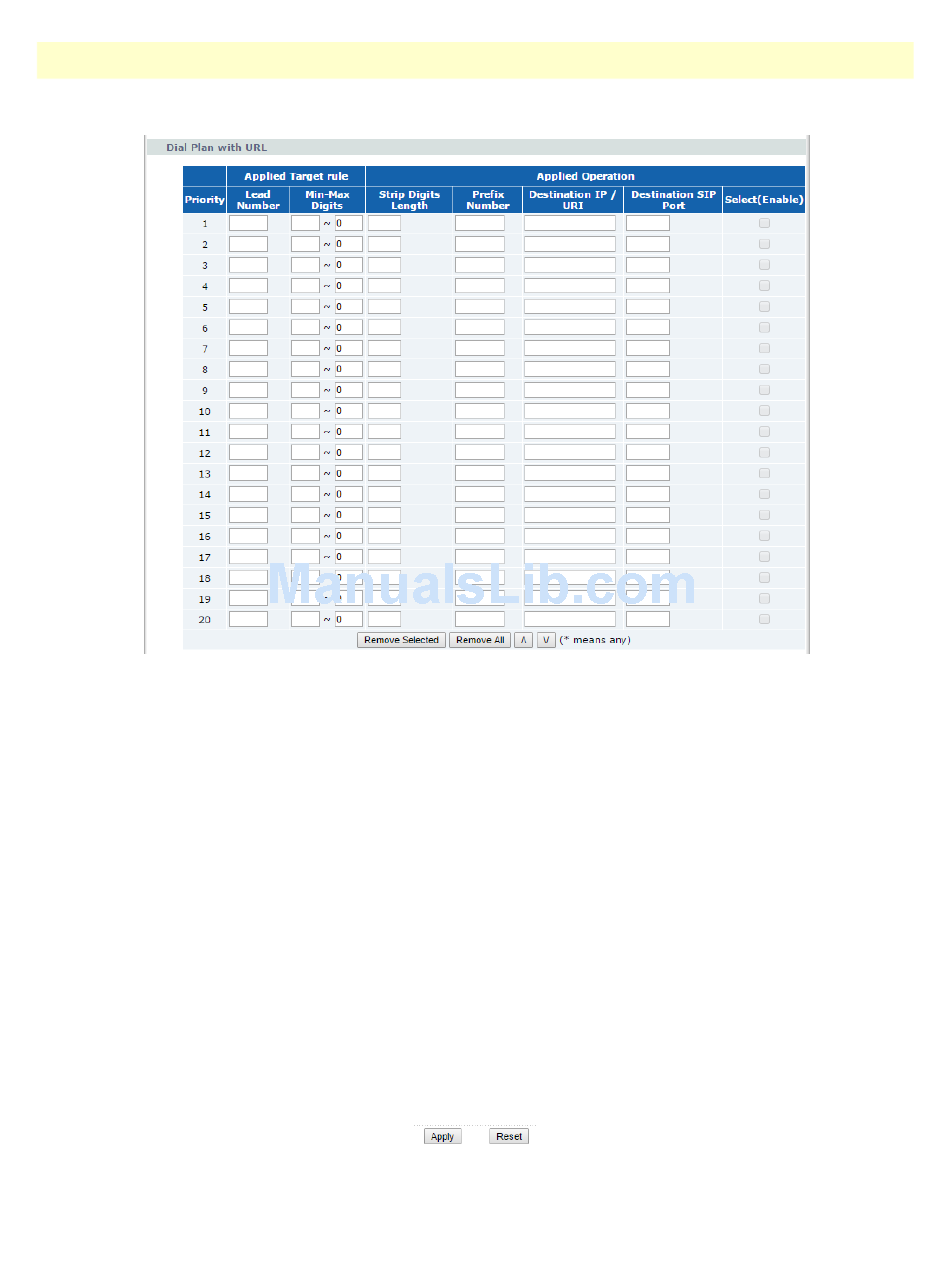

2. Make the following settings:
When a user dials a number xxxxxxx, the ATA will check it against this dial
Note
plan, first by Priority order, and then execute.
– Lead Number is the first digit of the call-out dialing number.
– Min-Max Digits has two text fields that must be completed: Min Length and Max Length are the min/
max allowed length of the number you can dial.
– Strip Digits Length is the number of digits that will be stripped from beginning of the dialed number.
– Prefix Number is the digits that will be added to the beginning of the dialed number.
– Destination IP/ URI is the IP address/domain name of the destination SN100 that owns this phone
number. This for peer-to-peer IP calls.
– Destination SIP Port is used to overwrite the UDP port for the destination configured of this rule.
Default port is 5060 as per the SIP server settings in Chapter 6.
3. When you are satisfied with the settings, click the Apply button to save and apply the changes.
))
