PSTN Line

Do the following to display the PSTN Line General window:
1. Click on the plus button next to VoIP to display the PSTN LINE sub-category (see
2. Click PSTN Line. The General window displays (see
3. Make the following settings:
– –Call through PSTN line: Set up the prefix digit function key. For example, if the PSTN Line Prefix
Number is **, it means that the analog phone connected to the FXS port can press **, then get a dial
tone of PSTN port to dial destination number via PSTN port.
– Relay to PSTN Line: Up to 10 pass through numbers can be configured. The phone connected to the
FXS port, dialing one of these numbers, will cause the call to directly go out on the PSTN line, without
routing it to the SIP account. This function may be used for emergency calls such as 911 for USA or 112
for Europe.
4. When you are satisfied with the settings, click the Apply button to save and apply the changes.
))

PSTN Line

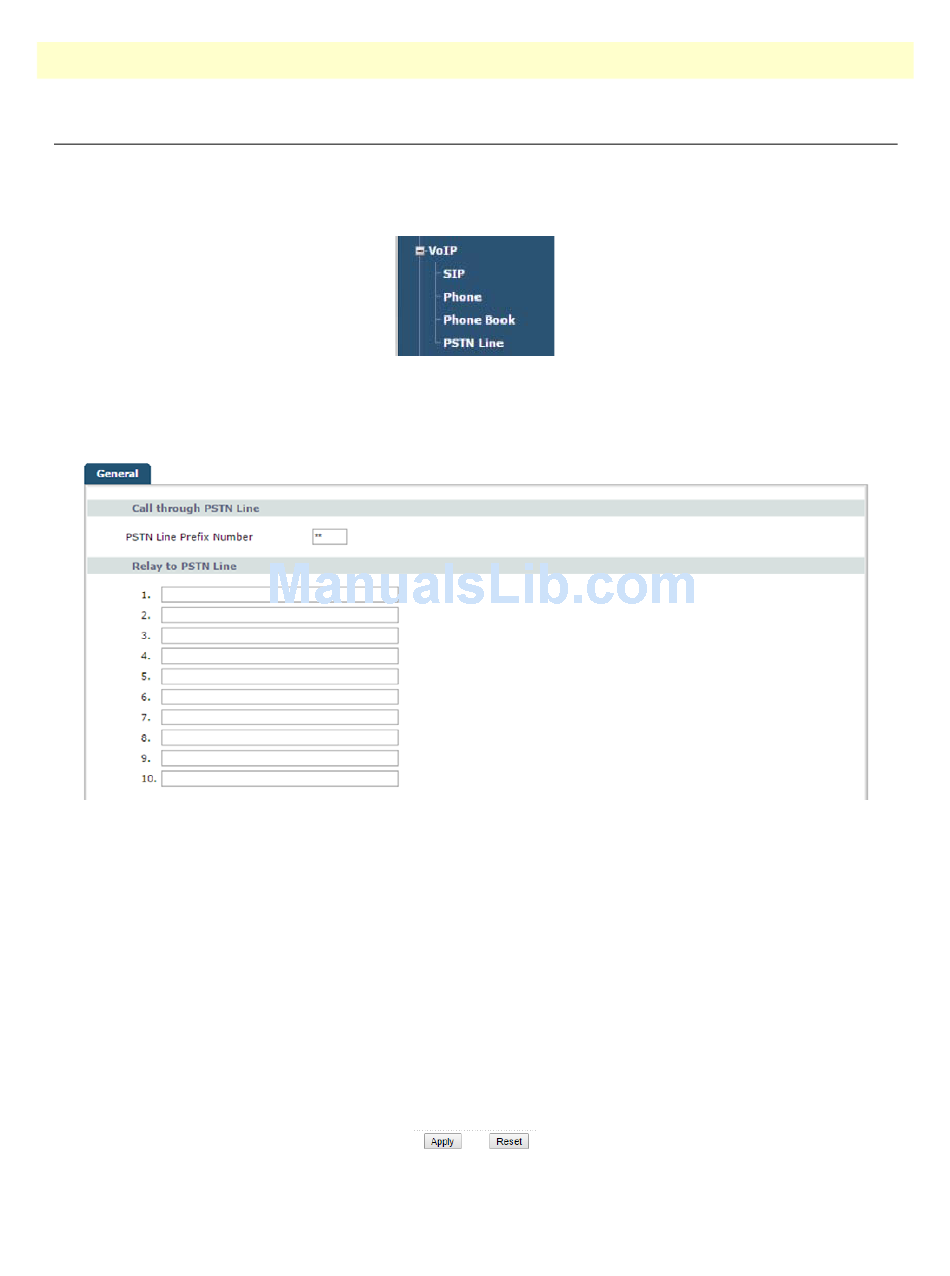

Figure 68. PSTN sub-category
figure
Figure 69. PSTN Line General window
69).
