SmartNode 100 Series ATA User Manual

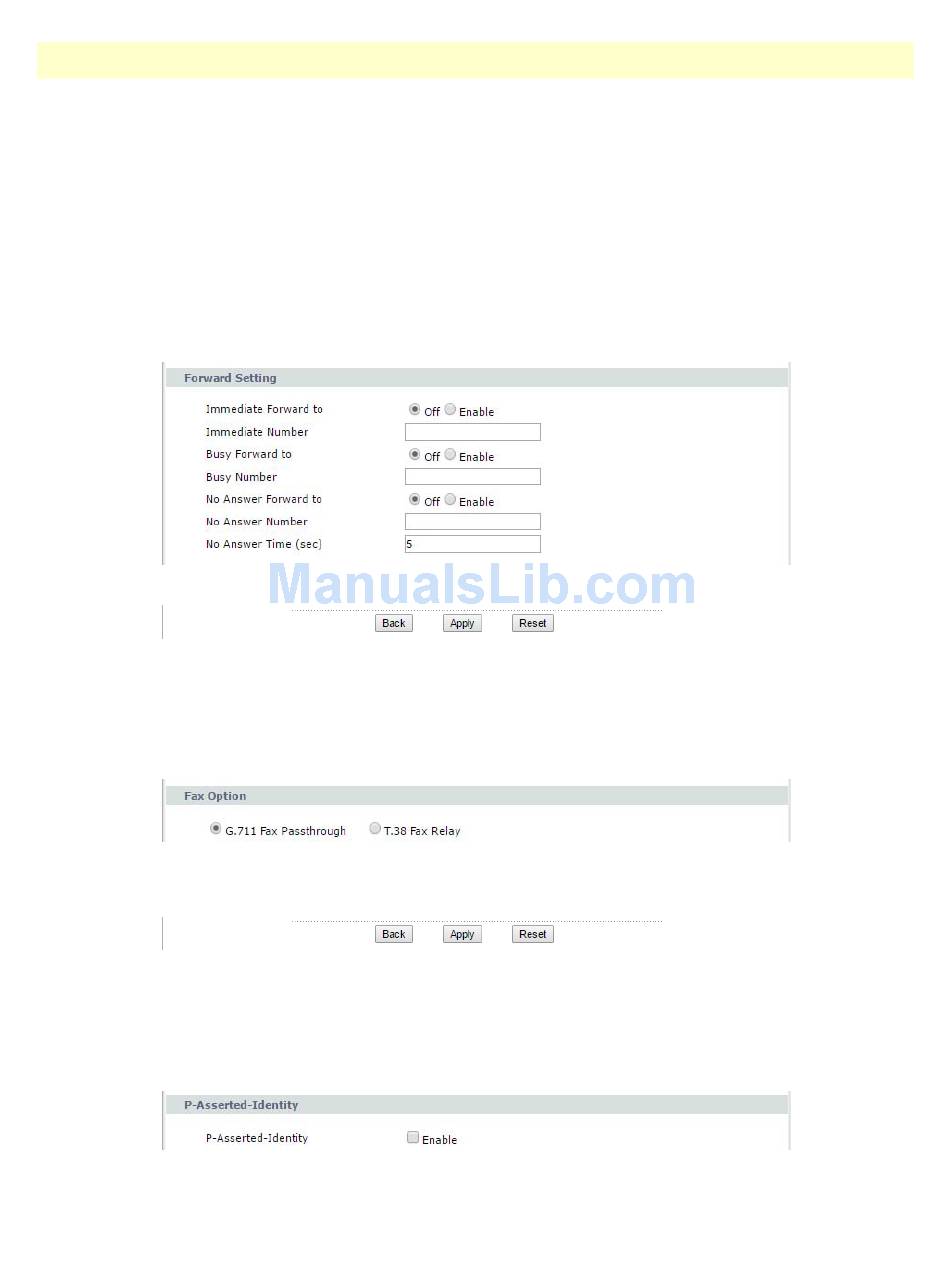

You can set up the phone number you want to forward in this section. There are three for-

Forward Setting.

warding modes:
Immediate Forward: All incoming call will forward to the number you entered. You can input the phone num-
•
ber. If you select this function, then all the incoming call will direct forward to the speed dial number you
entered.
Busy Forward: If you are on the phone, the new incoming call will forward to the number you entered.
•
No Answer Forward: If nobody picks up the phone, the incoming call will forward to the number you entered.
•
When you are satisfied with the settings, click the Apply button to save and apply the changes.
))
))
G.711 Fax Pass through: Select this if the SN100 should use G.711 to send fax messages. The peer

Fax Option.

devices must also use G.711.
T.38 Fax Relay: Select this if the SN100 should send fax messages as UDP packets through IP networks. This
provides better quality, but it may have interoperability problems. The peer devices must also use T.38.
When you are satisfied with the settings, click the Apply button to save and apply the changes.
))
The SIP server authenticates the user that sent the SIP request and then uses the identity

P-Asserted-Identity.

from the result of authentication to generate a P-Asserted-Identity header field.
Select enable to have the device look at the P-Asserted-Identity header field which carries the identity of the
caller in SIP message, and display the caller's location if available.
SIP
6 • VoIP Settings
71
