SmartNode 100 Series ATA User Manual 3 • Quick Start

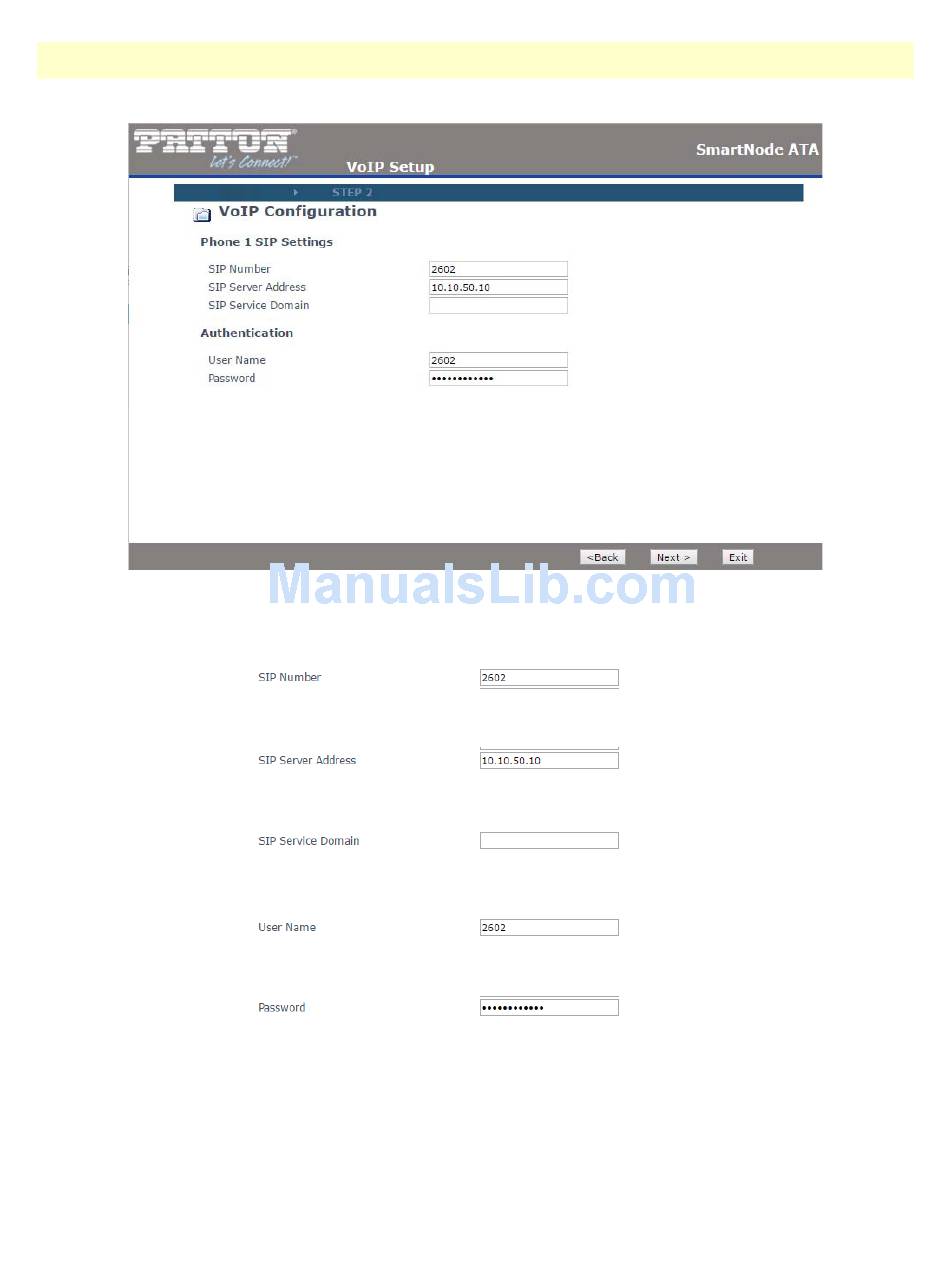

Figure 25. VoIP Configuration - Phone 1 window
2. Type the SIP number that was provided by your ISP in the SIP Number box.
3. Type the proxy address that was provided by your ISP in the SIP Server Address box.
4. Type the SIP domain that was provided by your ISP in the SIP Service Domain box.
5. Type the user name that was provided by your ISP in the Username box.
6. Type the password that was provided by your ISP in the Password box.
VoIP set up 43
