SmartNode 100 Series ATA User Manual

Device information

The Device Information section of the Status pane displays model type, firmware version, and information
about the WAN (WAN access type, IP address, IP subnet mask, default gateway address, and the MAC
address) and information about the LAN (IP address, IP subnet mask, default gateway address, MAC address,
and whether the DHCP server is enabled).
If you want to change WAN Internet connection settings, a shortcut is to
Note
click on the IP Address link under WAN Information to display the Internet
Connection section of the Network > WAN > Internet Connection pane.
If you want to change LAN settings, a shortcut is to click on the IP Address
Note
link under LAN Information to display the LAN Setup section of the Network
> LAN > LAN Setup pane.

System status

The System Status section of the Status pane displays how long the system has been running since the last reset
(uptime), the current date and time, the percent of CPU capacity in use, and the percent of memory capacity
in use.
System Status pane

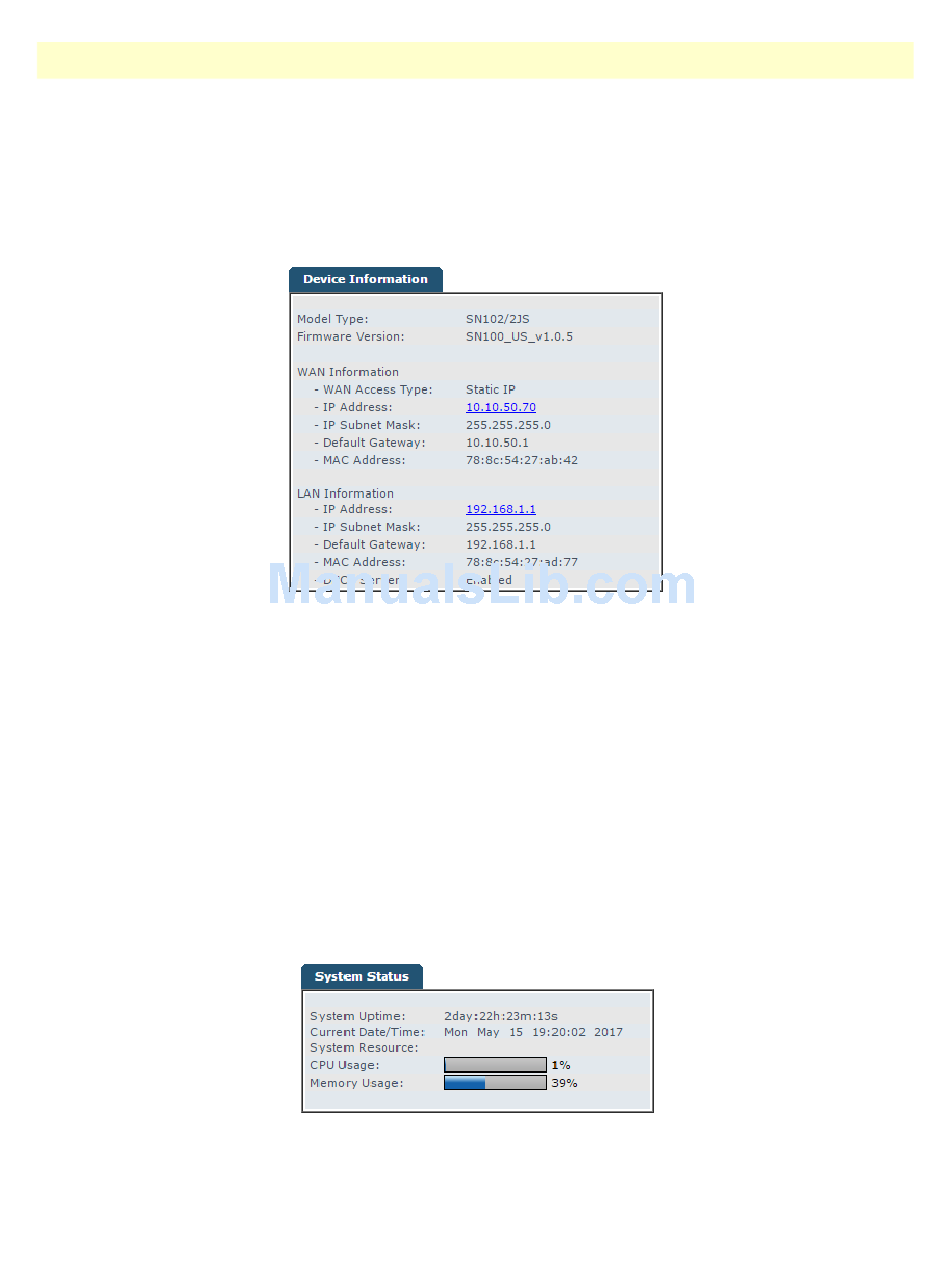

Figure 33. Device Information window
Figure 34. System Status window
4 • SmartNode ATA Home
50
