SmartNode 100 Series ATA User Manual
Choose from the following:
Back up the SN100 configuration (see
•
• Restore SN100 configuration from a previous back up (see
Reset the SN100 to factory default settings (see
•

Backup Configuration

Do the following to back up the current SN100 configuration:
1. Click the Backup button to save a copy of SN100 configuration.
))
2. In the popup window select the location of where the backup configuration file should be stored.
3. Specify the filename of the backup config.
4. Click save for configuration the to be stored.
Configuration backup is completed.

Restore Configuration

Do the following to restore a previously saved configuration file:
1. Click the Choose File button.
))
Tools

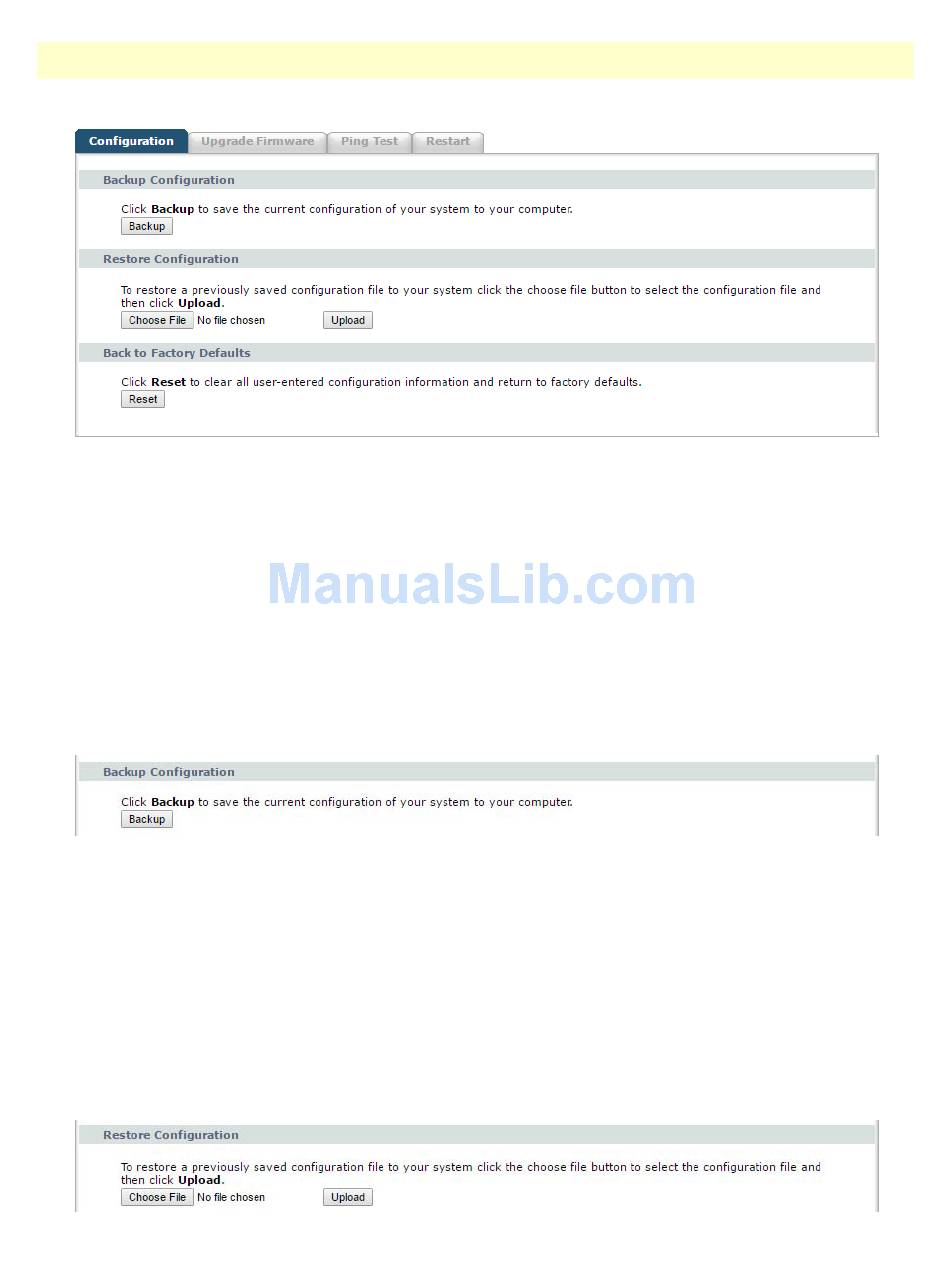

Figure 82. Tools Configuration window
"Backup Configuration")
"Reset the SN100 to factory default settings"
"Restore Configuration"
8 • Maintenance Settings
on page 128)
on page 129)
128
