SmartNode 100 Series ATA User Manual
Backup SIP Proxy Server: Click to enable or disable the backup proxy server
•
• Backup1 Server Address: This setting appears if Backup SIP Proxy Server is enabled. Type the address.
Backup2 Server Address: This setting appears if Backup SIP Proxy Server is enabled. Type the address.
•
SIP Server Port: Type the Proxy port number provided by your ISP.
•
• SIP Server Domain: Type the SIP domain provided by your ISP.
Register Expire (sec): SIP registration expired time (default is 600 and needed for calls through the satellite
•
connection).
• Outbound Proxy Server: Click to enable or disable the outbound proxy server
Outbound Proxy Address: Type the address provided by your ISP. If your ISP did not provide the information,
•
you can skip this item.
• Outbound Proxy Port: Type the port number provided by your ISP.

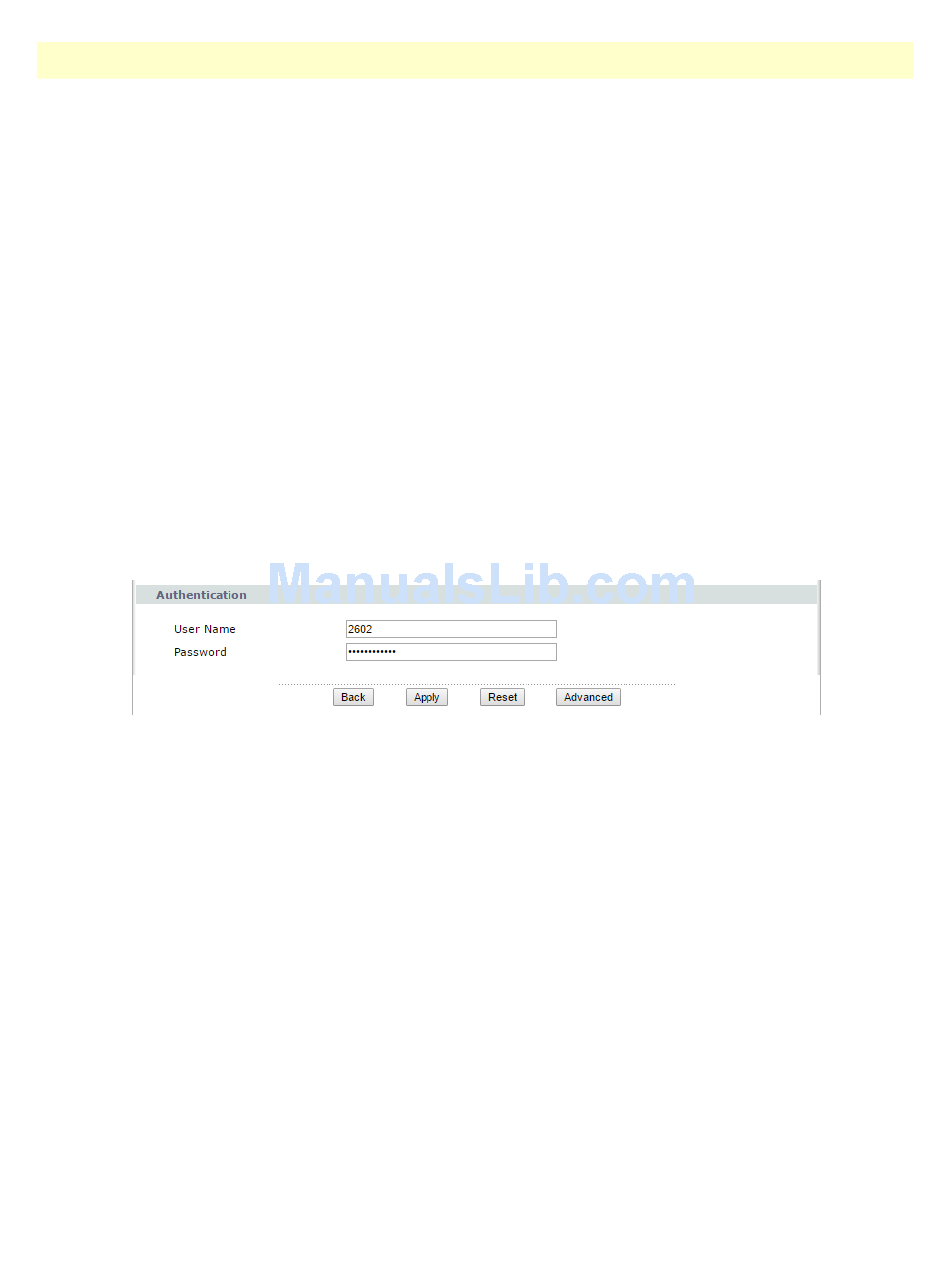

Authentication Settings. This section displays the following:
User Name: Type the Register Name provided by your ISP.
•
• Password: Type the Register Password provided by your ISP.
If you are satisfied with the settings, click the Apply button to save and apply the changes.
if you need to change the following:
Advanced SIP settings
•
Forwarding settings
•
• Fax option settings
P-Asserted-Identity setting
•
Dial termination key setting
•
Session timer settings
•
• MWI (message waiting indication) settings
DND (do not disturb) settings
•
Block anonymous call setting
•
• Codec settings
Go to section "Advanced Edit SIP Settings window"
SIP
on page 68. Otherwise, SIP settings are complete.
