SmartNode 100 Series ATA User Manual

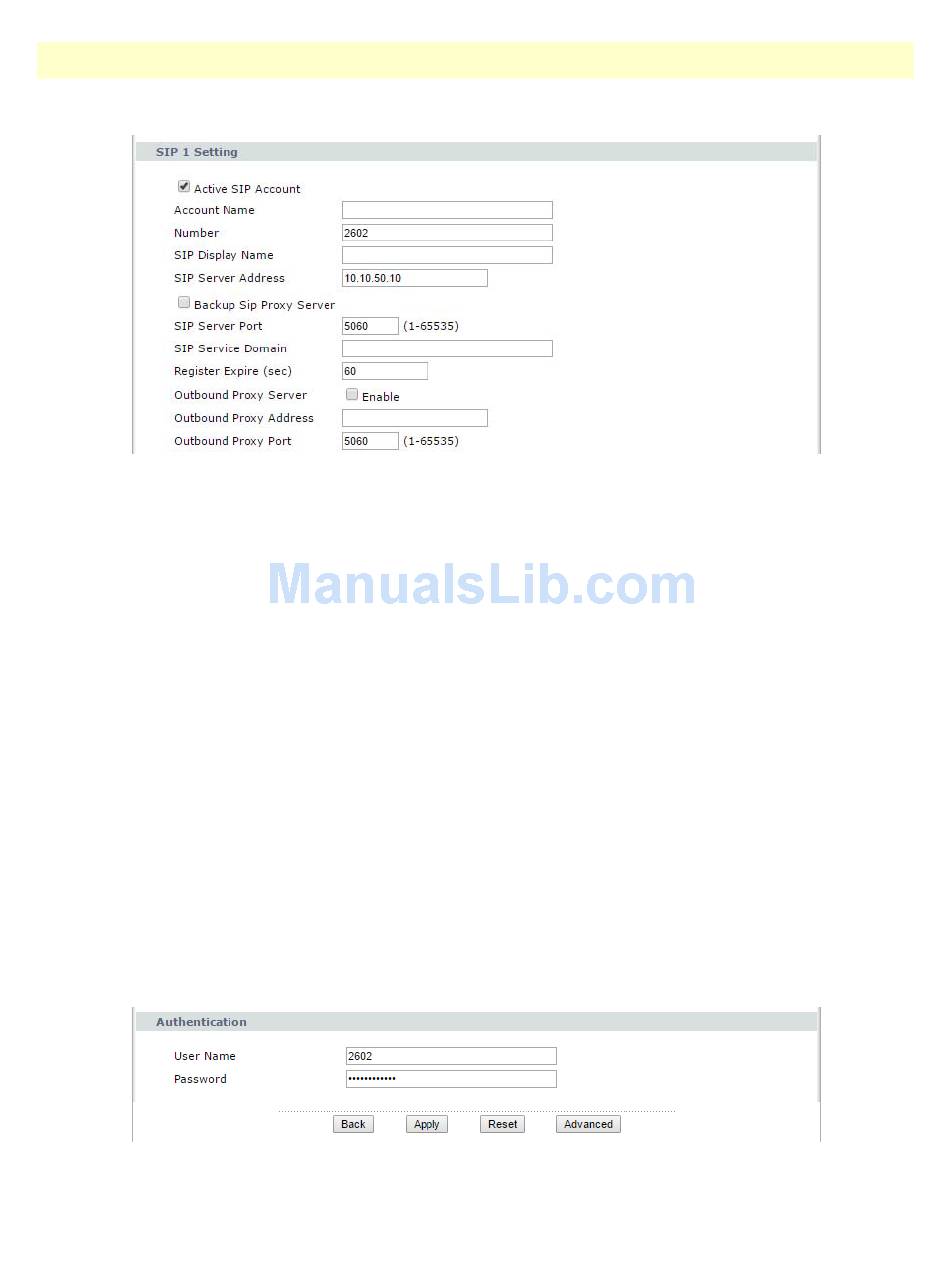

SIP Display Name: Type the name you want displayed.
•
SIP Server Address: Type the address.
•
• Backup SIP Proxy Server: Click to enable or disable the backup proxy server
Backup1 Server Address: This setting appears if Backup SIP Proxy Server is enabled. Type the address.
•
Backup2 Server Address: This setting appears if Backup SIP Proxy Server is enabled. Type the address.
•
• SIP Server Port: Type the Proxy port number provided by your ISP.
SIP Server Domain: Type the SIP domain provided by your ISP.
•
Register Expire (sec): SIP registration expired time (default is 600 and needed for calls through the satellite
•
connection).
Outbound Proxy Server: Click to enable or disable the outbound proxy server
•
Outbound Proxy Address: Type the address provided by your ISP. If your ISP did not provide the information,
•
you can skip this item.
Outbound Proxy Port: Type the port number provided by your ISP.
•
Authentication Settings. This section displays the following:
User Name: Type the Register Name provided by your ISP.
•
Password: Type the Register Password provided by your ISP.
•
If you are satisfied with the settings, click the Apply button to save and apply the changes.
if you need to change the following:
SIP
