SmartNode 100 Series ATA User Manual 3 • Quick Start

Configuring SN102/2JS/E (2 FXS) ATA VoIP settings

1. Click VOIP SETUP. The VoIP Configuration window displays (see figure 20). Do the following to config-
ure Phone 1 SIP settings:

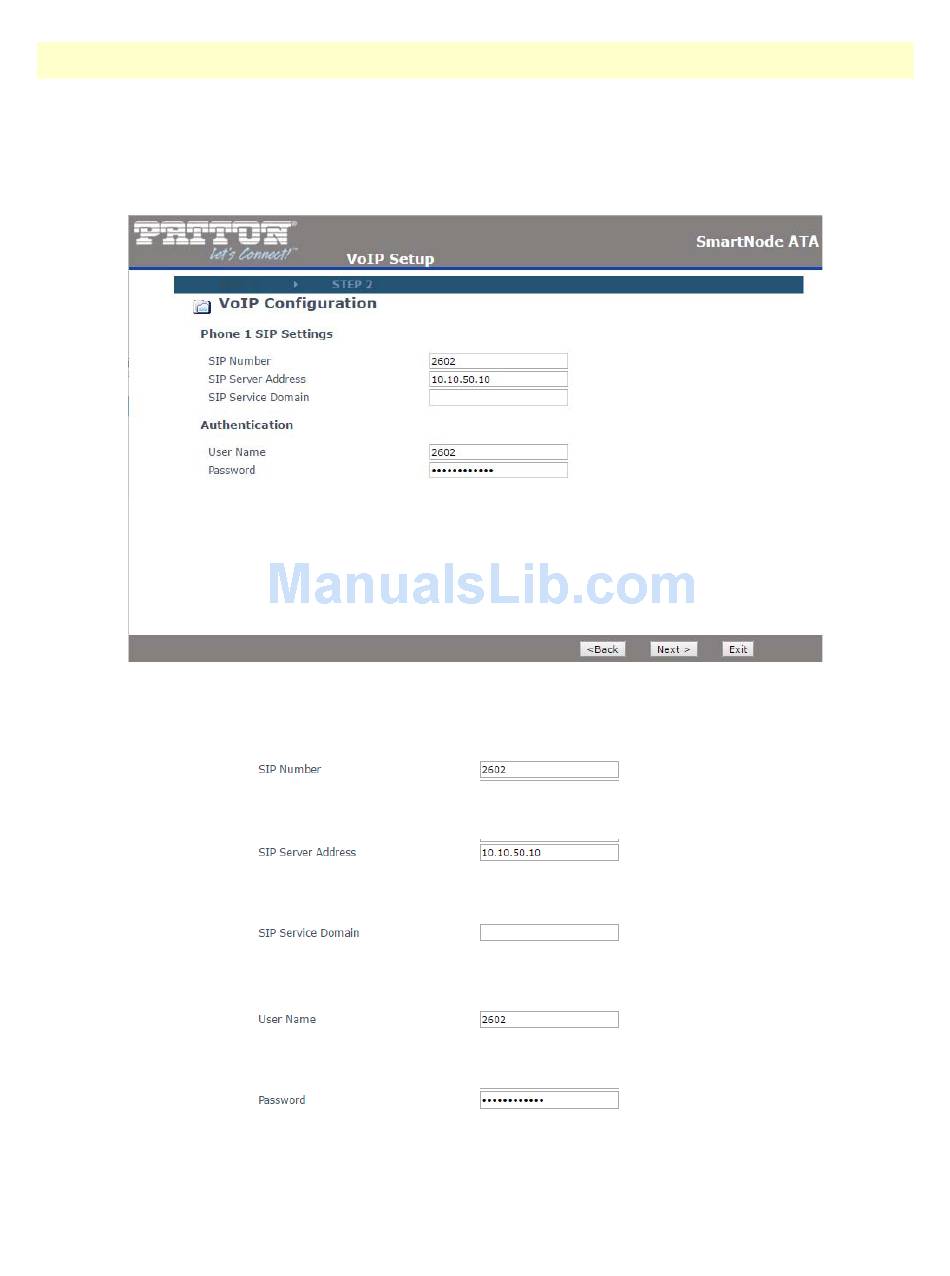

Figure 20. VoIP Configuration - Phone 1 window
2. Type the SIP number that was provided by your ISP in the SIP Number box.
3. Type the proxy address that was provided by your ISP in the SIP Server Address box.
4. Type the SIP domain that was provided by your ISP in the SIP Service Domain box.
5. Type the user name that was provided by your ISP in the Username box.
6. Type the password that was provided by your ISP in the Password box.
VoIP set up 39
