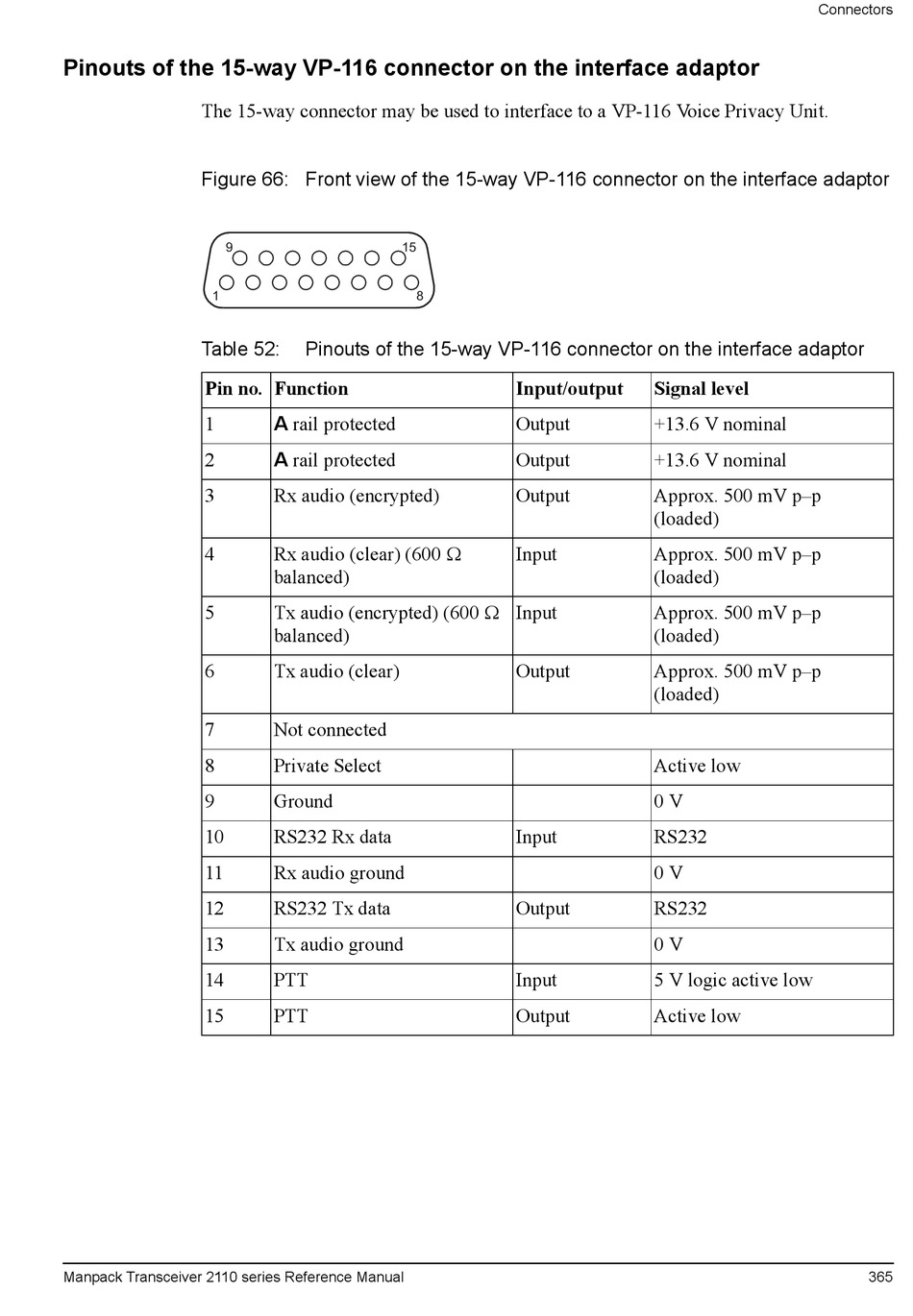

Pinouts of the 15-way VP-116 connector on the interface adaptor

The 15-way connector may be used to interface to a VP-116 Voice Privacy Unit.

Figure 66: Front view of the 15-way VP-116 connector on the interface adaptor

Table 52:
Pin no. Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Manpack Transceiver 2110 series Reference Manual
Pinouts of the 15-way VP-116 connector on the interface adaptor
A rail protected
A rail protected
Rx audio (encrypted)
Rx audio (clear) (600 
balanced)
Tx audio (encrypted) (600 
balanced)
Tx audio (clear)
Not connected
Private Select
Ground
RS232 Rx data
Rx audio ground
RS232 Tx data
Tx audio ground
PTT
PTT
Input/output Signal level
Output +13.6 V nominal
Output +13.6 V nominal
Output Approx. 500 mV p–p
(loaded)
Input Approx. 500 mV p–p
(loaded)
Input Approx. 500 mV p–p
(loaded)
Output Approx. 500 mV p–p
(loaded)
Active low
0 V
Input RS232
0 V
Output RS232
0 V
Input 5 V logic active low
Output Active low
Connectors
365
