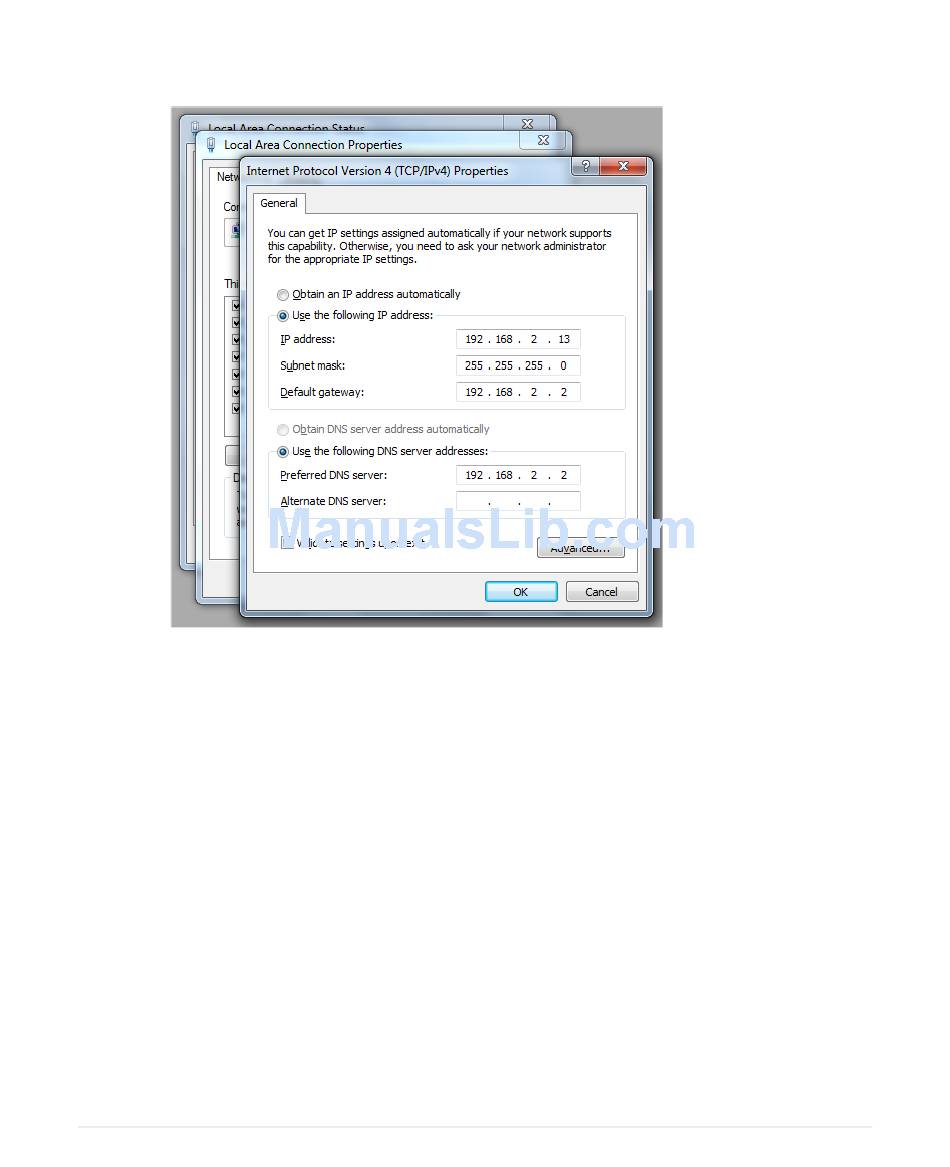

Figure 17. The Internet Protocol Version 4 (TCP/IP) properties dialog box

4 Select Use the following IP address (if it is not already active) and make the

following entries:

• IP address: 192.168.2.13 (or any address on the 192.168.2.x network other

than 192.168.2.2, which is in use by the SCG)

• Subnet mask: 255.255.255.0

• Default gateway: 192.168.2.2

• Preferred DNS server: 192.168.2.2

5 Leave the Alternate DNS Server field empty.

6 Click OK to save your changes and exit first the TCP/IP Properties dialog box,

then the Local Area Connection Properties dialog box. Your changes are put into

effect immediately.

You have completed preparing the administrative computer.

SmartCell Gateway 200 Getting Started Guide for SmartZone 3.5.1, 800-71517-001 Rev A

Preparing the Interface Settings and Administrative Computer

Preparing the Administrative Computer
