Mounting and Powering the SCG
Step 3: Install the Outer Rail Slides to the Rack Posts
Step 3: Install the Outer Rail Slides to the Rack
Posts
NOTE:
The two rail assemblies are NOT interchangeable. Each assembly needs to
be installed into the rack by its orientation (right or left) when standing in front of the
rack. The right rail assembly is identified with a BLUE sticker and the left rail assembly
is identified with a GREEN sticker.
Attach the outer rail slides to the rack posts using two #8-32 x 1/2 screws at the
front posts and two #8-32 x 1/2 screws at the rear posts.

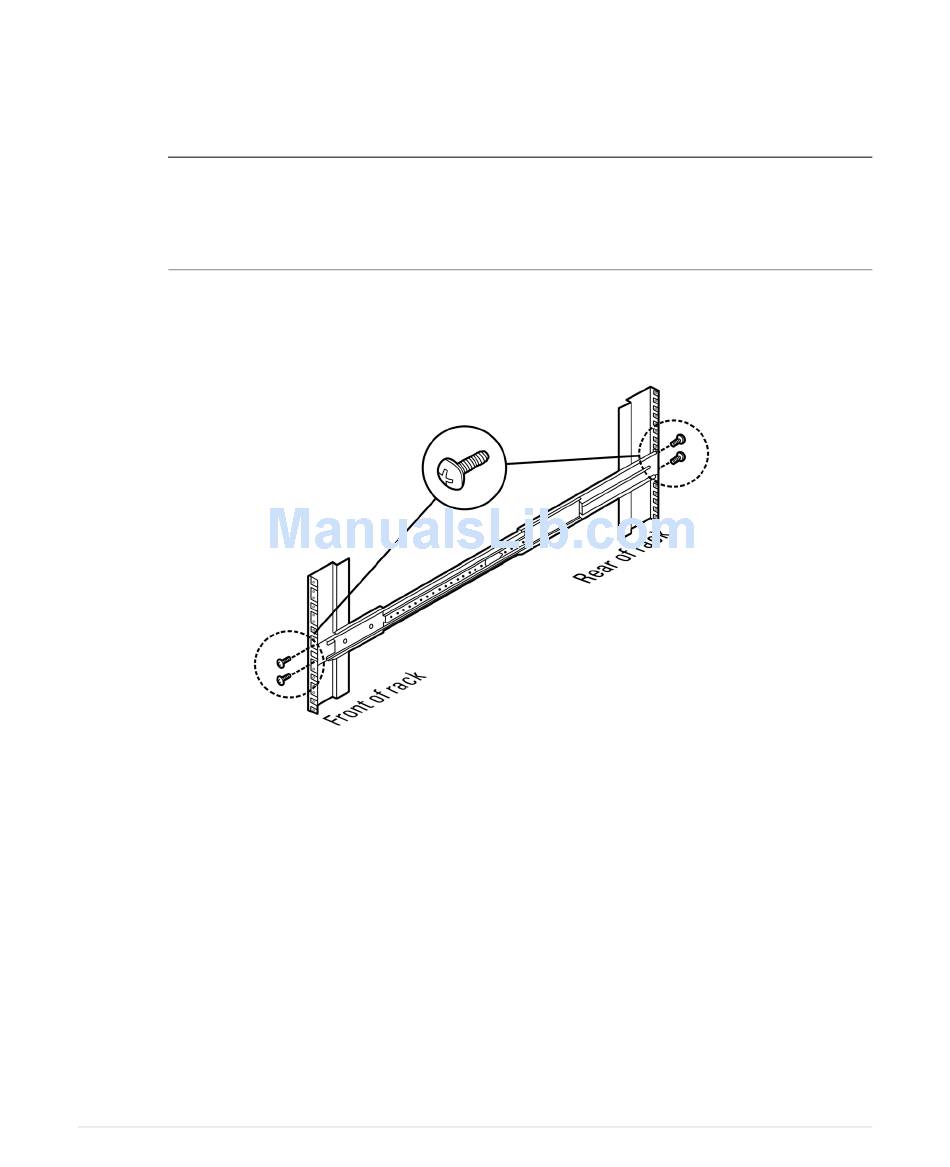

Figure 8. Installing the outer rails
24
SmartCell Gateway 200 Getting Started Guide for SmartZone 3.5.1, 800-71517-001 Rev A
