Mounting and Powering the SCG

Step 5: Install the Inner Rails on the Server

Install the inner rails onto the hex head shoulder screws, and then slide the inner

rails forward.

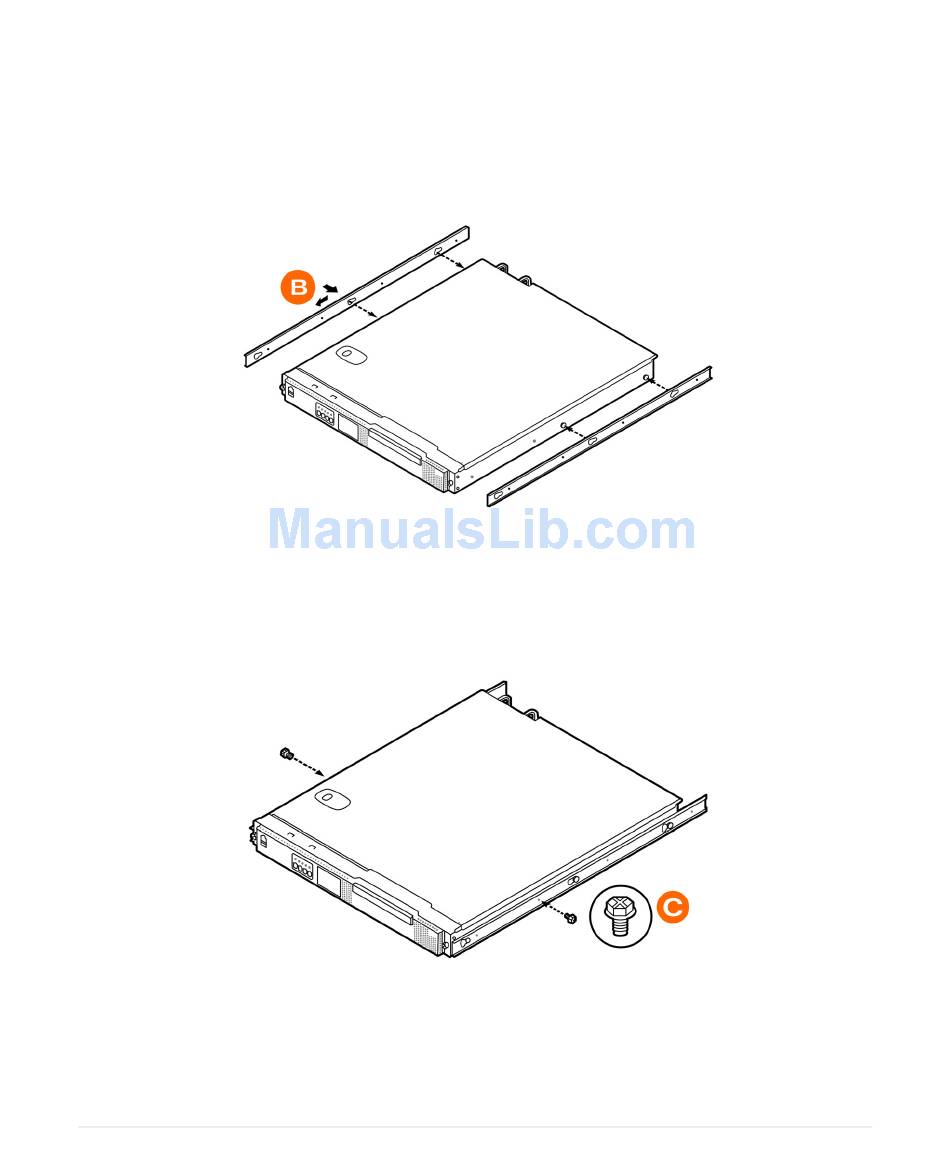

Figure 10. Installing the inner rails

Step 6: Fasten the Inner Rails to the Server

Secure the inner rails with one #6-32 x 1/4 screw for each rail.

Figure 11. Securing the inner rails

SmartCell Gateway 200 Getting Started Guide for SmartZone 3.5.1, 800-71517-001 Rev A
