Step 7: Attach the Mounting Ears to the Rail
Assembly

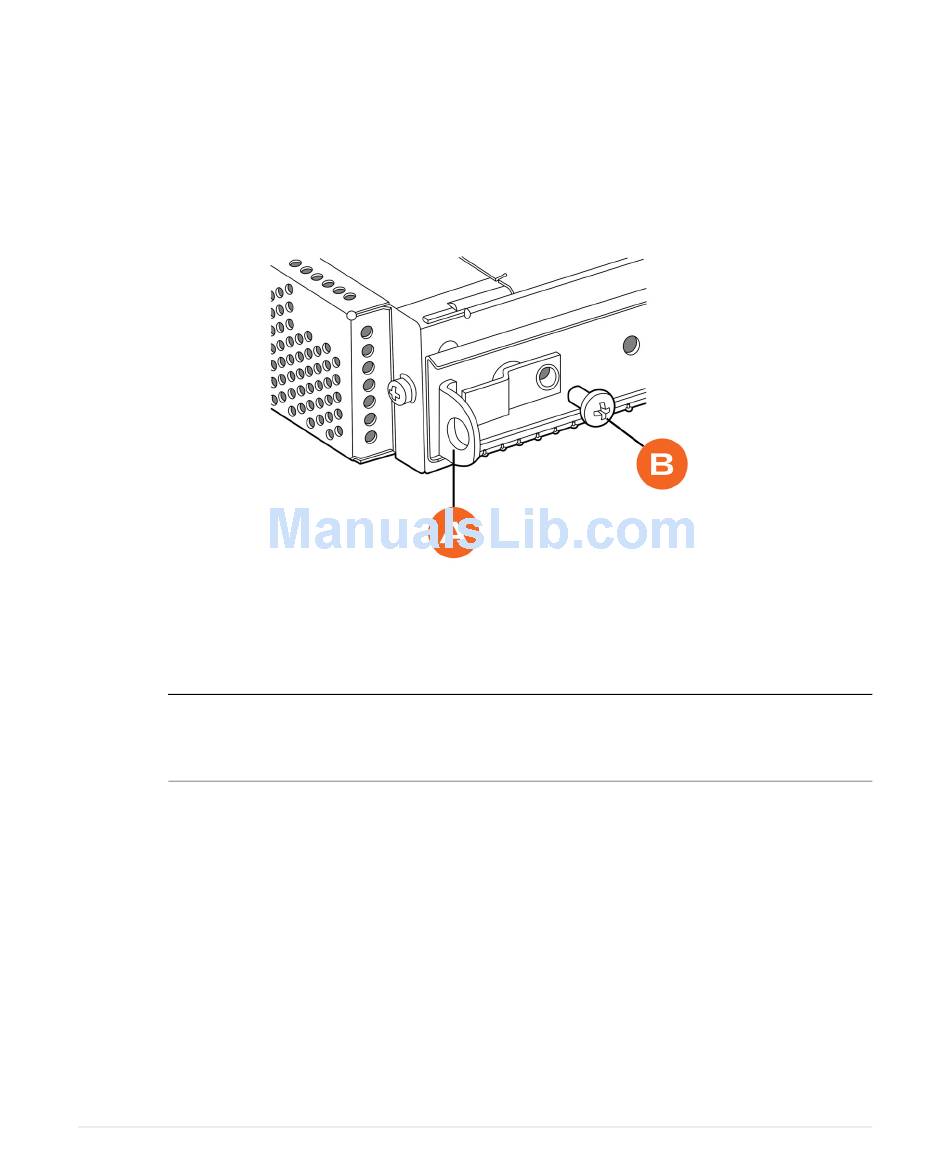

Attach the rack mounting ears (A) to each side of the server using the #10-32 x 3/
8 screws (B).
Figure 12. Attaching the mounting ears
Step 8: Slide the Rail Assembly into the Outer
Rails and Secure to the Rack
WARNING!
together to lift and slide the appliance into the rack. Ruckus Wireless strongly
recommends against one person attempting to perform this task alone.
1 Align the inner rails (attached to the server chassis) with the outer rail assemblies
(attached to the rack).
2 Engage the matching rails, and then slide the server chassis into the rack until
the two spring safety locks snap into position.
3 Press down the two spring safety locks (one on each side). See 1 in Figure 13.
4 Slide the server chassis all the way into the rack. See 2 in Figure 13.
5 Use the rack screws (#8-32 x 3/4) to secure the chassis and rack handles into
the rack. See 3 in Figure 13.
SmartCell Gateway 200 Getting Started Guide for SmartZone 3.5.1, 800-71517-001 Rev A
The controller is heavy (40 lbs/18.14kg). Two people should work
Mounting and Powering the SCG

Step 7: Attach the Mounting Ears to the Rail Assembly
