Elements of the Picture
Display
WFM5200 Waveform Monitor User Manual
In full-screen mode, there is no cropping. Pictures are decimated horizontally or
vertically to obtain the correct aspect ratio. This decimation may cause some
artifacts. This behavior may be evident on a sweep signal. Also see the online
help for the Picture Aspect Ratio for related information. Display can be set to
include Closed Captioning text or Teletext subtitles overlaid on the picture.
The VChip, CC-Display, Teletext, and Safe Area Graticule are described below:
(See Figure 41.)
1. VChip Area: Displays detected VChip ratings from any of these systems:
MPAA (US), TV (US), Canadian English, and Canadian French. VChip
information is labeled CA (Content Advisory).
2. Safe Graticules: SMPTE, BBC, and ARIB B-4 standards for safe area
graticules allow for selection of up to two Safe Area and two Safe Title
graticules. Custom graticules with adjustable areas can also be specified.
3. Closed Caption Text and Teletext Area: Displays closed captioning or
Teletext, configurable to decode to the following Closed Caption and Teletext
standards.
For Composite: CEA-608-line-21 (VBI), TeletextB VBI (PAL)
For SD: CEA-608-line-21, TeletextB VBI (625), CEA-608 (ANC),
CEA-608 (708), CEA-708, TeletextB VBI, TeletextB OP47 SDP (ANC),
and TeletextB OP47 Multi (ANC)
For HD and 3G: CEA-608 (ANC), CEA-608 (708), CEA-708, TeletextB
VBI, TeletextB OP47 SDP (ANC), and TeletextB OP47 Multi (ANC)

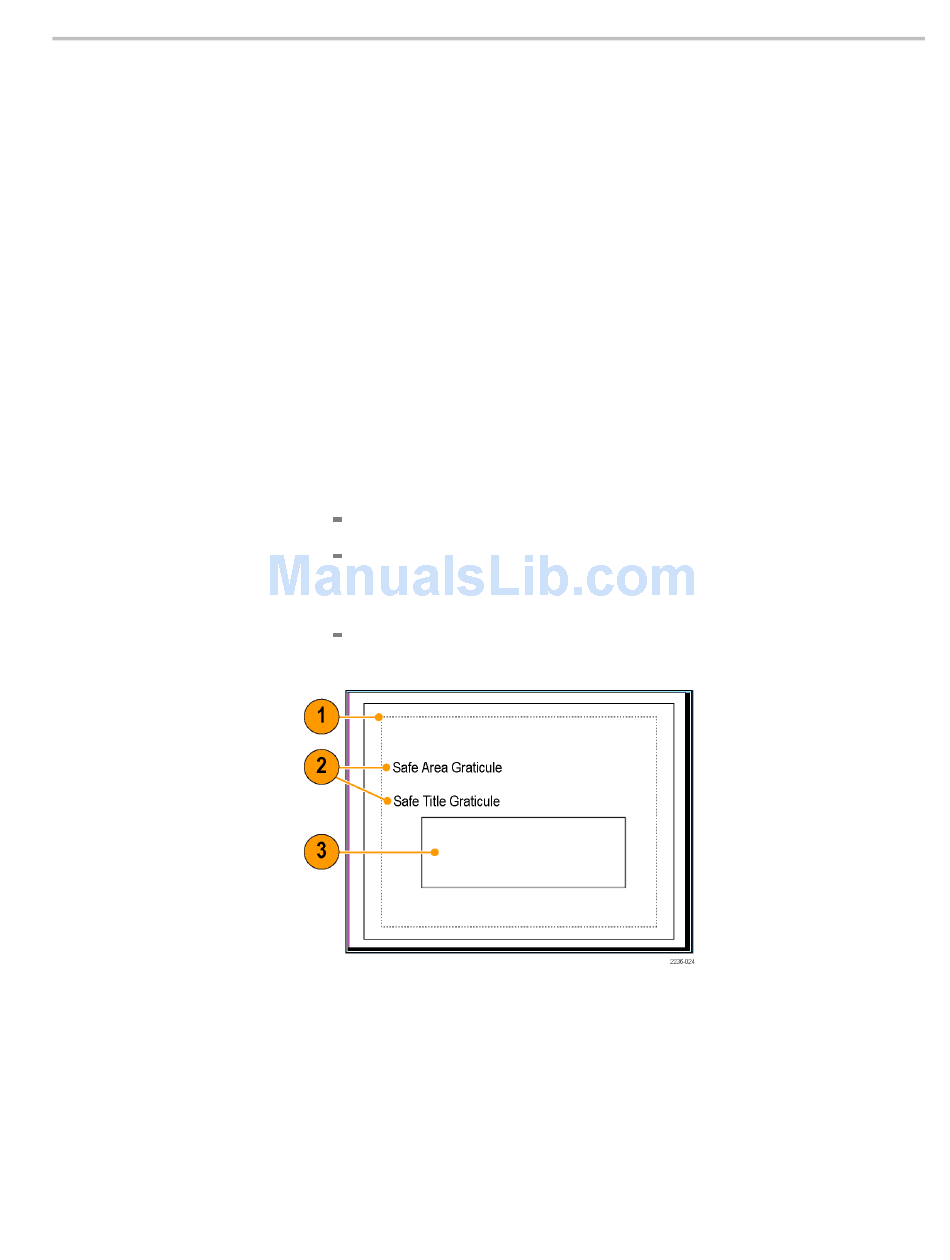

Figure 41: VChip, CC-Display, Teletext, and Safe Area Graticule in Picture display

Display Information
83
