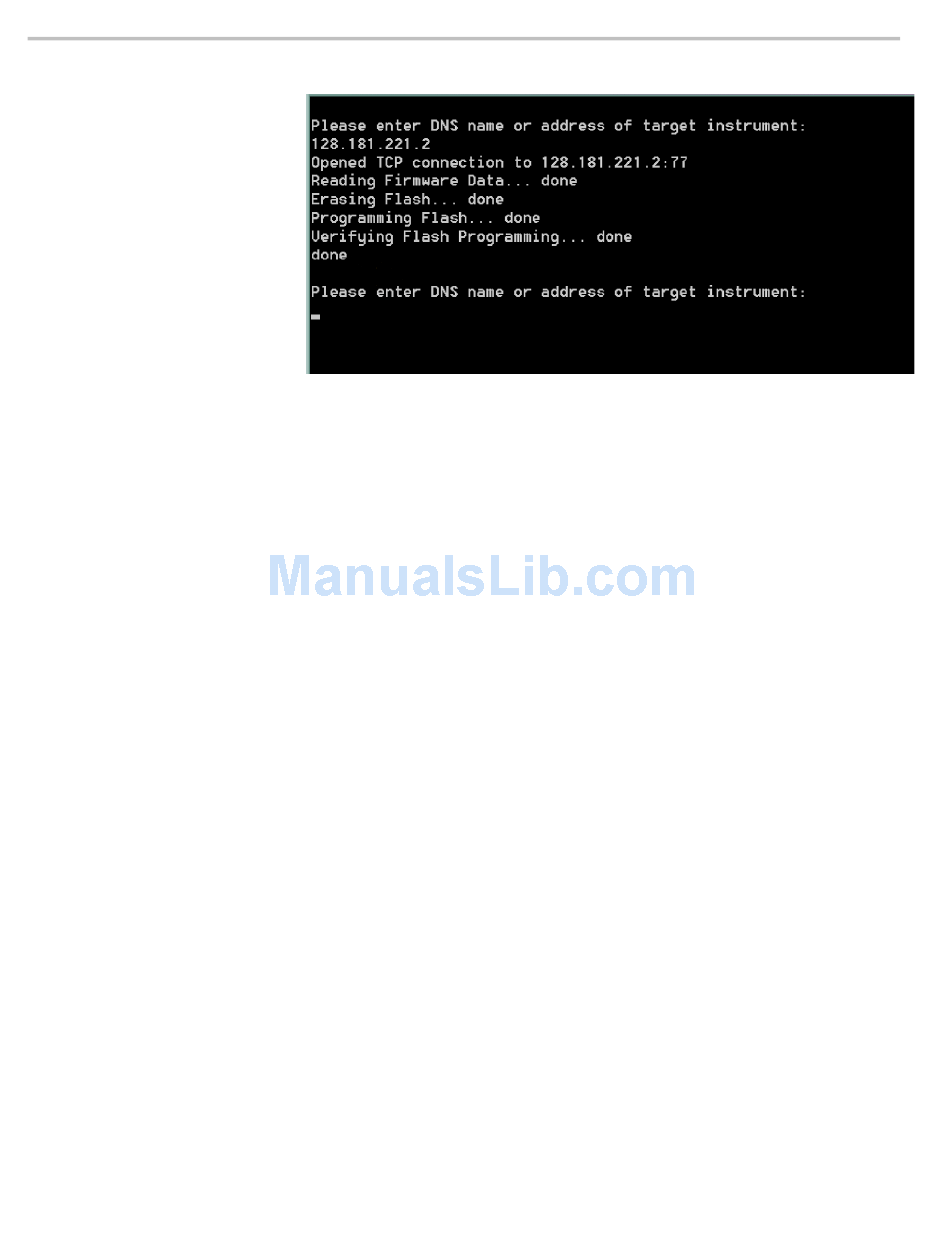

Figure 44: Sample of transfer.exe window after the upgrade is complete

6. If the instrument did not reboot at the completion of the software upgrade,
remove and then reapply power to the instrument to cause it to reboot.
1. If the instrument did not reboot at the completion of the software upgrade,
cycle the power to the instrument to cause it to reboot.
2. Press the CONFIG button on the front panel.
3. Navigate to Utilities > View HW/SW Version.
4. Verify that the software version number matches the version of the
software-upgrade package you installed.
If a power failure occurs during SW upgrade and the instrument has a blank screen
when you reapply power, perform the following procedure.
1. Make sure that an Ethernet cable is connected directly from your PC to the
instrument. You need a direct network connection. (See page 6, Connecting
Directly to a PC.)
2. Turn off the instrument (remove power).
3. Press and hold the left arrow key while you press the power button.
4. The instrument will turn on and the default IP address of 192.168.1.1 will
be set.
5. Set the IP address of your PC to 192.168.1.x, where x ≠ 1.
6. Enter the IP address of the instrument (192.168.1.1) for the upgrade transfer
application.
7. Start the upgrade process. When it is complete, the instrument should reboot.
If it does not, cycle the power.
