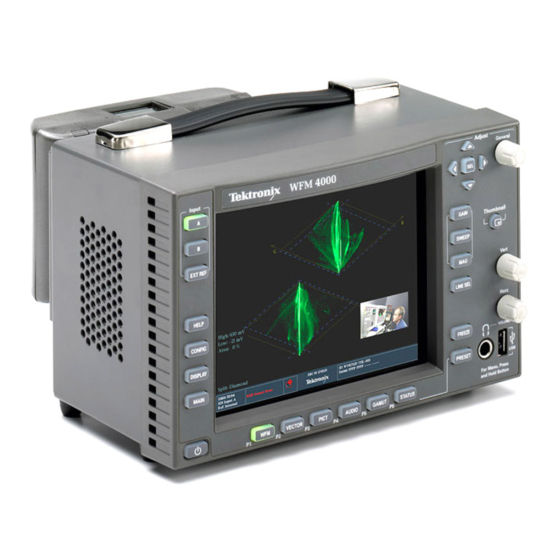

Tektronix WFM4000 Instructions Manual
Waveform monitors declassification and security
Hide thumbs
Also See for WFM4000:
- User manual (79 pages) ,
- Service manual (63 pages) ,
- System integration technical reference (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Tektronix WFM4000
Summary of Contents for Tektronix WFM4000
- Page 1 WFM4000 and WFM5000 Waveform Monitors Declassification and Security Instructions www.tektronix.com 071-2443-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ......................Clear and Sanitize Procedures..................Memory Devices....................Data Export Devices................... Troubleshooting..................... How to Clear or Sanitize a Non-Functional Instrument ........... How to Recover from Clearing or Removing Memory from the Instrument ......WFM4000 and WFM5000 Declassification and Security... - Page 4 Table of Contents WFM4000 and WFM5000 Declassification and Security...
-
Page 5: Preface
The instructions also describe how to declassify an instrument that is not functioning. These procedures can be useful for customers with data security concerns. Products The following Tektronix products are covered by this document: WFM4000 WFM5000 Related Documents... - Page 6 Preface WFM4000 and WFM5000 Declassification and Security...
-
Page 7: Clear And Sanitize Procedures
20 seconds SDRAM 16 M X 16 CPU RAM CPU access Main board None Remove the power source from the instrument for at least 20 seconds During normal instrument operation. WFM4000 and WFM5000 Declassification and Security... - Page 8 Set backlight Serial I2C brightness brightness to 100% brightness to 100% EEPOT 256 X 1 Battery volts low Factory/Service Backplane board None None Serial I2C calibration Battery voltage procedure error During normal instrument operation. WFM4000 and WFM5000 Declassification and Security...
- Page 9 Press the SEL button to remove all entries in the diagnostic log. c. Press the > button until the box by “Exit” is highlighted. d. Press the SEL button to exit the log display. 5. Press the CONFIG button to exit the configuration menu. WFM4000 and WFM5000 Declassification and Security...
- Page 10 Enter “000.000.000.000” for the IP address. d. Repeat for the Subnet Mask, Gateway Address, and SNMP Trap Address 1 through SNMP Trap Address 4. 5. Press the CONFIG button to exit the configuration menu. WFM4000 and WFM5000 Declassification and Security...
-
Page 11: Data Export Devices
6. Press the CONFIG button to exit the configuration menu. Enable Ethernet and SNMP To enable Ethernet and SNMP access, use the same procedures you would use to disable these devices, but select On to enable each device. Access Procedure WFM4000 and WFM5000 Declassification and Security... - Page 12 Clear and Sanitize Procedures WFM4000 and WFM5000 Declassification and Security...
-
Page 13: Troubleshooting
How to Clear or Sanitize a Non-Functional Instrument To sanitize a non-functional instrument, remove the Main board and return the instrument to Tektronix for installation of a new Main board. How to Recover from Clearing or Removing Memory from the Instrument Reload the system software according to the loading instructions.
