Signal Inputs and Outputs
22
In cases where this instrument is placed at the end of a link, you must install a
BNC termination on one side of the loop-through external reference connector.
The termination must be 75 Ω and DC coupled. (See Figure 8.)

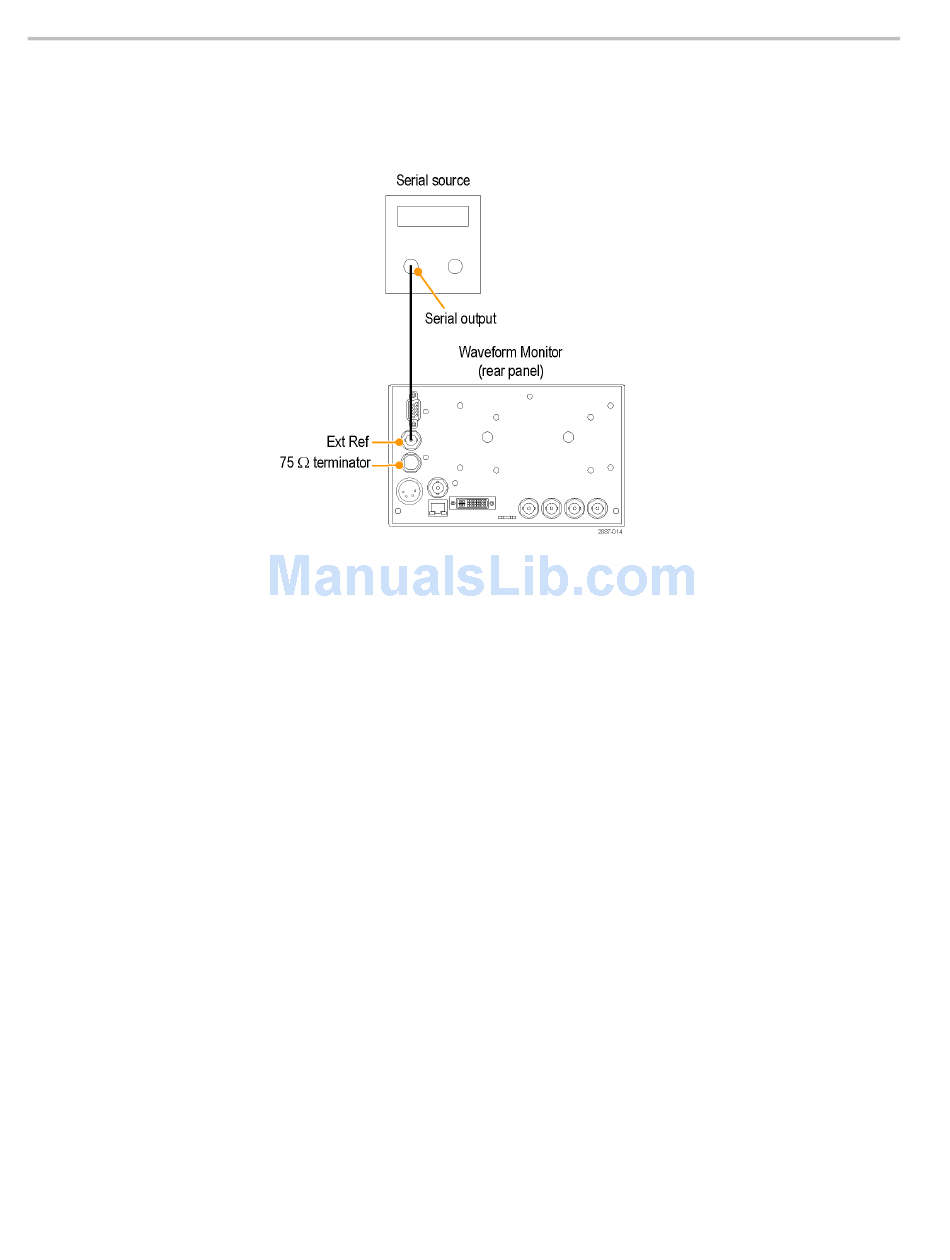

Figure 8: External reference signal connection
WFM5200 Waveform Monitor User Manual
