Signal Generation

WFM5200 Waveform Monitor User Manual
If this instrument has Option GEN installed, it can generate SD-SDI and HD-SDI
signals. With Option 3G and Option GEN installed, it can also generate a 3 Gb/s
test signal. (See Figure 9.)
Three types of signals can be generated in SD (525,625), HD (720, 1080), and 3G
Level A and Level B formats:
75% bars
100% bars
Pathological
For more information about these signals, see the appropriate SMPTE standard.

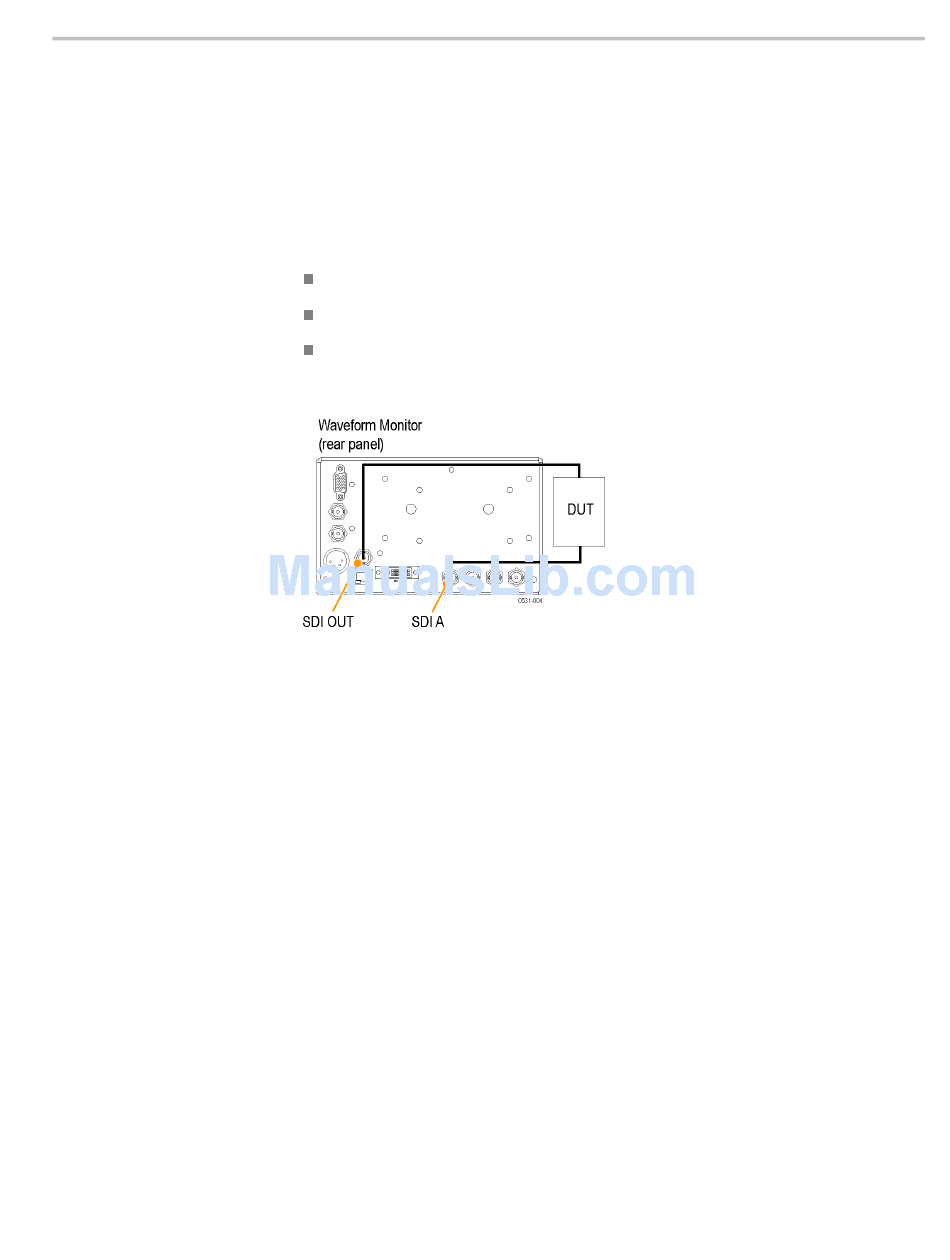

Figure 9: Signal generation connection

After you have connected the signals, press the CONFIG button on the front panel
of the instrument and navigate to the Outputs submenu. From this submenu,
select the test signal pattern, level, and format you want to generate.
