WFM520UP and WVR520UP
xx

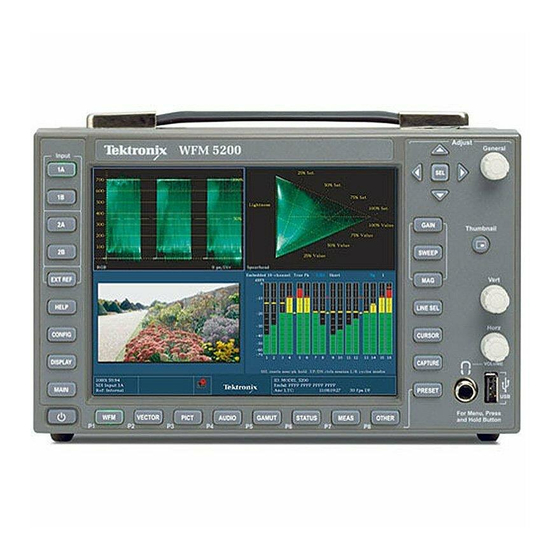

WFM5200 Waveform Monitor and
WVR5200 Waveform Rasterizer
Upgrade Kit
ZZZ
Instructions
Warning
The servicing instructions are for use by qualified personnel
only. To avoid personal injury, do not perform any servicing
unless you are qualified to do so. Refer to all safety summaries
prior to performing service.
www.tektronix.com
*P075102600*
075-1026-00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix WFM520UP
Summary of Contents for Tektronix WFM520UP
- Page 1 WFM520UP and WVR520UP WFM5200 Waveform Monitor and WVR5200 Waveform Rasterizer Upgrade Kit Instructions Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
General Safety Summary ..................Kit Description...................... Products......................Installation Requirements ..................Kit Parts Lists ....................Upgrade Installation ....................Verify the Currently Installed Options............... Install the Software Upgrade ................. Install the Option Software Key................Verify the Upgrade.................... WFM520UP and WVR520UP Upgrade Kit Instructions... - Page 4 Table of Contents WFM520UP and WVR520UP Upgrade Kit Instructions...
-
Page 5: General Safety Summary
Avoid Exposed Circuitry. Do not touch exposed connections and components when power is present. Use Proper AC Adapter. Use only the AC adapter specified for this product. WFM520UP and WVR520UP Upgrade Kit Instructions... - Page 6 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: WFM520UP and WVR520UP Upgrade Kit Instructions...
-
Page 7: Kit Description
Adds Audio Loudness monitoring capabilities (requires that Option AUD is installed). Option PROD Adds Advanced Gamut Monitoring Package (Spearhead Display and Luma Qualified Vector Display). Products All models of the following Tektronix instruments are supported by this kit: WFM5200 Waveform Monitors WVR5200 Waveform Rasterizers WFM520UP and WVR520UP Upgrade Kit Instructions... -
Page 8: Installation Requirements
1 EA ENVELOPE, IMPORTANT DOCUMENTS; CONTAINS SOFTWARE OPTION KEY 1 EA 075-1026-XX INSTRUCTIONS; WFM520UP and WVR520UP UPGRADES (this document) —— 1 EA OPTION KEY LABEL —— 1 EA OPTION KEY CERTIFICATE (8.5 X 11, PRINTED) WFM520UP and WVR520UP Upgrade Kit Instructions... -
Page 9: Upgrade Installation
1. Power on the instrument you are upgrading. 2. Press the CONFIG button on the front panel. 3. Navigate to Utilities > View Instrument Options. 4. Make a list of the installed options. List installed options WFM520UP and WVR520UP Upgrade Kit Instructions... -
Page 10: Install The Software Upgrade
Instrument Software version number 3. Verify the latest version of software at the Tektronix Web site: a. Use the Web browser on a PC to navigate to the following Tektronix Web site: http://www.tektronix.com/downloads b. On the Downloads Finder Web page, search by model number (such as WFM5200) and filter by software and software type to locate the... - Page 11 Once the instrument has started to erase internal flash, DO NOT remove power from the instrument. If you do so, the instrument flash will be corrupted. The instrument will have to be sent to a Tektronix factory service center to have the system software restored.
- Page 12 PC directly to the instrument. NOTE. If you selected DHCP mode, the network automatically assigns the instrument an IP address. e. Press the CONFIG button on the front panel to close the menus. WFM520UP and WVR520UP Upgrade Kit Instructions...
- Page 13 Figure 1: Sample of transfer.exe window after the upgrade is complete 6. If the instrument did not reboot at the completion of the software upgrade, remove and then reapply power to the instrument to cause it to reboot. WFM520UP and WVR520UP Upgrade Kit Instructions...
- Page 14 7. Start the upgrade process. When it is complete, the instrument should reboot. If it does not, cycle the power. If you continue to experience a problem, contact your Tektronix sales representative for assistance. WFM520UP and WVR520UP Upgrade Kit Instructions...
-
Page 15: Install The Option Software Key
On the PC, open your Web browser application. b. In the address bar of the Web browser, enter the IP address of the instrument you are upgrading. This opens the Tektronix WFM5200 Remote Interface screen. c. Click the Instrument Options link to open the Active WFM5200 Options screen. -
Page 16: Verify The Upgrade
NOTE. If the option(s) you just installed are not listed or if your previously installed options are not listed, contact Tektronix for assistance. 3. Verify that the instrument passes the advanced diagnostic tests by performing the following steps: a.
