To Display CC
WFM5200 Waveform Monitor User Manual
Closed Captioning (CC), Teletext, AFD, and Safe Area Compliance

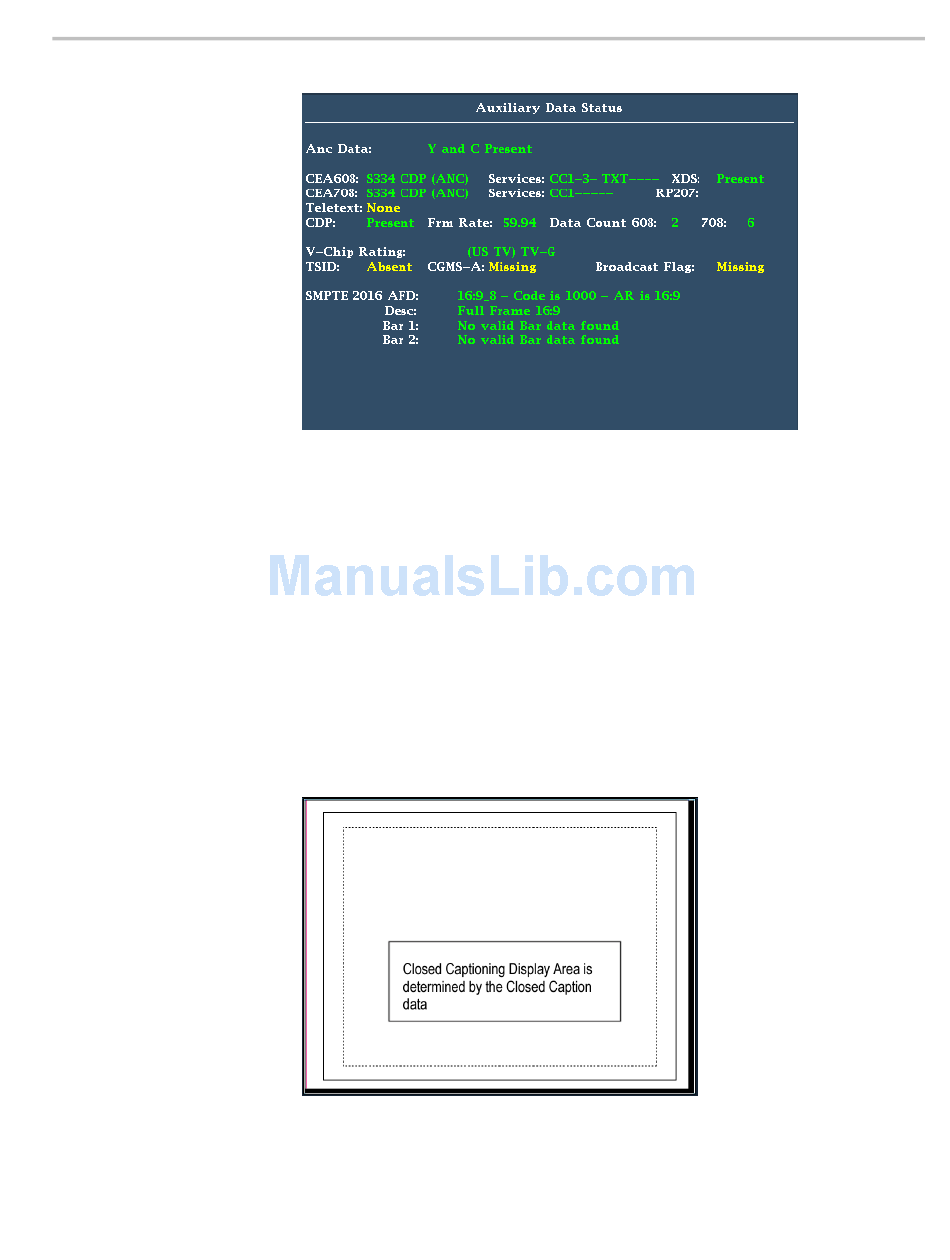

Figure 59: Auxiliary Data Status display

1. Select a tile.
2. Press and hold the PICT button to display the Picture pop-up menu.
3. Select CC/Teletext Format and select the CC type, if any, you want to
display.
4. Select the channel, service, or page to display.
The Picture display includes Closed Captioning in the area designated by the
Closed Caption data. (See Figure 60.)
5. Press the PICT button again to dismiss the Picture pop-up menu.
Figure 60: Closed caption display area
