TandemVu® (Overlay) Display
WFM5200 Waveform Monitor User Manual
TandemVu® is a patented display that allows you to overlay the Waveform and
Vector or Waveform and Lightning displays, plus Picture Thumbnail, in a single,
full-tile display. You can then view Waveform and Vector displays, or Waveform
and Lightning displays, at the same time. This feature allows you maximum
visibility of each trace.
You can overlay the Vector display on the WFM display or the WFM display over
the Vector display. Both overlay options are selected in the display pop-up menus.
If you want to overlay the Lightning display, first select Lightning from the Vector
menu, and then proceed to select overlay.
To enable TandemVu®, do the following:
1. Press and hold the MAIN button.
2. Check that Display Overlay is highlighted.
3. Press the SEL button to highlight WFM & VEC.
The screen will now show the displays overlayed. (See Figure 18.)

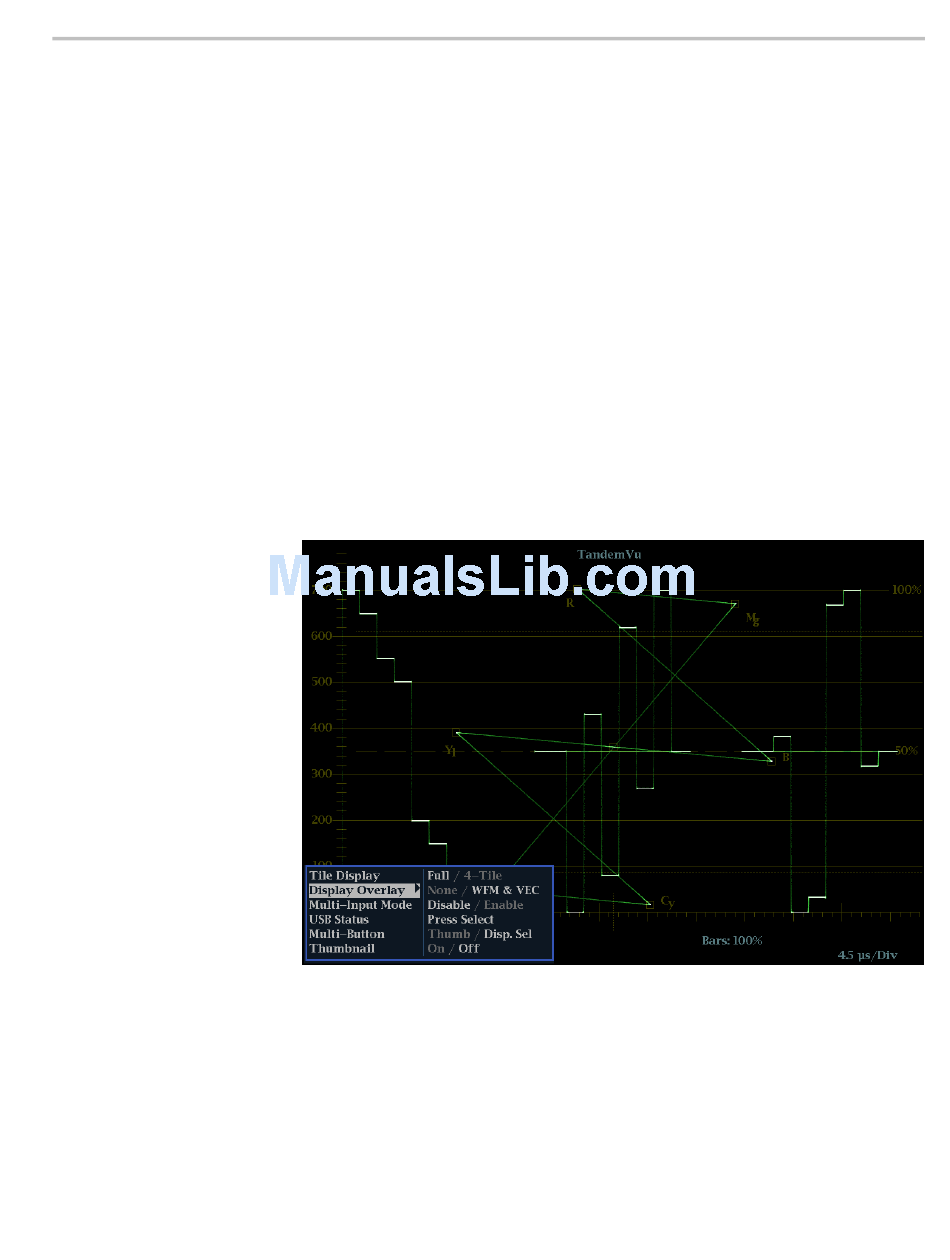

Figure 18: TandemVu® (Overlay) display and menu option
Display Information
41
