Display Information
Quick Selection of 1-8
or 9-16 Channels of
Embedded Audio

Picture Display

82
1. Select a tile.
2. Press and hold the Audio button to open the Audio display in a tile and view
the Audio pop-up menu.
3. Select Audio Input and then select Emb. 1-8 or Emb. 9-16.
Pressing the PICT button calls up the Picture display, which lets you see the
picture generated by the video signal. You can choose to display the picture
with or without a Picture Frame, VChip, Closed Captioning (CC), Teletext, and
Safe Area Graticules. (See Figure 40.) (See page 131, Closed Captioning (CC),
Teletext, AFD, and Safe Area Compliance.)

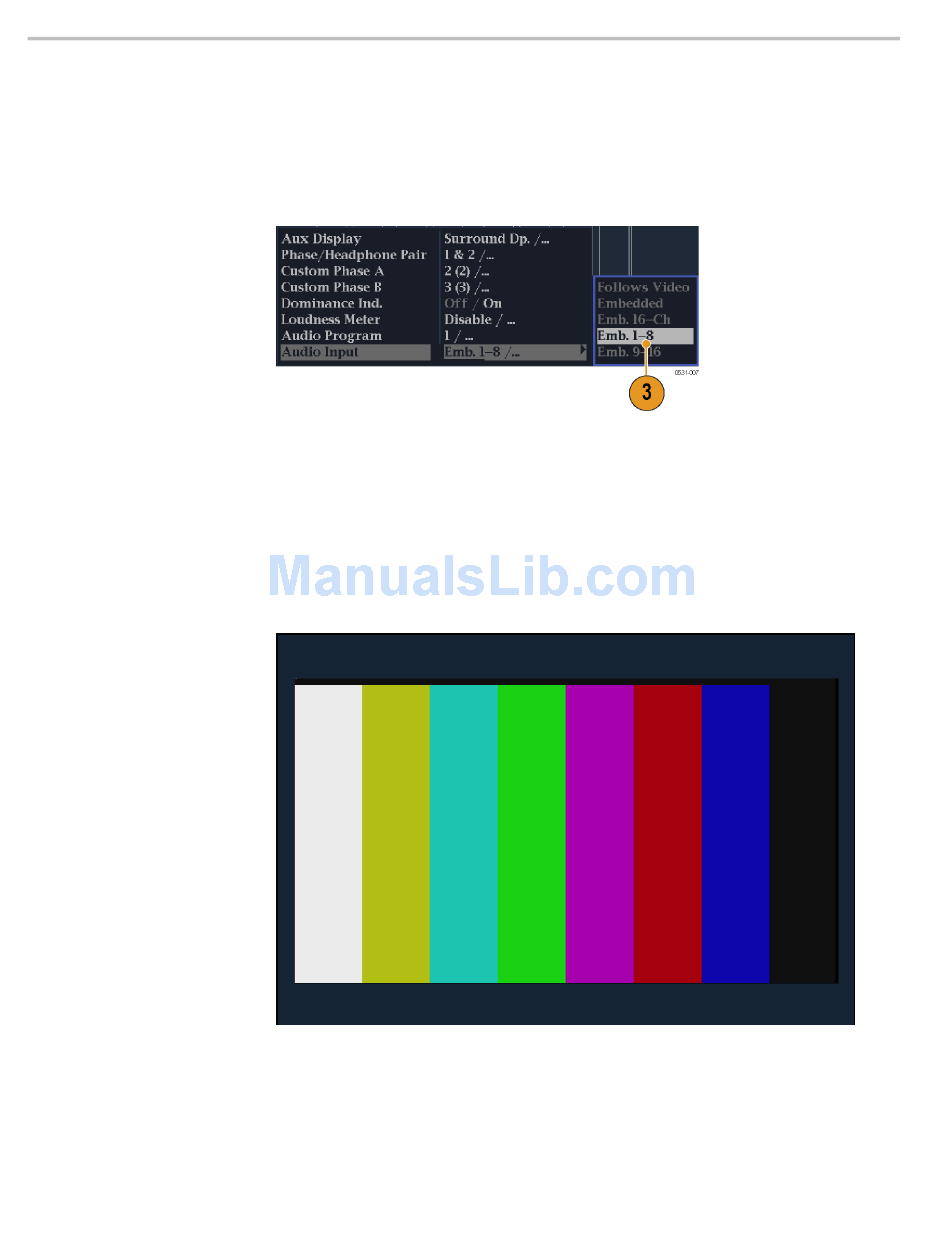

Figure 40: Picture display showing color bars
