Display Information

Vector Display

38
To cancel any horizontal or vertical position adjustments and restore the trace to
the default position, select Center Waveform and press SEL. For a tile in WFM
mode, this puts the baseline at the zero graticule.
The VECT button calls up the Vector and Lightning displays, which provide for
selection between two plots of the color portions of the signal. (See Figure 16.)
(See Figure 17.)

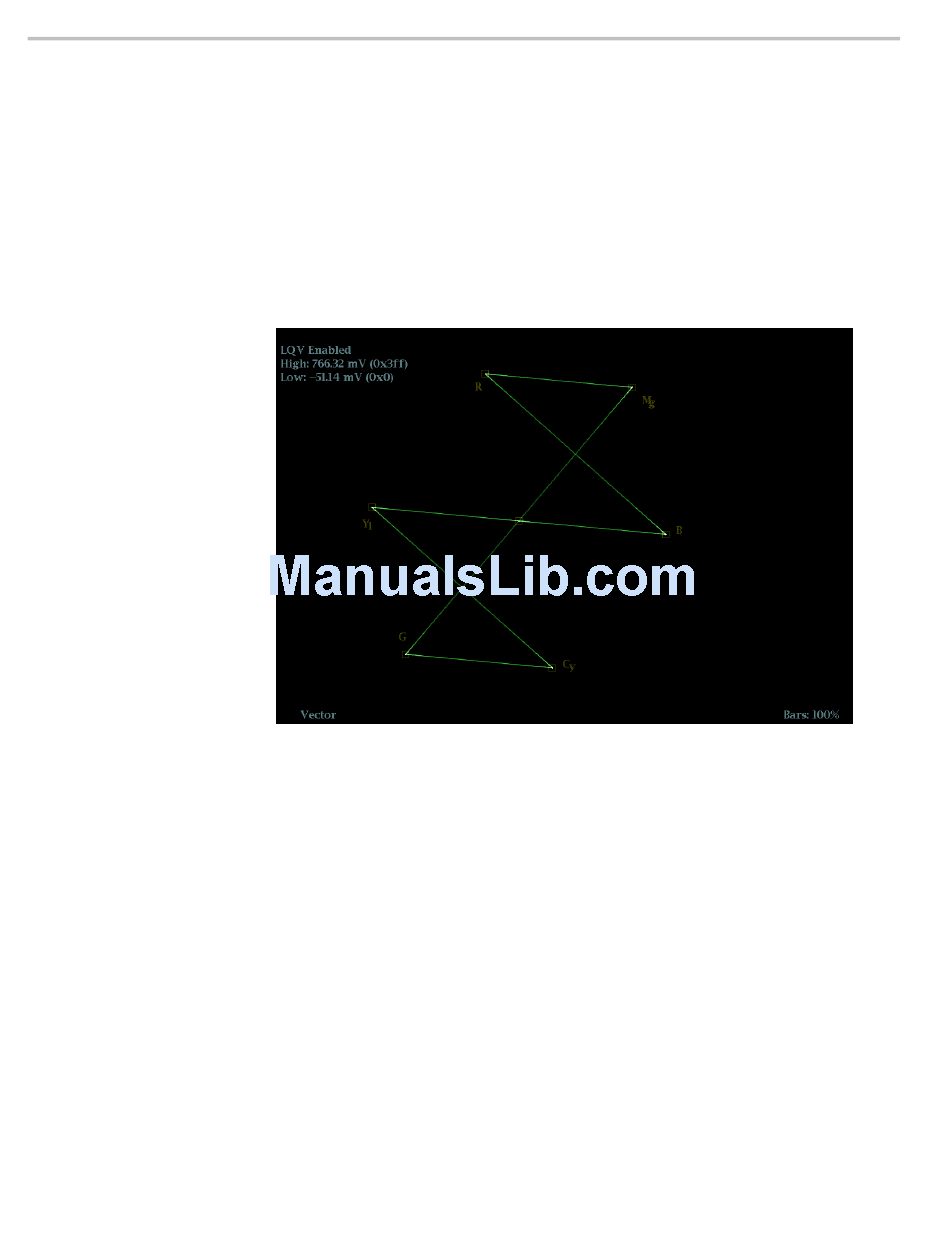

Figure 16: Vector display with Luma Qualified Vector (LQV) enabled
WFM5200 Waveform Monitor User Manual
