Diagnostics Monitor Display

WFM5200 Waveform Monitor User Manual
The Diagnostics Monitor Display is accessed from the OTHER button. This
multiple page display allows you to view system diagnostics information such as
temperature, fan speed, and power supply readings. This display is independent of
the input video signal. (See Figure 26.)

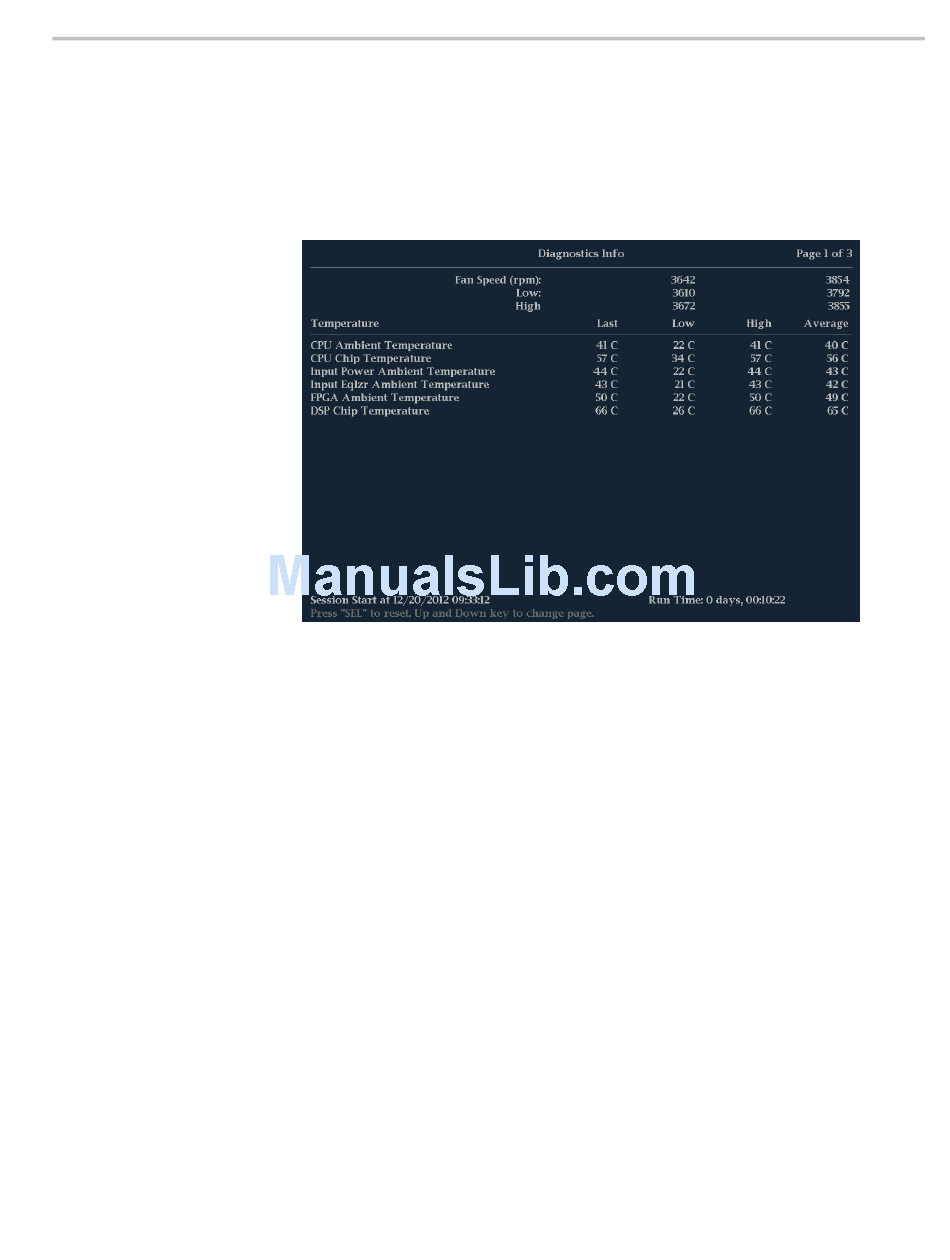

Figure 26: Diagnostics monitor display

To navigate the Diagnostics Monitor pages. Press the up or down arrow key to
move from one page to another.
To reset all of the diagnostics. Press the SEL button to reset all of the diagnostics
readings on all pages of the display.
