Display Information

Datalist Display

Elements of the Datalist
Display
50
The Datalist Display is accessed from the MEAS button when Option DATA is
installed. This display allows you to see SD, HD, or 3 Gb/s data without any
interpolation.
The Datalist tool examines the contents of all digital formats, structures, and
transports (SD, HD, dual-link, 3 Gb/s, 4:2:2, 4:4:4, and others). Datalist works
for all signals except composite signals (analog NTSC and analog PAL). From
the display screen, you can select and isolate specific lines and words from the
video or data stream. (See Figure 22.)

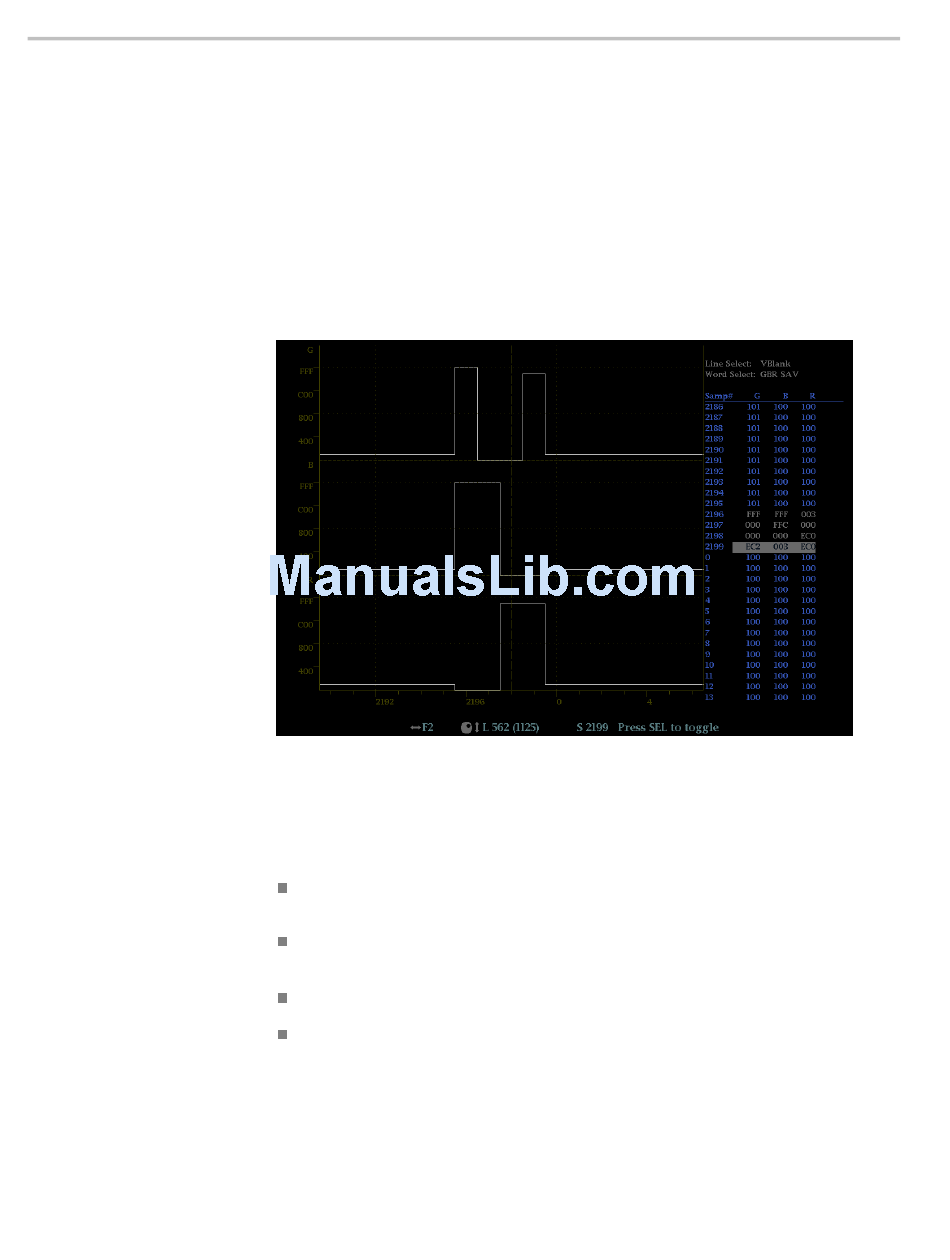

Figure 22: Datalist display

Use the navigation text on the bottom of the display screen to select line and
sample items using the arrow keys and the General knob.
Line Select: Shows which line is selected; press the SEL button to switch
between Line Select and Word Select.
Word Select: Shows which word is selected; press the SEL button to switch
between Line Select and Word Select.
Samp#: Shows the sample number.
Y0, Cb, Cr, Y1: These labels change based on the signal, but they show
the line number for each component.
