Closed Captioning (CC), Teletext, AFD, and Safe Area Compliance
4. Select one of the following:
Auto to let the instrument automatically select the size and offsets of the
safe area.
4x3, 14x9, or 16x9 to set the safe area size and offsets appropriate for
these aspect ratios based on the selected standard.
Custom_1 or Custom_2 to set the safe area size and offsets to match the
custom settings in the Graticules Configuration menu.
5. After setting each Safe Area selection, press the PICT button to dismiss the
pop-up menu.
The Safe Action Area shows the maximum image area within which all
significant action should be contained; the Safe Title Area shows the
maximum image area within which all significant titles should be contained.
(See Figure 61.)
Safe Area Graticules can globally be configured to comply to accepted
standards in the Configuration menu.
Custom selections for vertical and horizontal size and offset of the Save Areas
can be set in the Configuration menu.

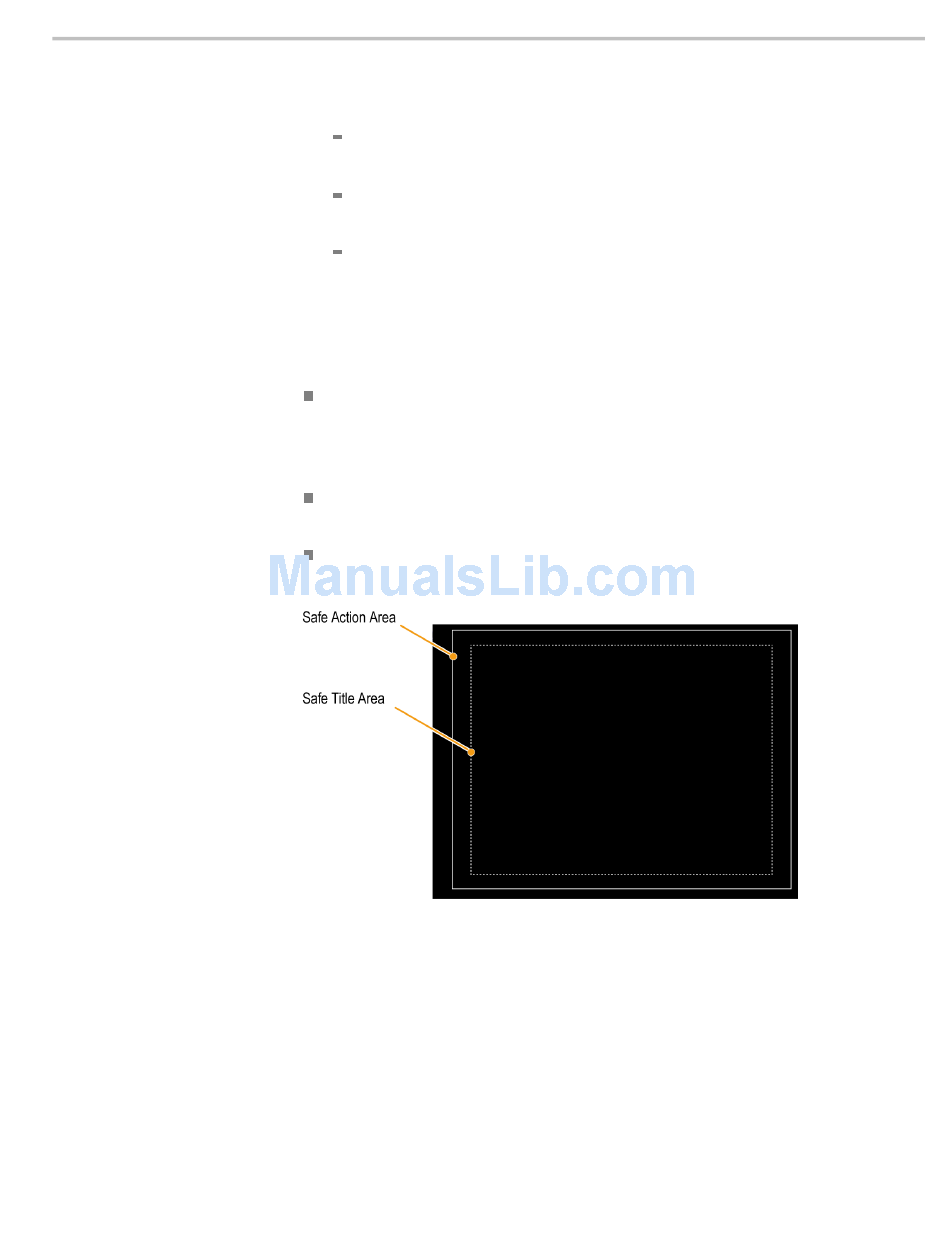

Figure 61: Safe Action and Safe Title areas
