ARIB Displays
ARIB STD-B.37 Display and Status Screens
112
The ARIB STD-B.37 display shows the decoded data for video signals using
ancillary data compliant with ARIB STD-B.37. (See Figure 51.) When this
display is selected, the instrument searches the signal for ARIB STD-B.37 packets
using the DID/SDID combinations defined by ARIB.

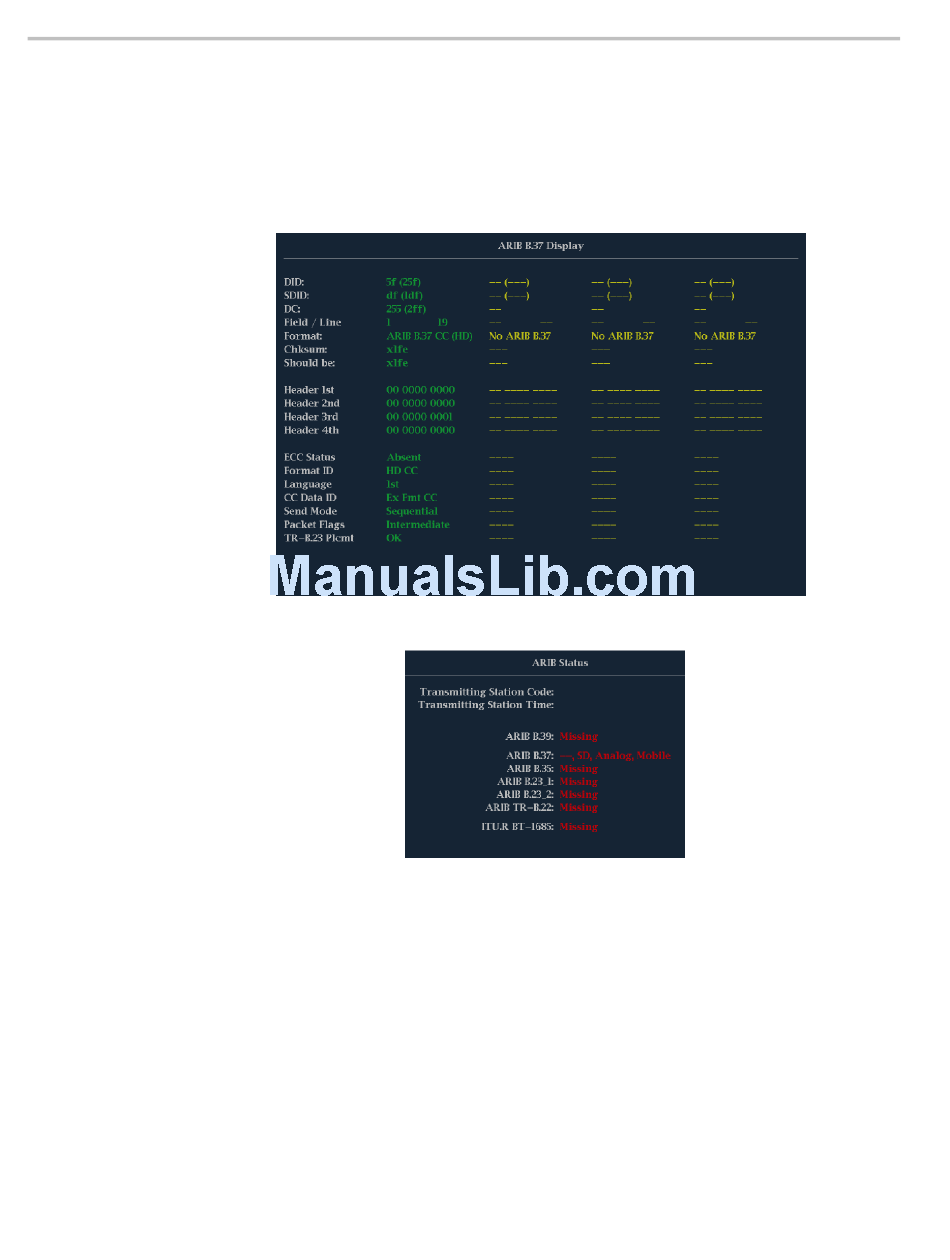

Figure 51: ARIB STD-B.37 display (with the associated ARIB Status display)
WFM5200 Waveform Monitor User Manual
