Figure 34: Audio Control Packet Structure; Figure 35: Audio Control Display - Tektronix WFM5200 User Manual

Display Information
70

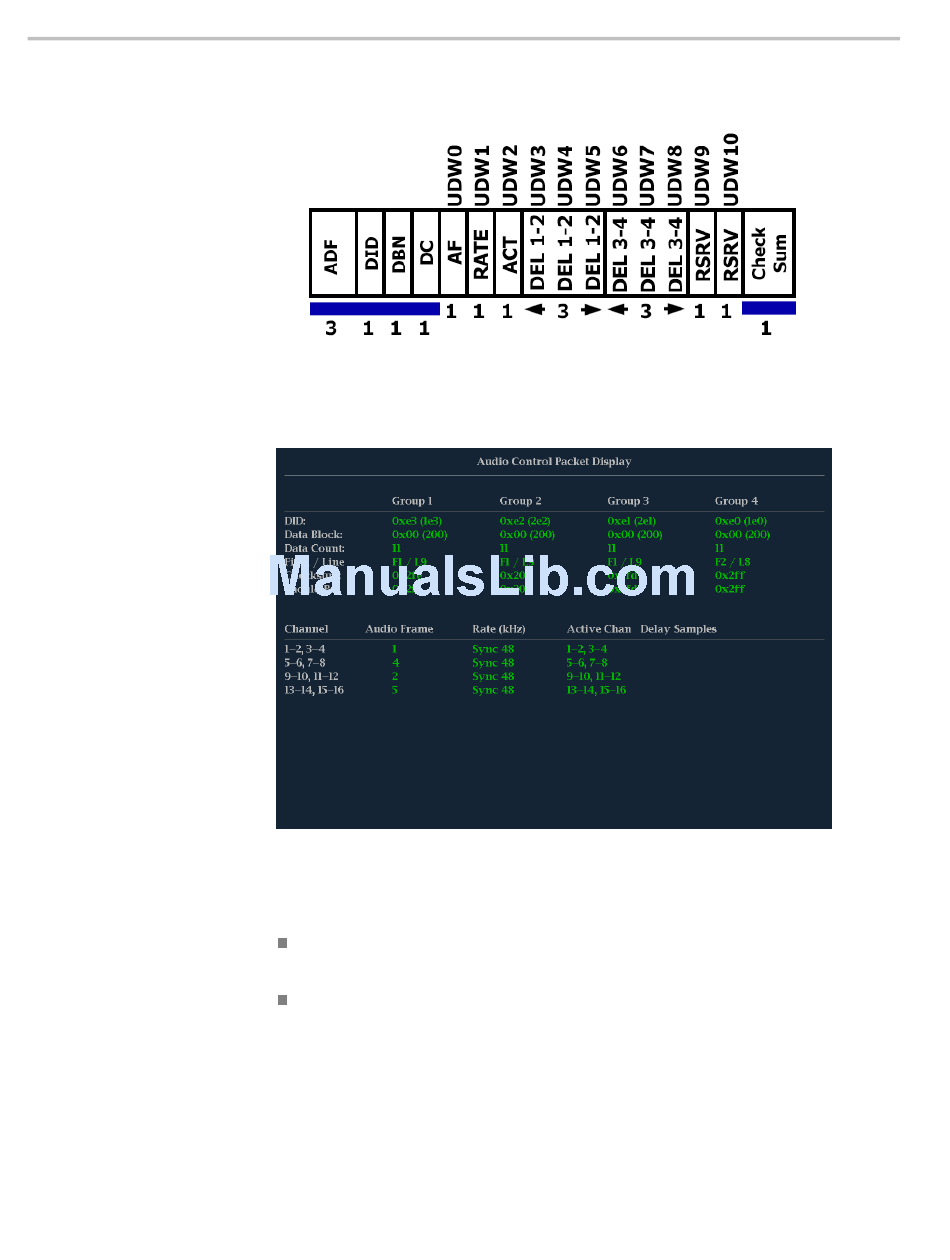

Figure 34: Audio Control Packet structure

Figure 35: Audio Control display

Elements of the Audio Control display.
Group 1 through n: Shows the audio group number of the audio control
packet to be used for decoding.
DID: Shows the Data Identifier of the ancillary data packet for the audio
control packet. For specific information about permissible DID values, view
the help file in your instrument: while the Audio Control display is active in a
tile, press the HELP button and follow the link at the bottom of the page to
Audio Control Packet Display Elements.
