Figure 12: Simultaneous 3D Display Of Left Eye And Right Eye Signals - Tektronix WFM5200 User Manual

Display Information
SyncVu™ and SIM SIM is ideal for by simultaneously monitoring the Left Eye signal and the Right
Eye signal. You can use SyncVu™ in conjunction with SIM when input A is
Monitoring of 3D
used for the Left Eye and input B is used for the Right Eye. When SyncVu™ is
enabled, the Left and Right tile displays are synchronized, so that if a Picture
display is selected for Tile 1, Tile 2 will automatically show a Picture display
in exactly the same mode as Tile 1. This enables you to quickly configure the
instrument identically for Left and Right Eye 3D monitoring.
NOTE.
SIM and 3D measurements and displays are included with Option SIM
and Option S3D, respectively.

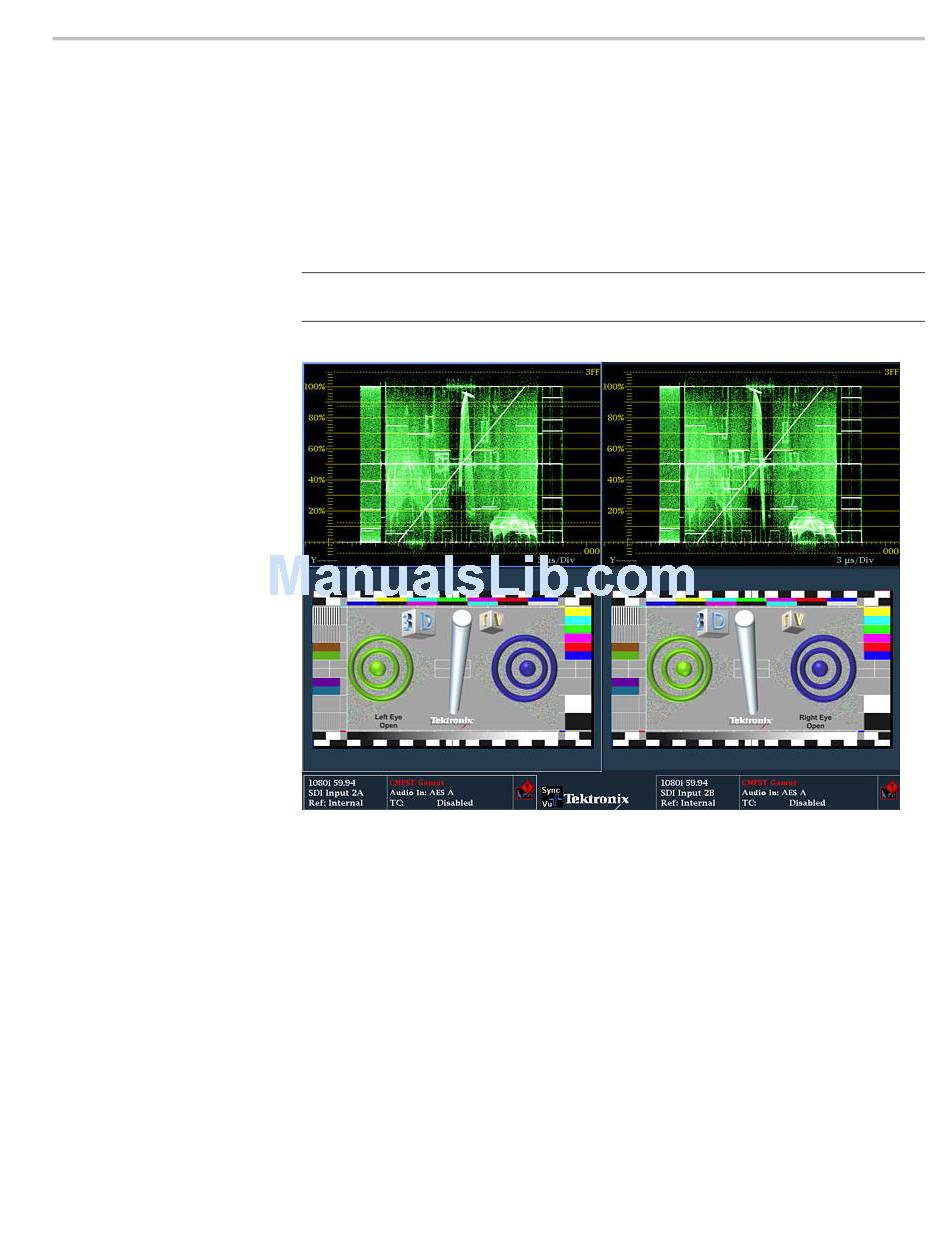

Figure 12: Simultaneous 3D display of Left Eye and Right Eye signals
