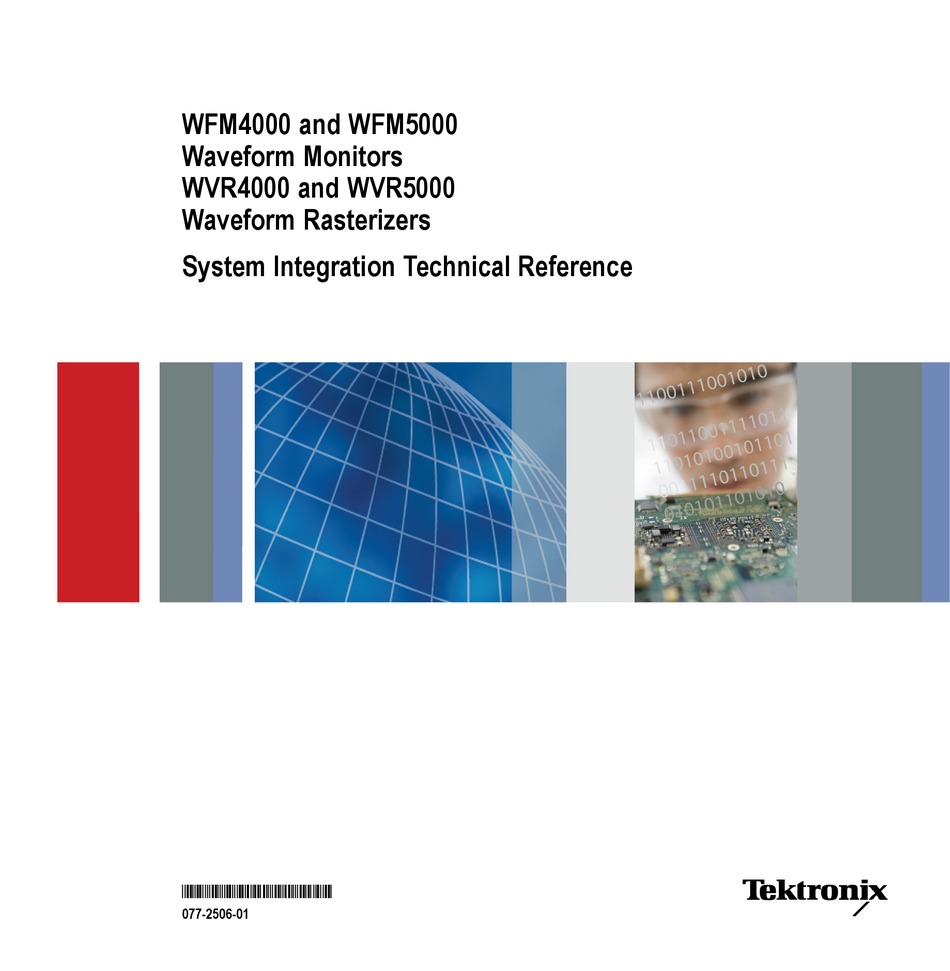

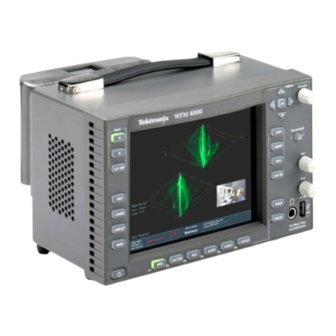

  • Page 1 WFM4000 and WFM5000 Waveform Monitors WVR4000 and WVR5000 Waveform Rasterizers System Integration Technical Reference *P077250601* 077-2506-01...
  • Page 3 WFM4000 and WFM5000 Waveform Monitors WVR4000 and WVR5000 Waveform Rasterizers System Integration Technical Reference Warning The service instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.

  • Page 5: Table Of Contents

    WVR4000 and WVR5000 Power and Environmental Specifications ........Connector Specifications..................WFM4000 and WFM5000 Rackmount Installation ............Installing a WFM4000 or WFM5000 into the Rack Adapter ..........Network Operation for the WFM and WVR ..............WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 6: General Safety Summary

    Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 7 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 8: Service Safety Summary

    Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 9: Environmental Considerations

    Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Perchlorate Materials. This product contains one or more type CR lithium coin cell batteries. According to the state of California, CR lithium coin cells are classified as perchlorate materials and require special handling.
  • Page 10 Environmental Considerations WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 11: Preface

    The following tables list related user documents for the products discussed in this document. These tables also indicate whether the document is printed, and whether the PDF of the document is available only on the Tektronix Web site (www.tektronix.com) or also on the Product Documentation CD that accompanies the printed Quick Start Guide Reference.
  • Page 12 Provides servicing information for the instrument and is intended only for qualified service personnel. Declassification and 071-2450-XX Provides declassification and security Security Instructions procedures for users needing information on eliminating and/or securing instrument memory. viii WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 13: Related Reference Documents

    Related Reference Documents The following table lists related reference documents. The table also indicates whether the PDF of the document is available only on the Tektronix Web site (www.tektronix.com) or also on the Product Documentation CD that accompanies the printed Quick Start Guide Reference.
  • Page 14 Preface WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 15: System Integration

    WVR products. NOTE. You can locate copies of some of the illustrations from this document on the Tektronix Web site (www.tektronix.com) and on the Product Documentation CD. Figure 1: WFM front panel Figure 2: WVR front panel WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 16 System Integration Figure 3: WFM rear panel Figure 4: WVR rear panel WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 17: Installation Considerations

    Terminations for loop-throughs on SDI or reference connectors in end-of-link setups must be 75 Ω and DC coupled (good return loss extends to DC). An appropriate termination would be a 75 Ω End of Line terminator, Tektronix part number 011-0163-XX.

  • Page 18: Wfm4000 And Wfm5000 Power And Environmental Specifications

    To prevent intermittent signal connections, do not use connectors or terminators with the smaller diameter center pins. WFM4000 and WFM5000 Power and Environmental Specifications These instruments operate from an AC line frequency of 50 or 60 Hz, over the range of 100-240 Volts, without the need for configuration, except the power cord.
  • Page 19 System Integration The following table lists the power and environmental specifications for installing the WFM4000 and WFM5000 instruments. Refer to the Specifications and Performance Verification document on the Product Documentation CD for additional information on power and environmental requirements. Table 1: WFM4000 and WFM5000 power and environmental specifications...

  • Page 20: Wvr4000 And Wvr5000 Power And Environmental Specifications

    457.2 mm (18.1 in) Weight 1.7 kg (3 pounds 12 ounces) Shipping 3.63 kg (8 lbs), approximate Required None Clearances Bottom None Left side None Right side None Front None Rear 152.4 mm (6 in) WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 21: Connector Specifications

    Belden 8281 at 270 Mb/s With 1/SQRT(f) characteristic at 1/2 of serial rate Cable Loss Accommodation: HD 0 to 20 dB attenuation Equivalent to approximately 80 m of Belden 8281 at 1.485 Gb/s Typical performance to 110 m WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 22 Input Type BNC, passive loop-through, 75 Ω compensated Input Level -6 to +6 dB Maximum Input Voltage Level ± 5 V, DC Maximum Absolute Input Voltage ± 5 V, DC WFM4000, WFM5000 WVR4000, WVR5000 WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 23 Table 5: AES digital audio connector specifications Connector Characteristic Description Input Type BNC, 75 Ω terminated, unbalanced (meets requirements of AES 3-ID and SMPTE 276M-1995) Input Amplitude Range 0.1 V to 2 V WFM4000, WFM5000 WVR4000, WVR5000 WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 24 Table 7: DVI connector specifications for the WVR products Connector Characteristic Description Output Connector DVI DSUB Output Levels Selectable for 0.7 V or 1 V for RGB signals; fixed 5 V for H and V sync signals WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 25 USB connector. Table 10: USB connector specifications for the WFM and WVR products Connector Characteristic Description Type Host Speed Complies with USB 1.1 Full Speed Specification (12 Mb/s) WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 26: Wfm4000 And Wfm5000 Rackmount Installation

    System Integration WFM4000 and WFM5000 Rackmount Installation To install a WFM4000 or WFM5000 in a rack, you must use the WFM50F02 or WFM50F03 rack adapter kit. This rack is designed to house two half-rack instruments side-by-side in a rack. To accommodate different products, three types of sleeves are available. See the instructions that come with the rack adapter kit for the proper sleeve combination for your instrument.
  • Page 27 System Integration Figure 5: Rack adapter dimensions WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 28 System Integration Figure 6: Rear bracket guide dimensions WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 29 System Integration Figure 7: Sleeve dimensions WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 30 7. Secure the guide bracket to the rack adapter, using the nut bar and attaching hardware. 8. Tighten all attaching screws that were left loose in the previous steps. WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 31 System Integration Figure 8: Adjusting the position of the handles WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 32: Installing A Wfm4000 Or Wfm5000 Into The Rack Adapter

    System Integration Installing a WFM4000 or WFM5000 into the Rack Adapter With the rack adapter already installed in the rack, install the instrument into the rack adapter as follows: CAUTION. When working with instruments that are not enclosed in a chassis, you must observe static precautions.
  • Page 33 Do not force the instrument into the cabinet. Keying pins on the tabs at the rear of the sleeves are designed to work only with the correct instrument. Attempting to force an instrument into the sleeve may damage the tabs. WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 34 (See Figure 9.) The screws do not attach to the rack adapter; this sleeve is held in place by the button on the inside front of the rack adapter. WFM4000, WFM5000, WVR4000, WVR5000 System Integration...

  • Page 35: Network Operation For The Wfm And Wvr

    Web Browser Operation You can connect to an instrument installed on an Ethernet IP network without installing any software and using only a Web browser. Using the Web browser, you can perform the following functions: WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
  • Page 36 For example, the IP address 124.161.038.092 should be entered as follows: 124.161.38.92 3. The Web browser will display the instrument Web page. To make a selection, click the desired link. WFM4000, WFM5000, WVR4000, WVR5000 System Integration...
