External Reference Waveform Display; Figure 25: External Reference Waveform (Tri-Level Sync Signal) - Tektronix WFM5200 User Manual

Display Information

External Reference Waveform Display

Elements of the External
Reference Waveform
Display
External Reference
Waveform Display Pop-Up
Menu
54
The External Waveform Display is accessed from the OTHER button. This
display allows you to check the external reference signal integrity, including
its shape and amplitude. This display is independent of the input video signal.
(See Figure 25.)
The input of external reference waveform is through the EXT REF connector on
the rear panel of the instrument.

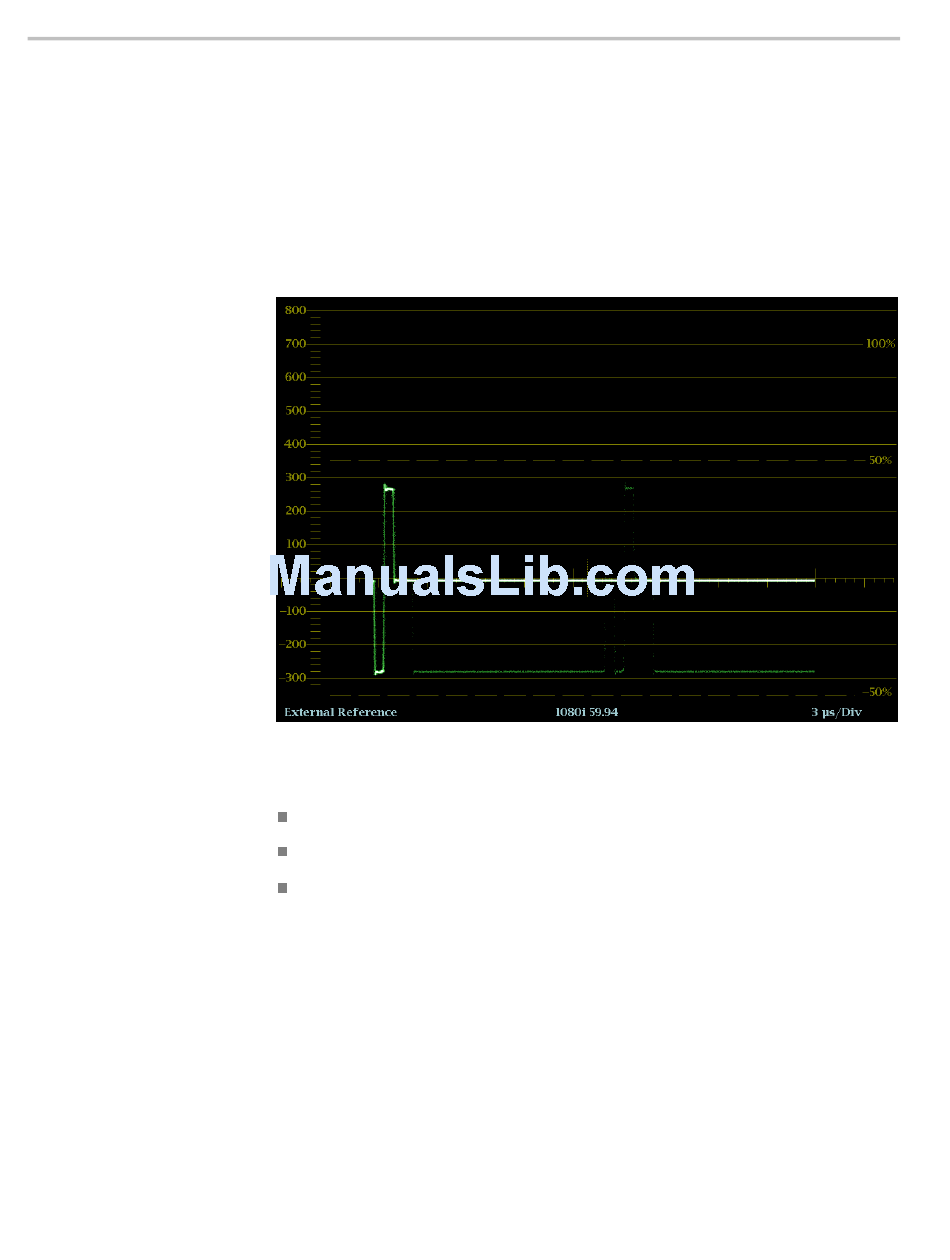

Figure 25: External reference waveform (tri-level sync signal)

Display: Shows the display type as External Reference.
Y-axis units: Shows the y-axis units in volts/divisions.
X-axis units: Shows the x-axis in milliseconds/divisions.
The OTHER pop-up menu allows you to select Center Waveform and press the
SEL button to center the waveform.
WFM5200 Waveform Monitor User Manual
