Capture

WFM5200 Waveform Monitor User Manual
6. Read the cursor measurement in the Cursors readout.

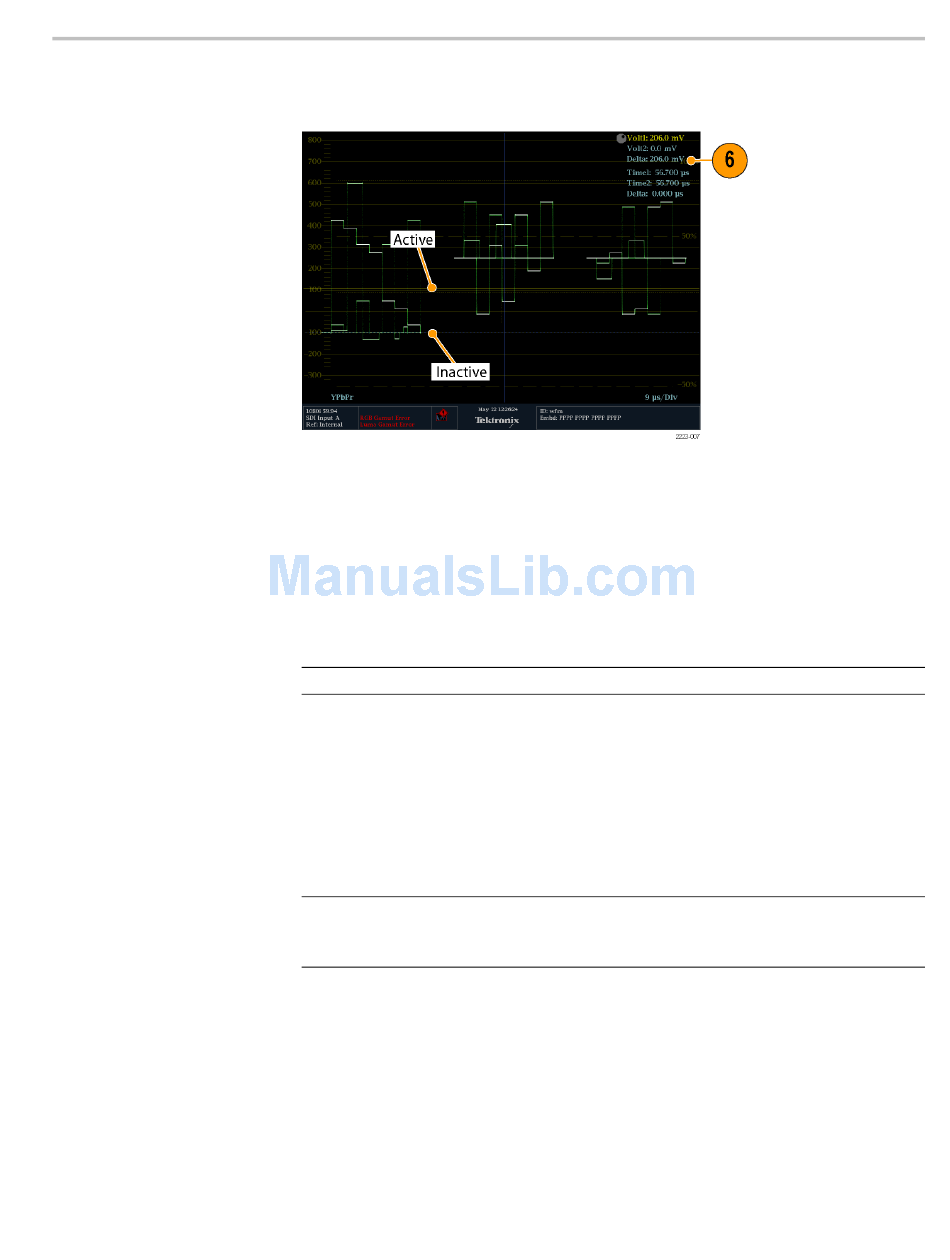

Figure 42: Using cursors in a waveform display
Use the CAPTURE button to freeze a single tile, or all tiles simultaneously,
saving it to memory while other displays and information continue to be live.
Frozen information is lost when the power cycles.
NOTE.
Freeze information can be downloaded from the instrument Web page.
Capture freeze works in both four-tile and full-screen modes, however, if you
freeze a trace in 4-tile mode, the image will not be shown if you go to full-screen
mode. The image will still be available if you go back to 4-tile mode. Likewise,
if you freeze a waveform image in a tile and then switch the tile to another
measurement such as Vector, the frozen waveform image is hidden. If you then
change the tile back to waveform, the image will reappear.
NOTE.
For waveform displays, the captured image is shown in a different color to
distinguish it from the live image. For all displays, the instrument continues to log
error status in the background while the display is captured.
Functions
87
