Figure 4: Changing From 4-Tile To Full-Tile View; Figure 5: Status Bar - Tektronix WFM5200 User Manual

Getting Acquainted with Your Instrument
Status Bar
16
You can change from 4-tile to full-screen mode two ways: press and hold the
Display Select button until the view changes; or press the MAIN button, select
Tile Display from the pop-up menu, and then press the SEL button to select
FULL. (See Figure 4.)

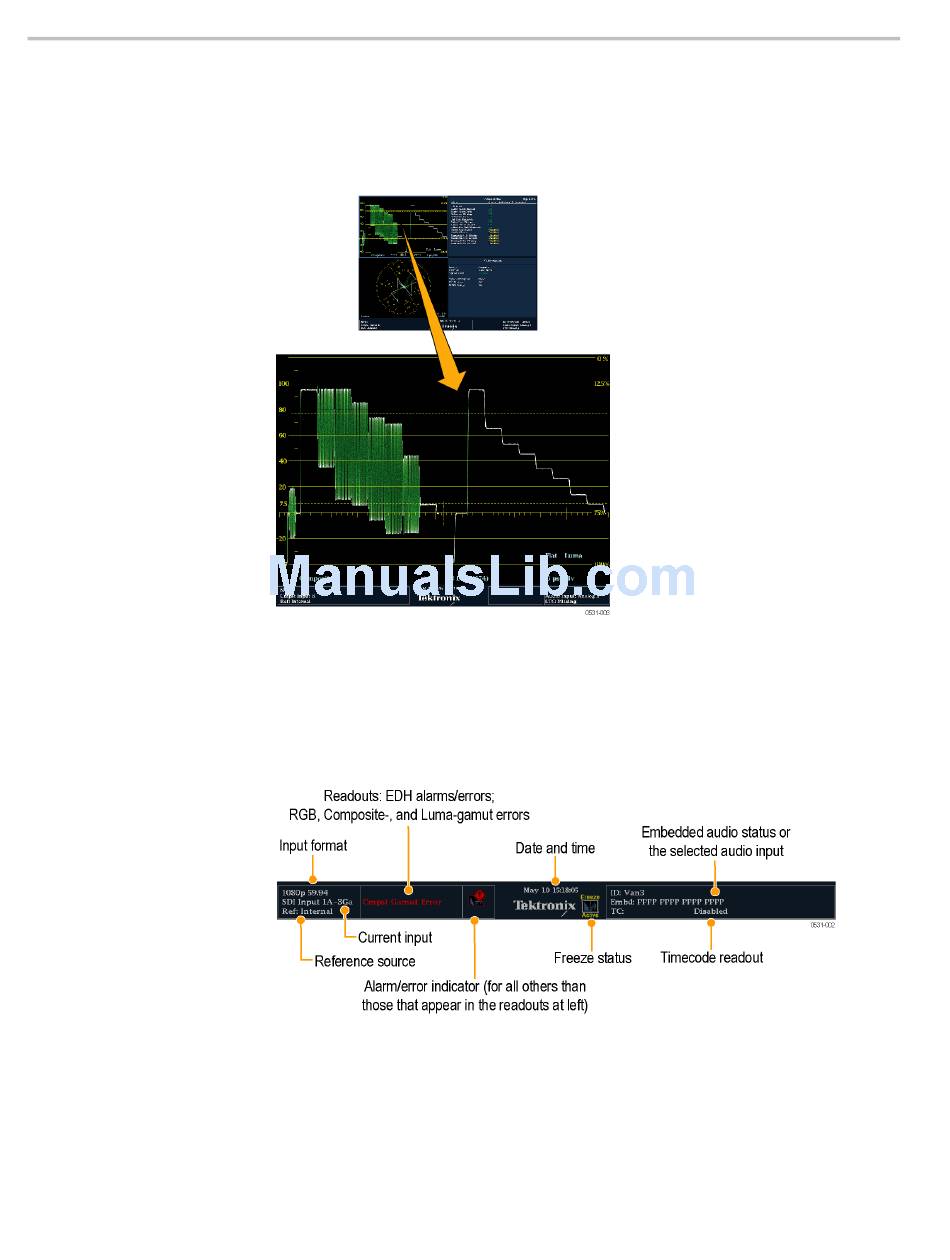

Figure 4: Changing from 4-tile to full-tile view

The Status Bar is located on the bottom of the instrument display and shows
instrument status, the type of signal being monitored, any alarms associated with
that signal, and other information. (See Figure 5.)

Figure 5: Status bar

WFM5200 Waveform Monitor User Manual
