Functions

Line Select

88
Line Select allows you to select lines in the waveform display. This function is
accessible from the front panel of your instrument by pressing the LINE SEL
button.
1. Select the tile containing the display for which you want to set Line Select
Mode.
NOTE.
Line Select Mode can only be active on one tile at a time, but the line
select brightup cursor does appear in other tiles and moves as you select lines
in the active tile.
2. Press the LINE SEL button to toggle Line Select Mode on or off. When on,
the tile displays the selected line information only.
3. Press the left or right arrow key to select F1 (field 1), F2 (field 2), F3 (field3),
F4 (field 4), or All.
4. The line and field information will appear at the bottom of the display screen.
5. Turn the GENERAL knob to select the line you want to view.

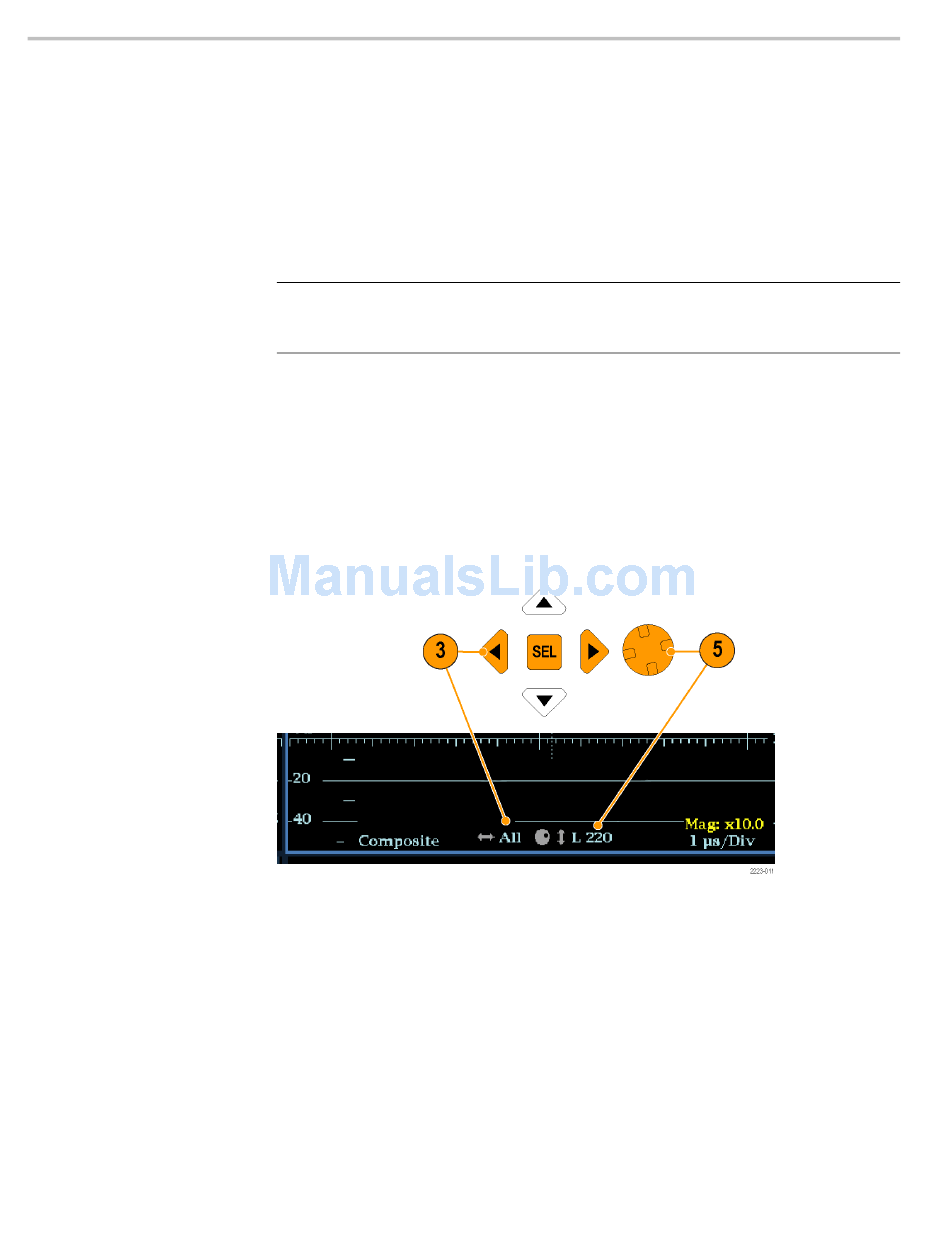

Figure 43: Navigating line selection
