Using a Programming Console

8-1

Using a Programming Console

8-1-1

Connecting the Programming Console

CQM1H-PRO01-E
CQM1-PRO01-E
CQM1-PRO27-E
Note
160
This section provides information on connecting and using a Programming
Console. Refer to 9-3 Programming Console Operation Errors for details on
errors that might occur during Programming Console operations.

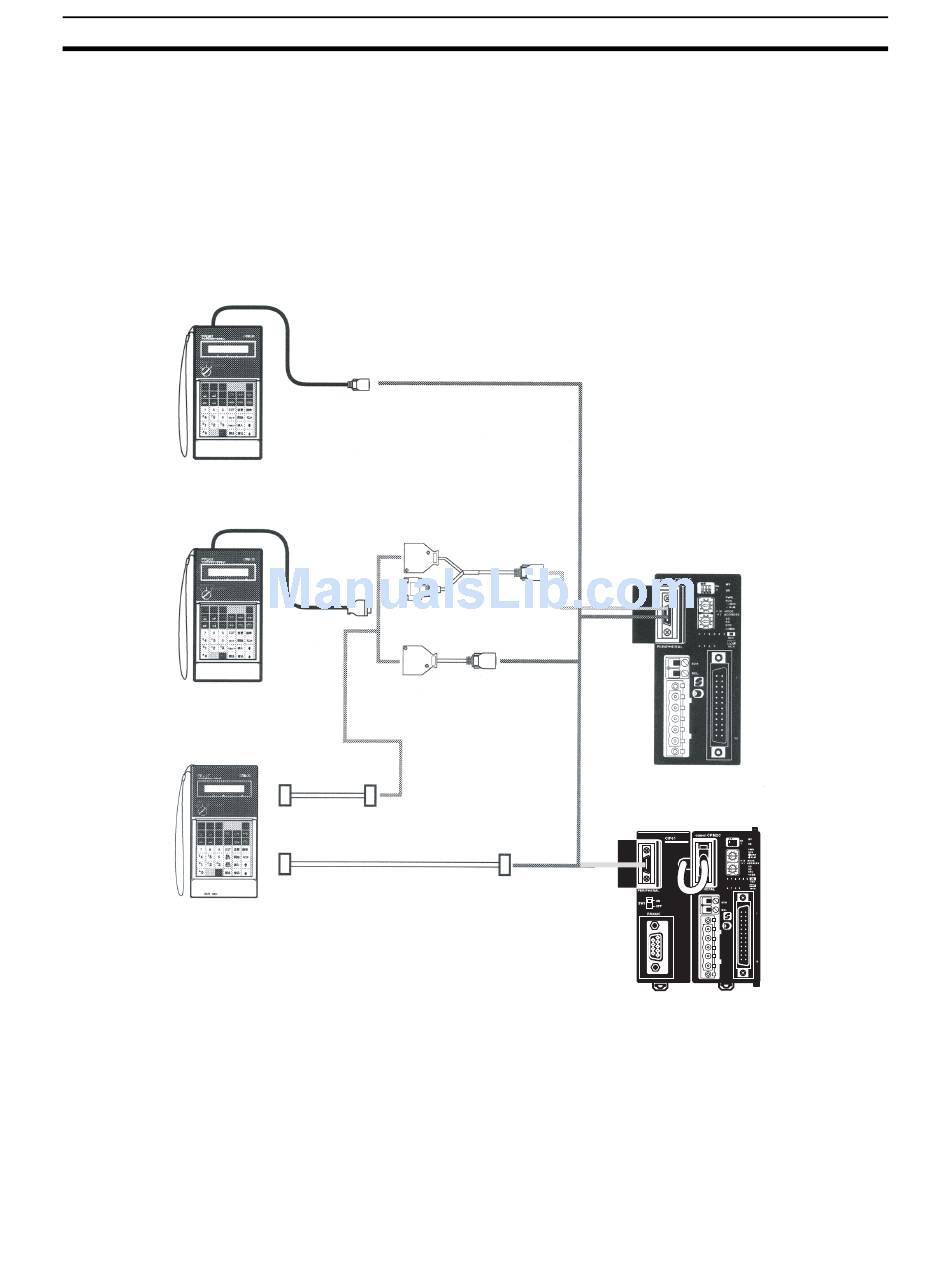

The following diagram shows how a CQM1H-PRO01-E, CQM1-PRO01-E, or
C200H-PRO27-E Programming Console can be connected to the communi-
cations port on the CPM2C-S CPU Unit.
A CQM1H-PRO01-E Programming Console
can be connected directly.
Peripheral port
CPM2C-CN111
Connecting Cable
CS1W-CN114
Connecting Cable
C200H-CN222 or
C200H-CN422
Connecting Cable
CS1W-CN224 or
Peripheral port
CS1W-CN624
Connecting Cable
A C200H-PRO27-E Programming Con-
sole can be connected directly to the
CPU Unit using a CS1W-CN224 or
CS1W-CN624 Connecting Cable.
1. Connect the Programming Console to the peripheral port. A Programming
Console cannot be connected through the RS-232C port on a CPM2C-
CN111 Adapter.
2. If the Programming Console's cable is disconnected and then reconnected
within 2 seconds, it won't be necessary to reenter the password and the
previous display status will remain. In some cases, it won't be necessary
to reenter the password if the Programming Console's cable is disconnect-
CPM2C-S CPU Unit
CPM2C-S CPU Unit
CPM2C-CIF01-V1
