Using a Programming Console
Different Keys
Mode Switch
Contrast Control
Buzzer Volume

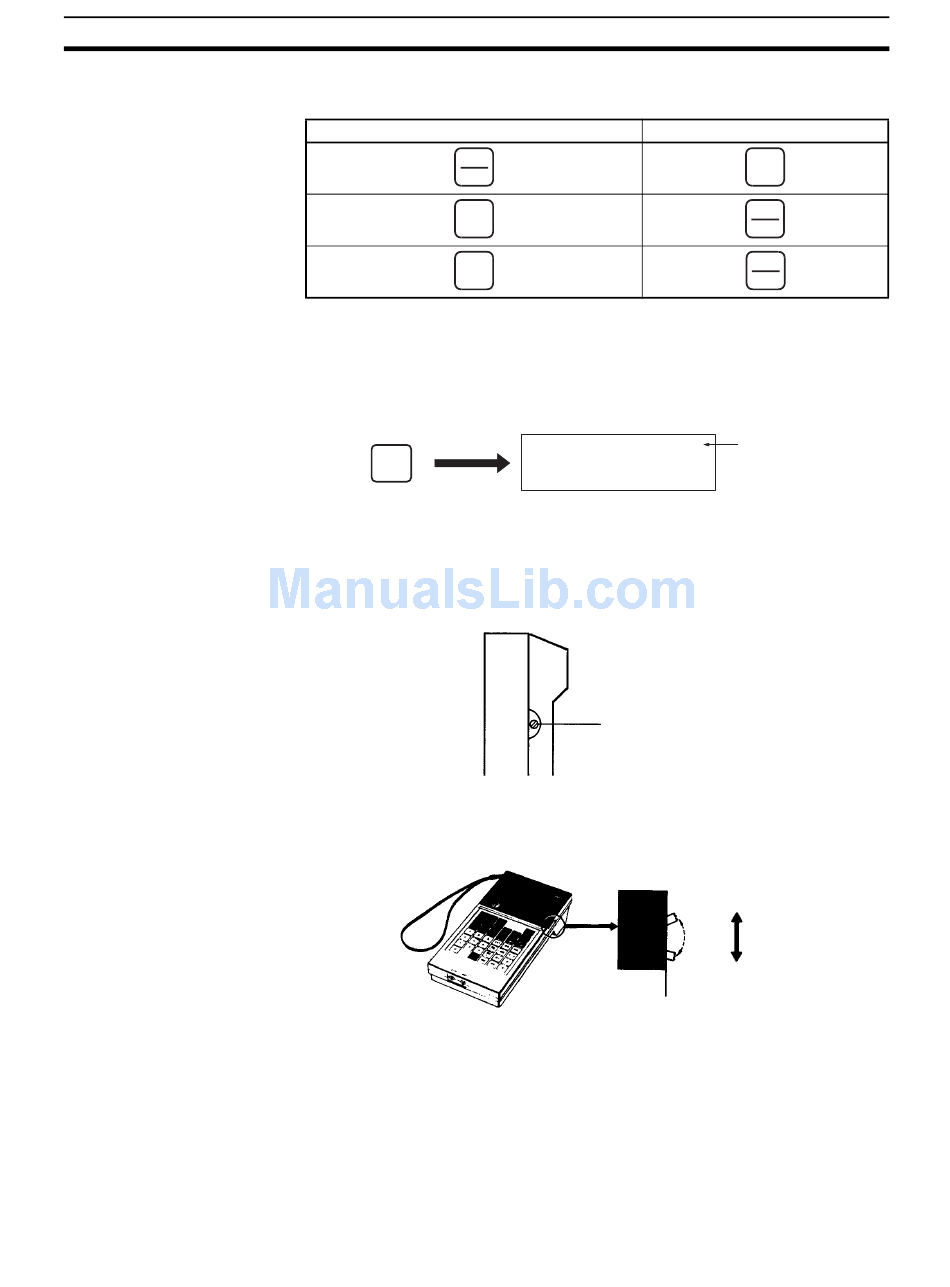

The following keys are labeled differently on the CQM1-PRO01-E and the
C200H-PRO27-E, but the operation of the keys in each pair is identical.
CQM1-PRO01-E and CQM1H-PRO01-E Keys
Note To specify the AR area, use SHIFT and HR Keys for the C200H-PRO27-E and
use SHIFT and AR/HR Keys for the CQM1-PRO01-E/CQM1H-PRO01-E.
A shift symbol will be displayed in the upper-right corner of the screen when
the Shift Key is pressed. The shift input can be cleared by pressing the Shift
Key again.
SHIFT
The mode switch controls the CPM2C-S' operating mode. The key can be
removed when the switch is set to RUN or MONITOR but it cannot be
removed when the switch is set to PROGRAM.
The display contrast can be adjusted with the control on the right side of the
Programming Console.
The C200H-PRO27-E's buzzer volume can be adjusted with the lever on the
right side of the Programming Console. The buzzer volume cannot be
adjusted on the CQM1-PRO01-E and CQM1H-PRO01-E.
Note The buzzer volume can be turned on and off with a key operation. See 8-2-6
Buzzer Operation for details.
AR
HR
SET
RESET
Contrast control
C200H-PRO27-E
Section 8-1
C200H-PRO27-E Keys
HR
PLAY
SET
REC
RESET
^
Shift input
symbol
Low volume
High volume
163
